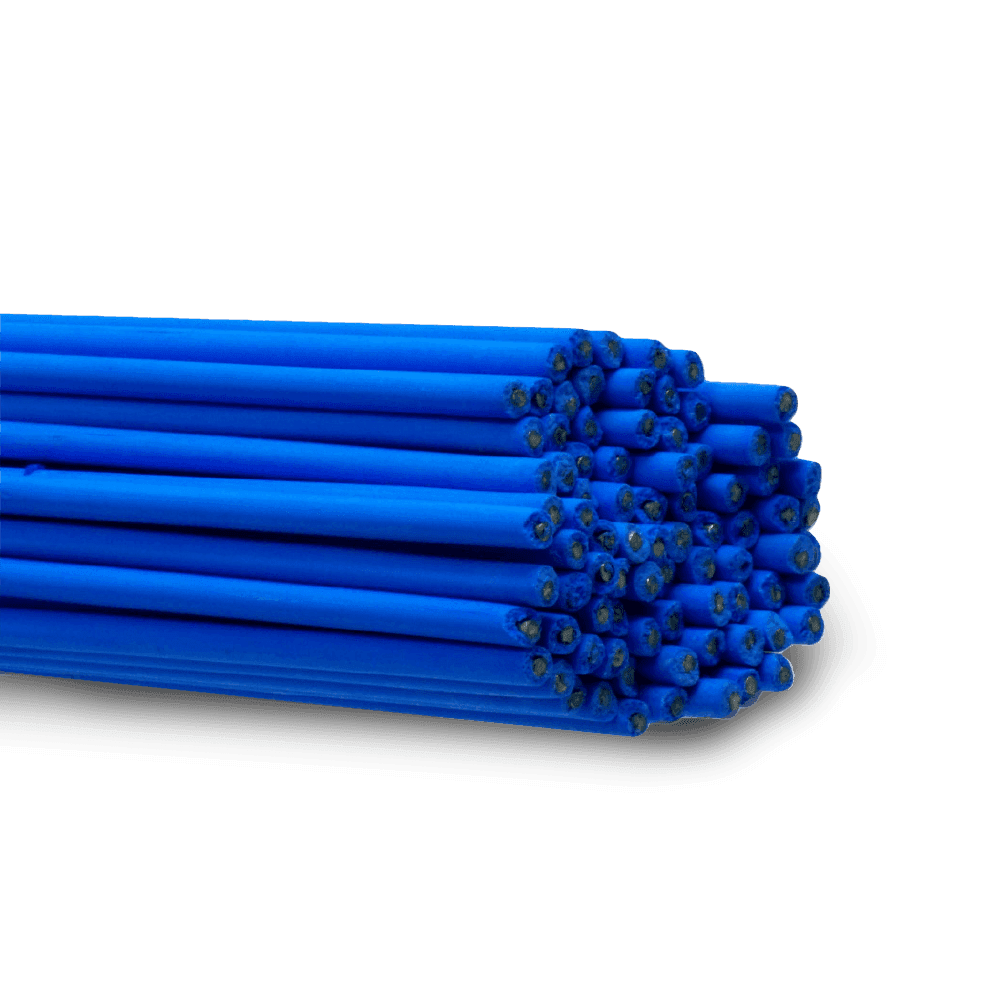

Cadmium-Free silver brazing rod with an extruded flux coating that makes it easy to use due to the elimination of pre-fluxing joints. Low melting free flowing alloy rod with excellent wetting properties. Used extensively in the food and dairy industries where cadmium must be avoided and provides a close colour match to stainless steel. Can be used on ferrous and non-ferrous alloys, ideal for brazing steel and other ferrous metals

Classification:
AWS: A5.8 BAg-7, EN1044 AG102

Typical Rod Analysis:
Ag:56.0%   Cu:22.0%   Zn:17.0%   Sn:5.0%

Typical Weld Deposit Properties:

Melting Range                         662-650°C
Operating Temperature        650°C
Weld Metal Density                9.5 g/cm³
Tensile Strength                    410N/mm²

Flux Coated Silver Brazing Alloy 56% – 1.6mm x 457mm – 1kg
