XA-MIG250WRZ-K

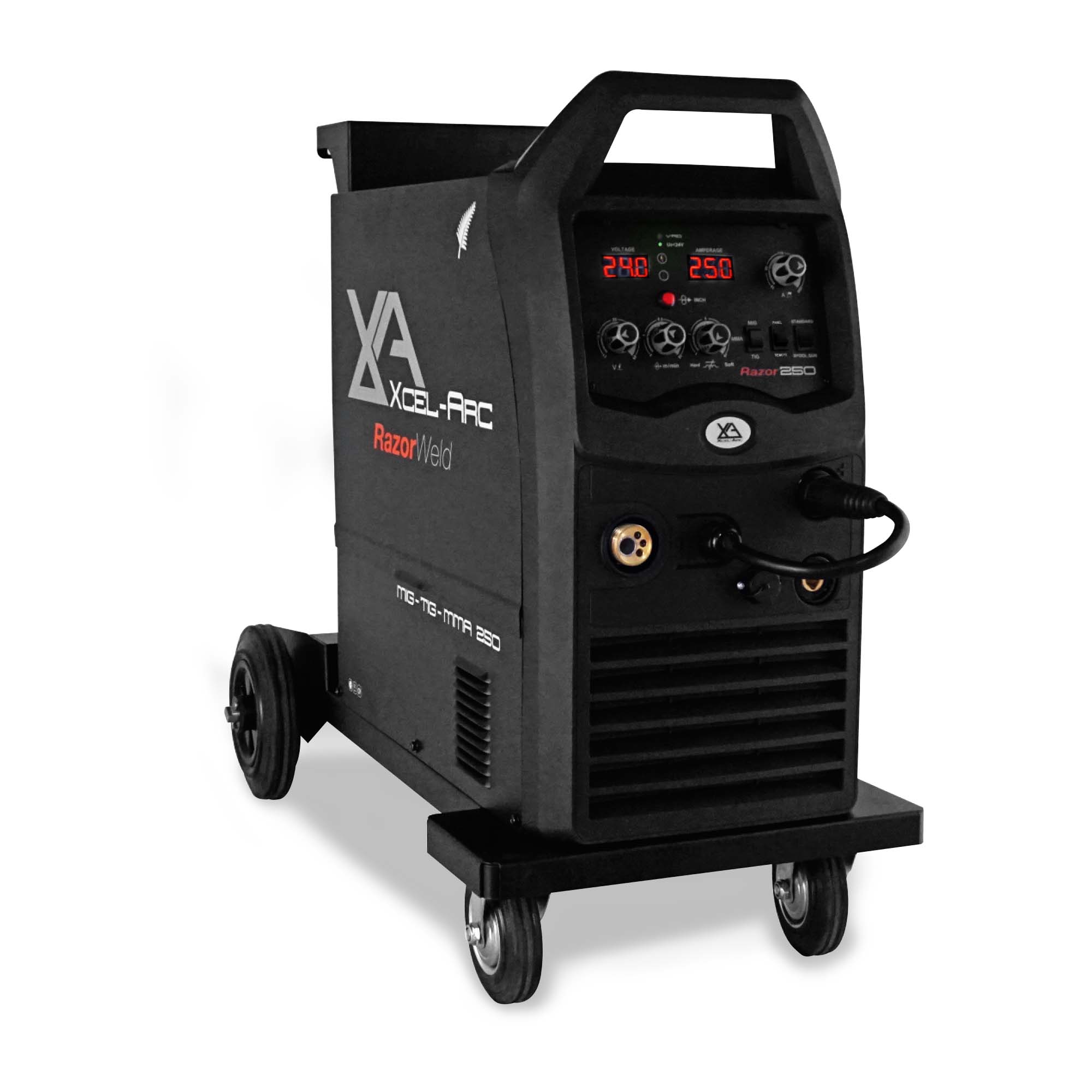

RAZORWELD™ 250 MIG/TIG/STICK Welder

The RAZORWELD™ 250 is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 250 is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ Work Shop series is designed for superior performance, offering the highest quality of welds from Xcel Arc’s range.

XA-MIG250WRZ-K

FIND A STORE

ADD TO WISHLIST

SINGLE-PHASE

240V Power

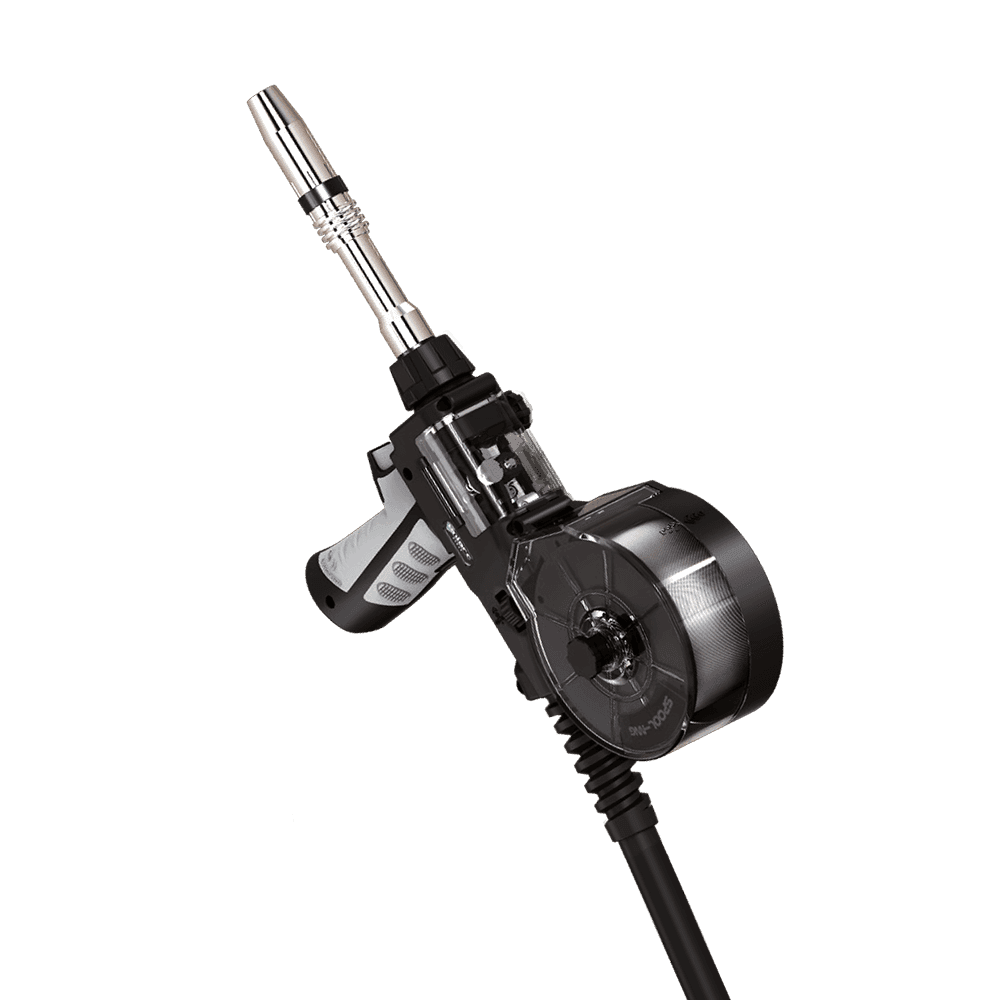

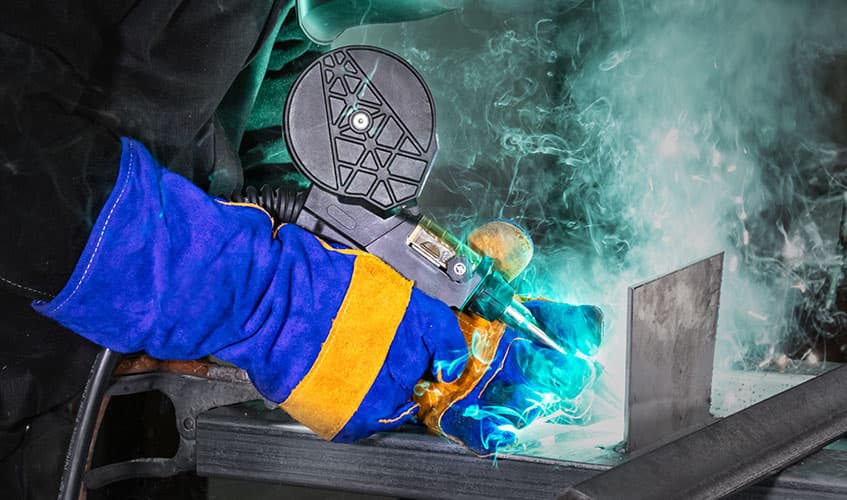

SPOOL GUN READY

For softer wires, such as Aluminium.

LARGE WIRE SPOOL CAPACITY

Fits 200mm & 300mm wire spools.

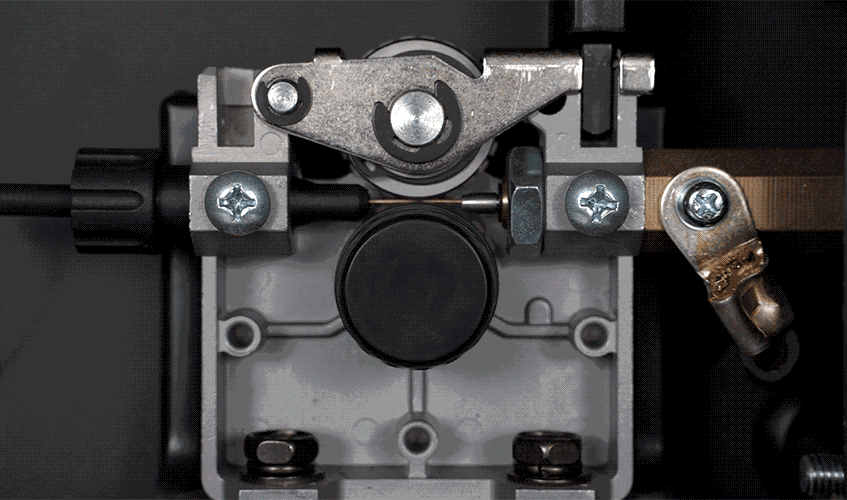

FOUR GEARED WIRE DRIVE

For smoothest wire feeding.

Product No: XA-MIG250WRZ-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

Single Phase (32 AMP Recommended) or 15 AMP

RATED INPUT POWER (kVA)

11.8

Ieff (A)

26.7

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.75

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

35% @ 250A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

35/25 (x1)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-220A

TIG DUTY CYCLE @ 40°C

35% @ 220A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-220A

STICK DUTY CYCLE @ 40°C

35% @ 220A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

12mm

Size & Weight

DIMENSIONS (mm)

900x400x785mm

WEIGHT (kg)

58kg

MACHINE FEATURES

WIRE DRIVE

2 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

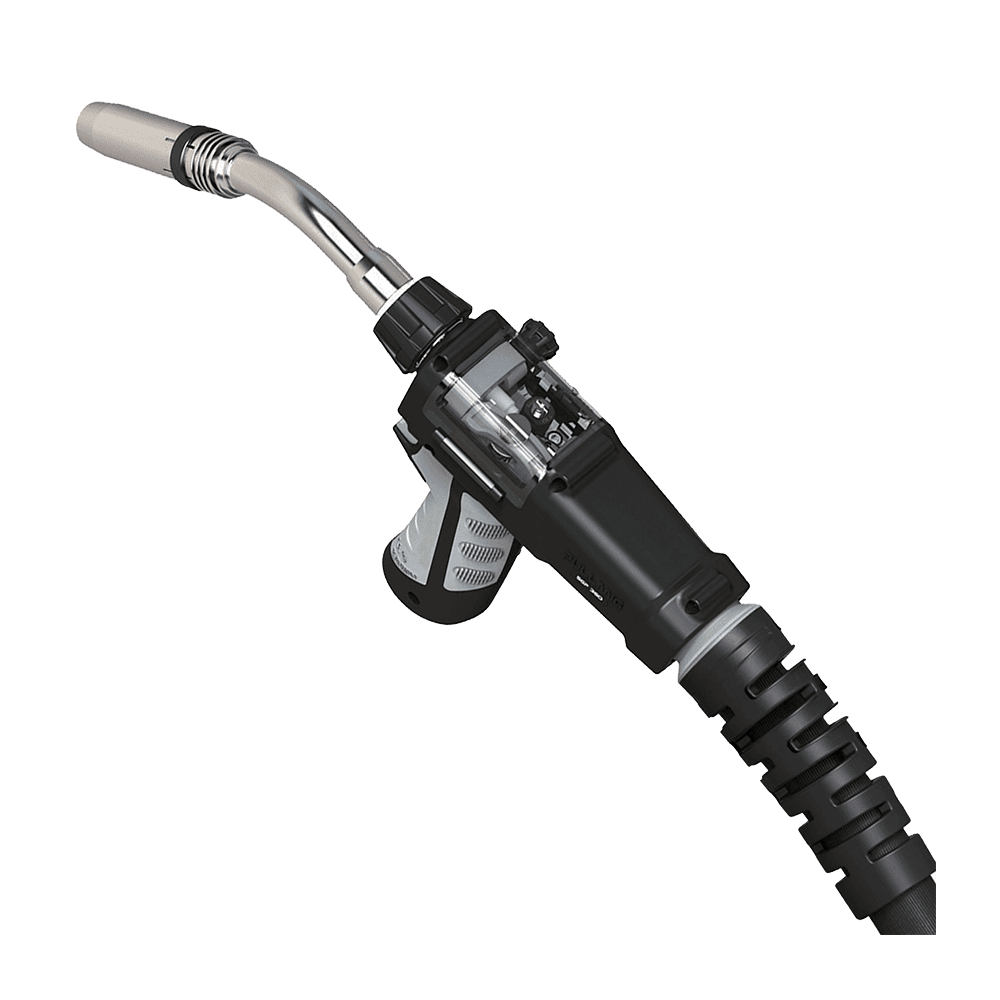

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

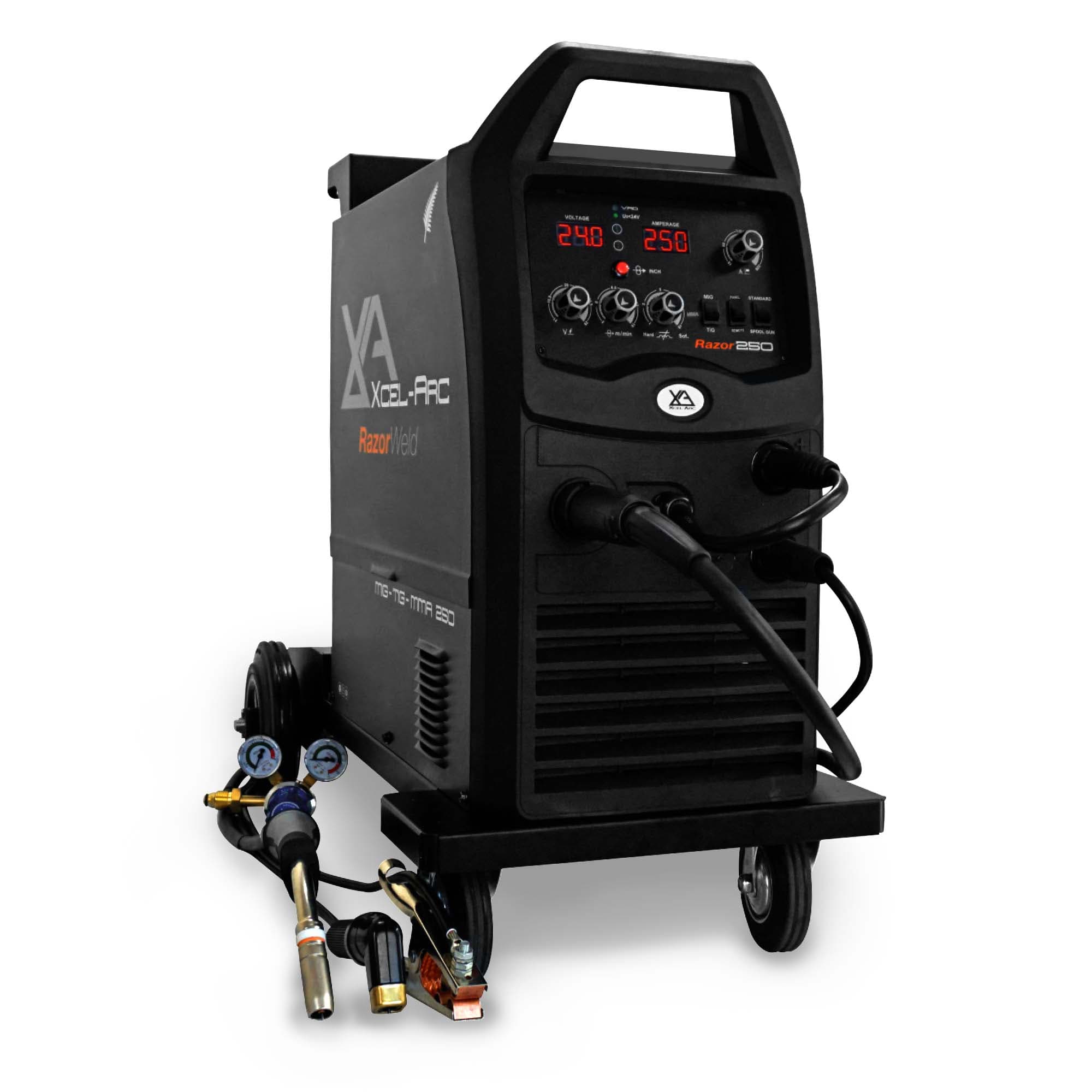

RAZORWELD™ 250 Compact MIG/TIG/STICK Welder
XA24 Mig Torch x 4m (including consumables)
Earth Lead & Arc Lead 25mm x 4m
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD 250WRZ Info Sheet

RAZORWELD 250WRZ Manual

Wire Feeder Drive Rollers

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
