XA-ARC180RZ-K

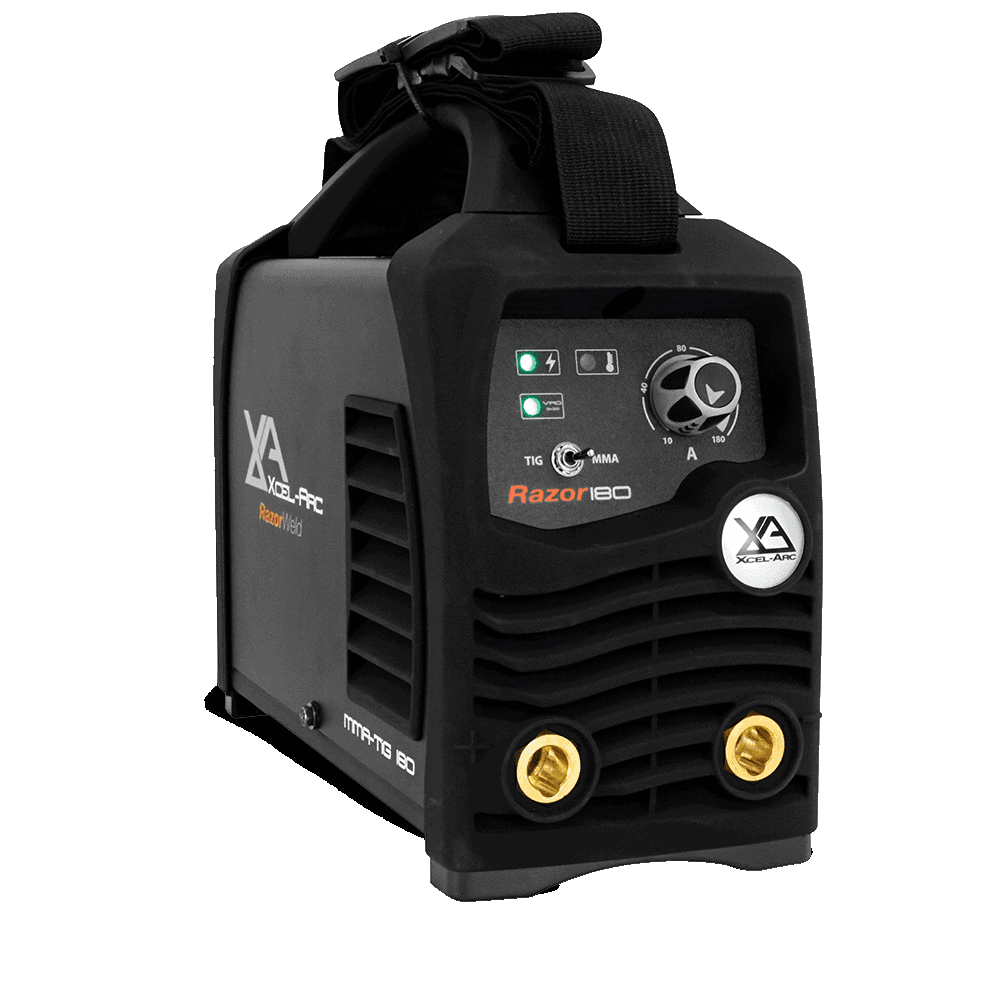

RAZORWELD™ ARC 180 STICK Welder

The RAZORWELD™ ARC 180 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

XA-ARC180RZ-K

FIND A STORE

ADD TO WISHLIST

15 AMP PLUG

Connect to a 15 AMP outlet.

DC LIFT ARC TIG

TIG welding functionality.

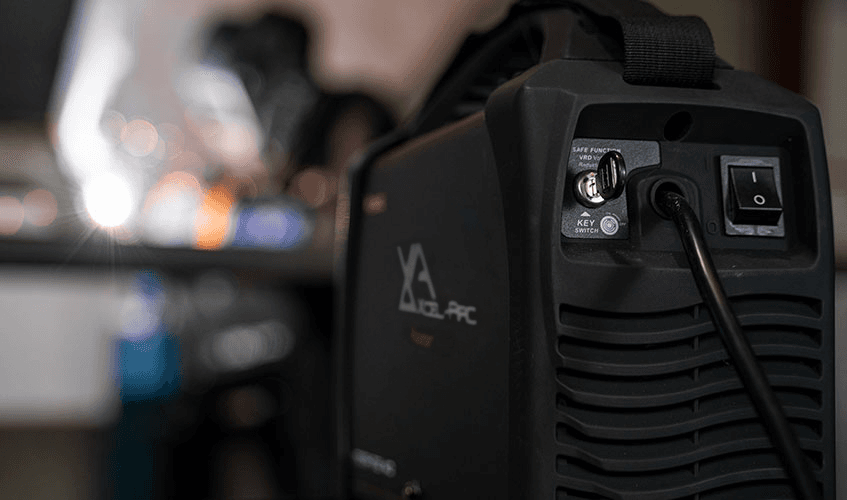

KEYABLE VRD SWITCH

Prevents Voltage overloading, protecting yourself and the machine.

THERMAL OVERLOAD PROTECTION

Prevents machine from exceeding a safe operating temperature.

Product No: XA-ARC180RZ-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

7.2

Ieff (A)

14.0

RATED OUTPUT

10-180A

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-180A

TIG DUTY CYCLE @ 40°C

20% @ 180A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-180A

STICK DUTY CYCLE @ 40°C

20% @ 180A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

313x250x130mm

WEIGHT (kg)

4.7kg

MACHINE FEATURES

VRD

Yes (Keyable)

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

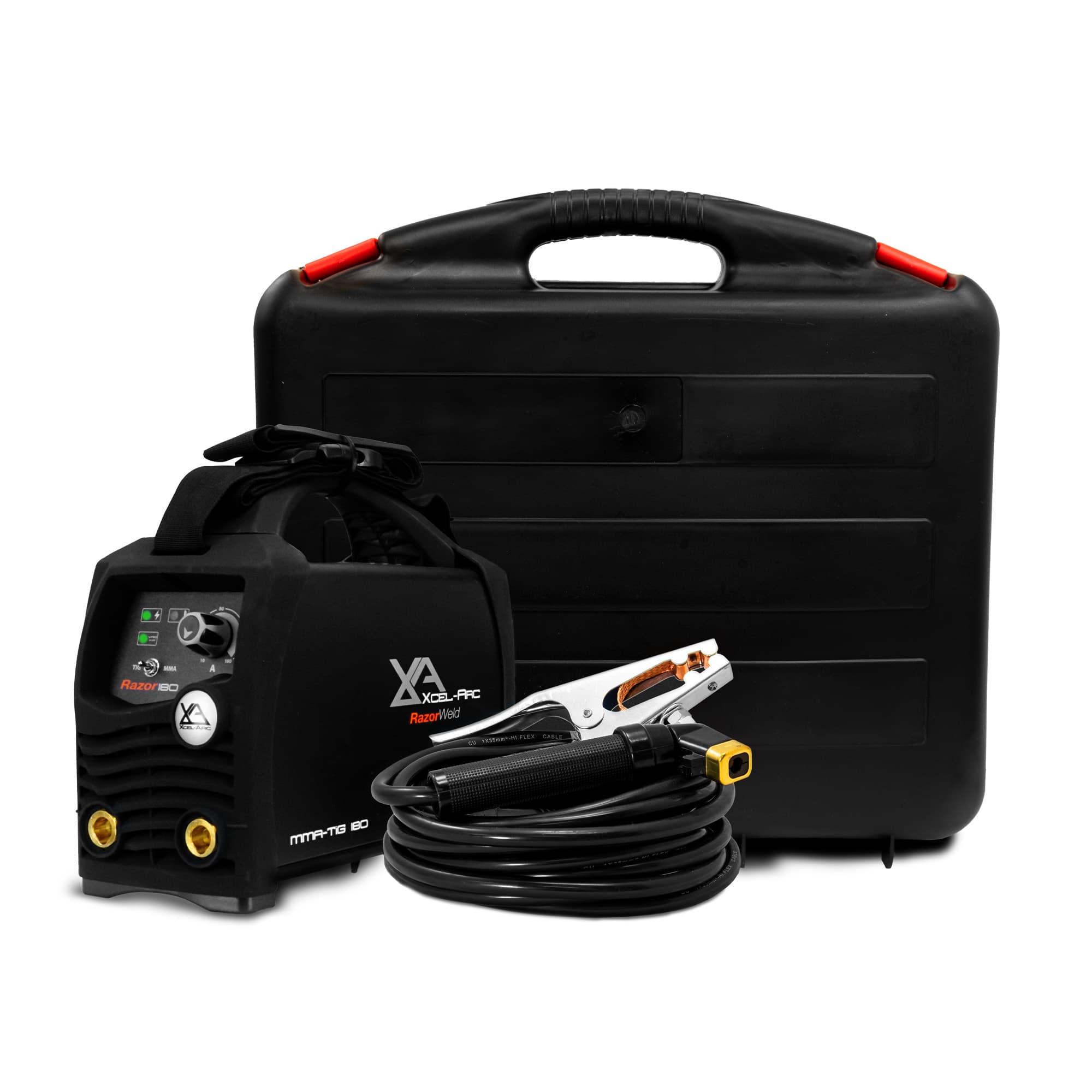

RAZORWELD™ ARC 180 STICK Welder
4m Twist Lock Electrode Holder
300 Amp Earth Clamp & Lead
Lightweight Heavy Duty PVC Carry Case
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD ARC 180 Info Sheet

RAZORWELD ARC 180 Manual

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
