XA-MIG250DRZ-K

RAZORWELD™ 250 MIG/TIG/STICK Welder(Digital)

Looking for portability and performance? The RAZORWELD™ MIG250DRZ is the perfect match for welders needing powerful performance both in the workshop and on their worksite. With a spool gun connection – and a geared wire drive – the RAZORWELD™ MIG250DRZ is a must-have for the serious welder.

XA-MIG250DRZ-K

FIND A STORE

ADD TO WISHLIST

SPOOL GUN READY

For softer wires, such as Aluminium.

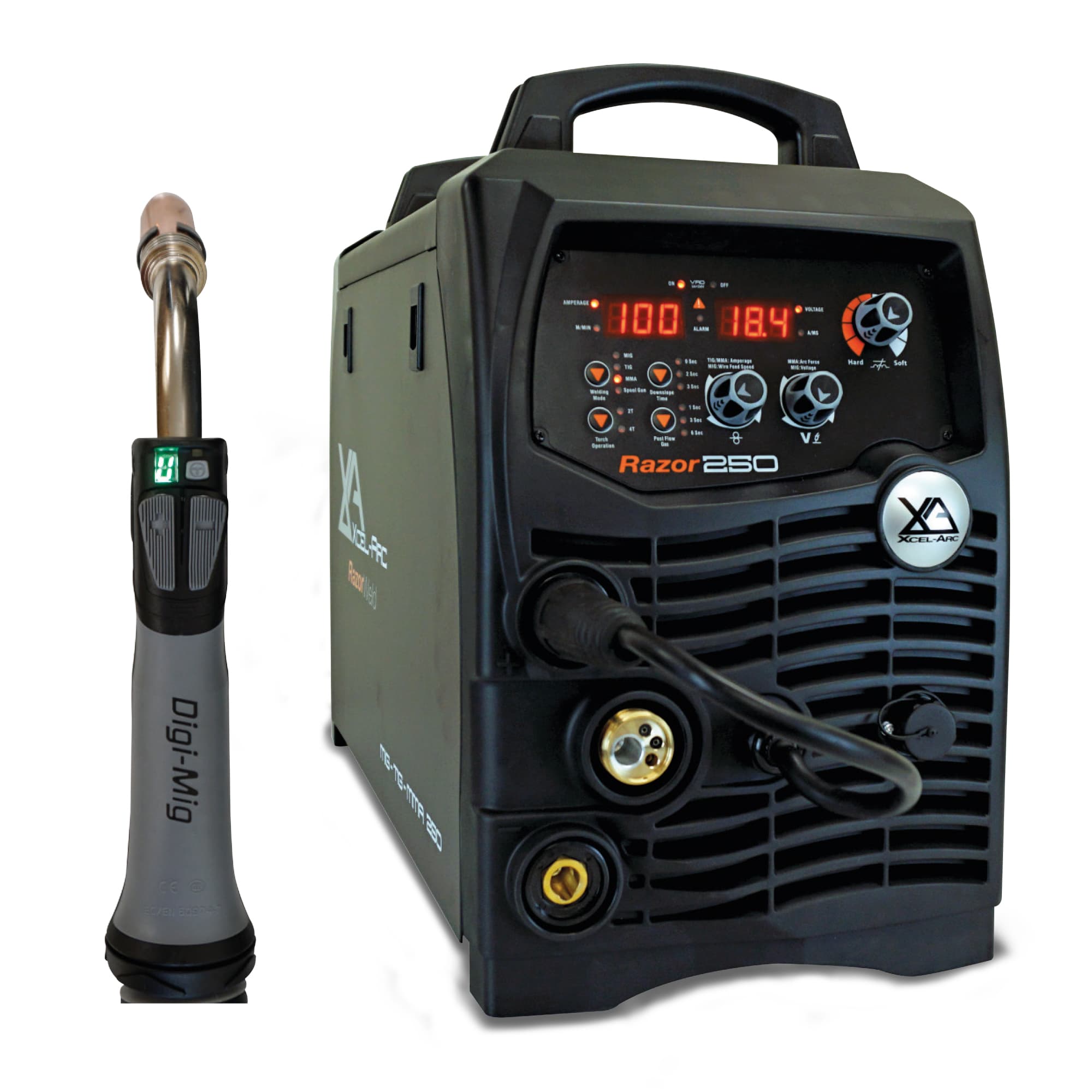

DIGITAL CONTROL INTERFACE TECHNOLOGY

With Digital Remote Control MIG Torch

LARGE WIRE SPOOL CAPACITY

Fits 200mm & 300mm wire spools.

GEARED WIRE DRIVE

For smoother wire feeding.

Product No: XA-MIG250DRZ-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

Single Phase (32 AMP Recommended) or 15 AMP

RATED INPUT POWER (kVA)

10.8

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.72

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

30% @ 250A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-250A

TIG DUTY CYCLE @ 40°C

30% @ 250A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-250A

STICK DUTY CYCLE @ 40°C

30% @ 250A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

585x280x440mm

WEIGHT (kg)

35kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

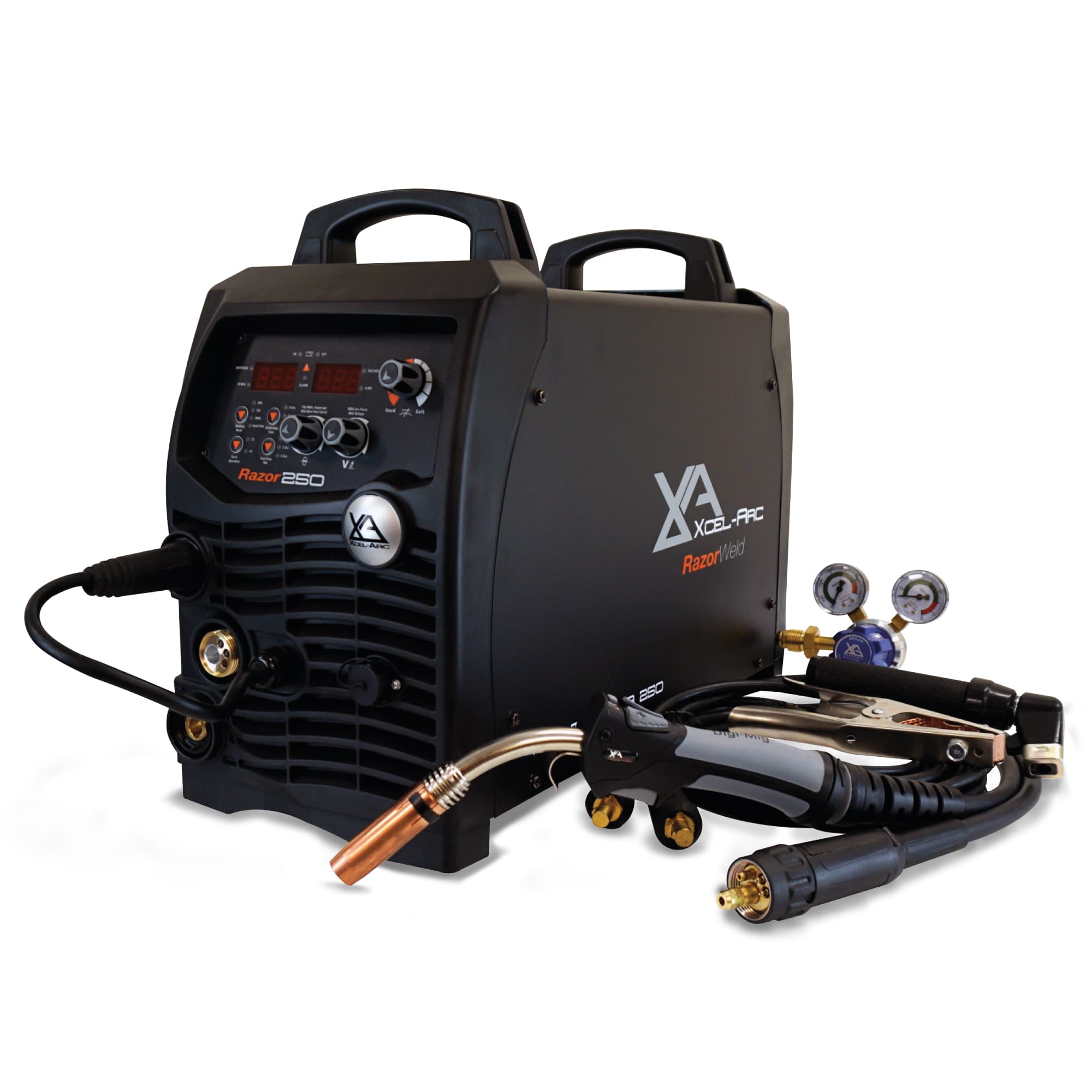

RAZORWELD™ 250DRZ MIG/TIG/STICK Welder
XA-DM26 Mig Torch x 4m
Earth Lead & Arc Lead 25mm x 4m
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR 250DRZ Info Sheet

RAZOR 250DRZ Manual

Wire Feeder Drive Rollers Spares

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
