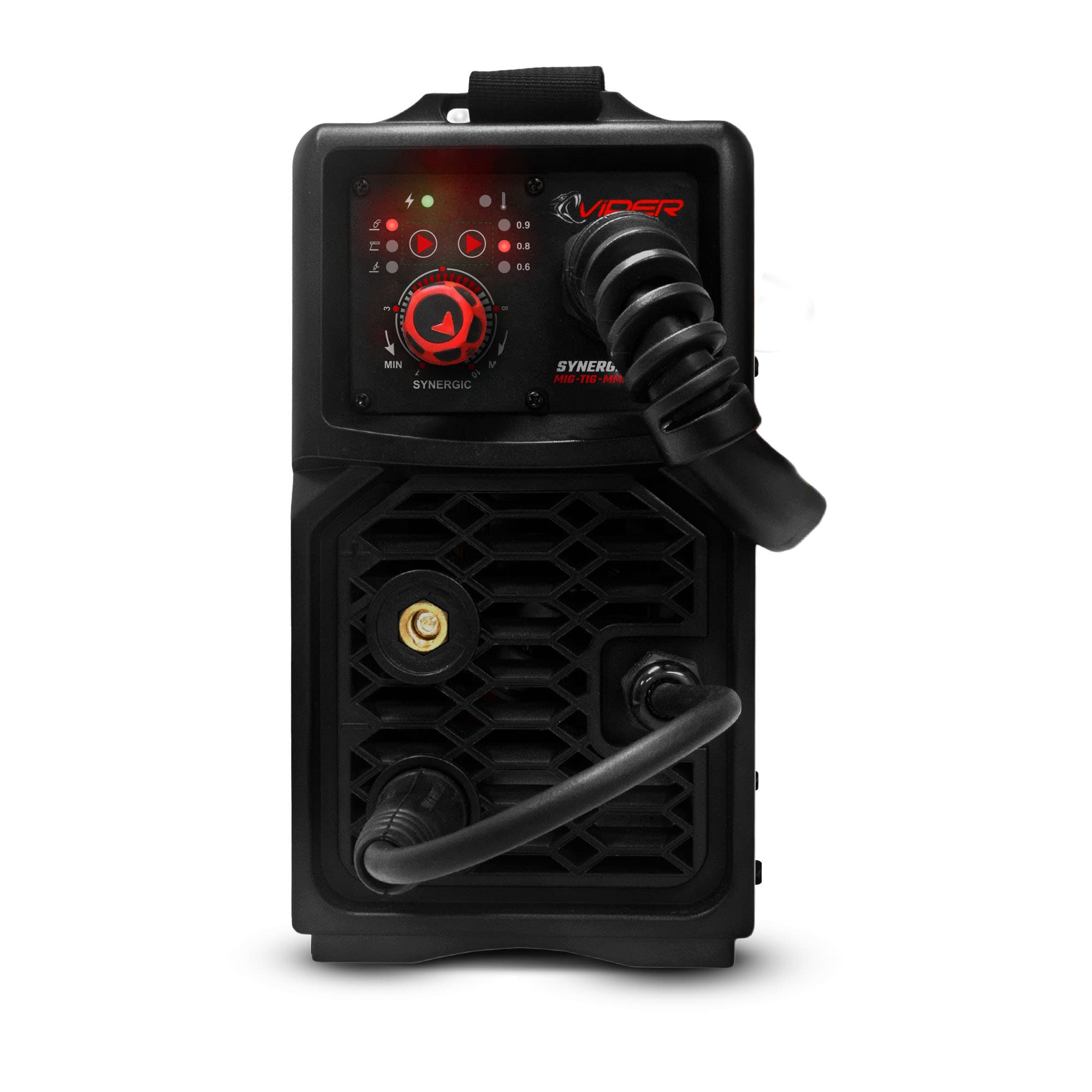

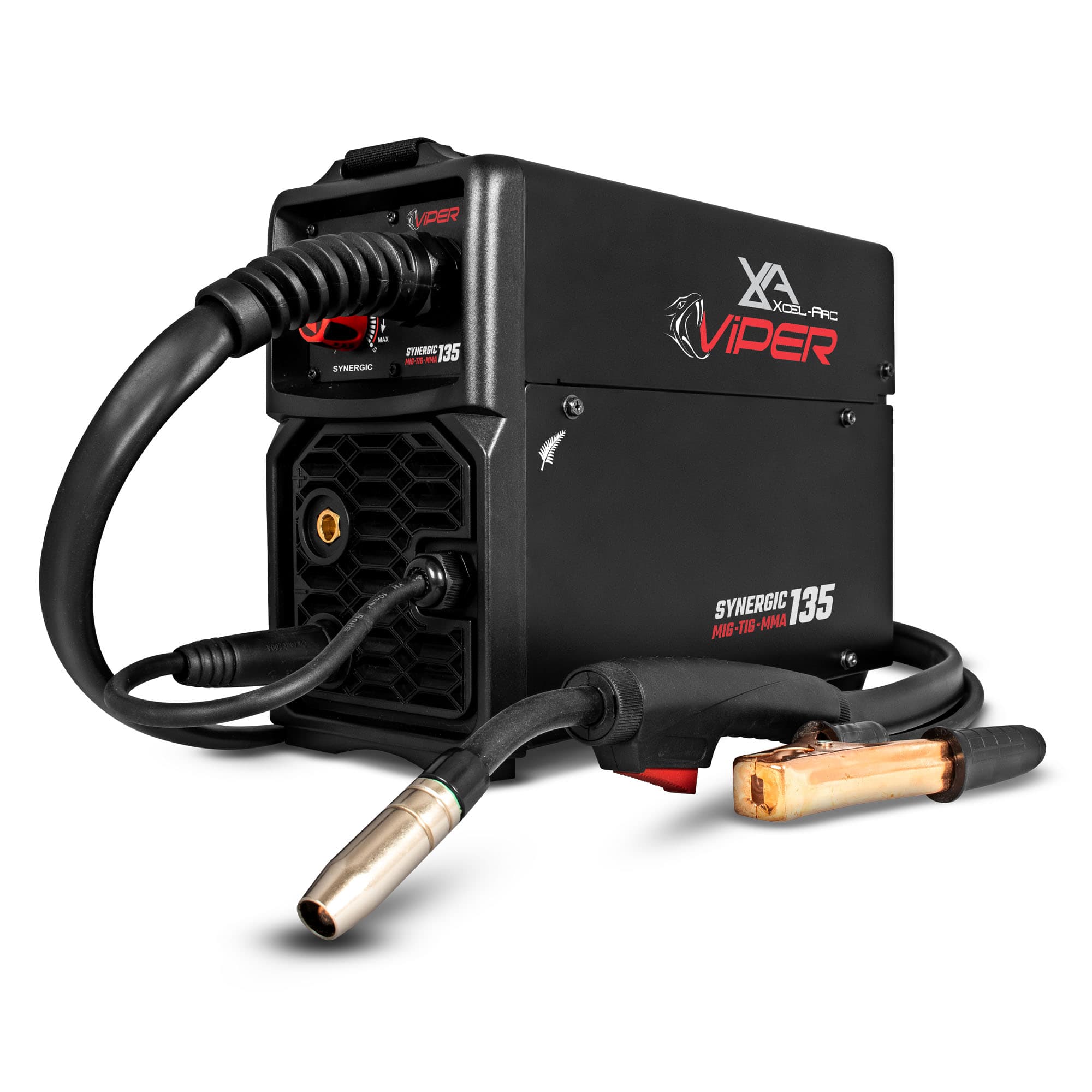

XA-MIG135V

VIPER™ 135 SYNERGIC MIG/TIG/MMA Welder

Welding has never been easier with the VIPER™ 135 SYNERGIC. Simply set your wire size, adjust the Synergic power knob and the VIPER™ does the rest! Running off a 10 AMP plug, this machine is perfect for small repairs and DIY welding projects.

The VIPER™ 135 SYNERGIC features MIG programs for 0.6mm, 0.8mm and 0.9mm wire. It can take Flux-Cored, Mild Steel and Stainless Steel MIG wires.

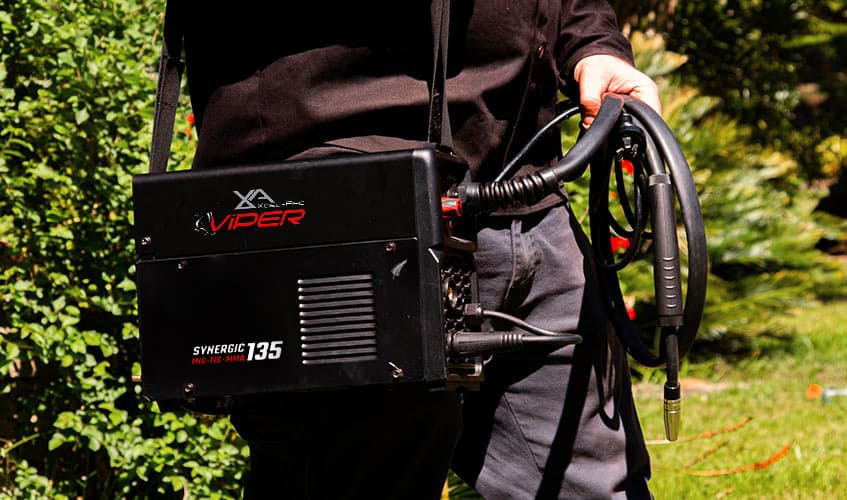

The built-in 10 AMP Plug makes this the perfect welder for your home workshop or out on the field. MIG, TIG or MMA (STICK), the VIPER™ 135 SYNERGIC does it all and you’ll be able to take it anywhere you need. Weighing just 5.2kg.

XA-MIG135V

FIND A STORE

ADD TO WISHLIST

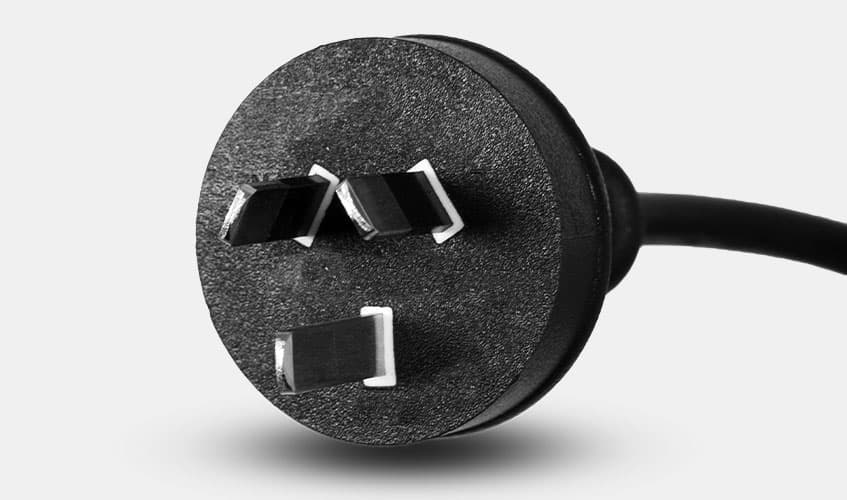

10 AMP PLUG

Connect to any standard outlet.

GAS & GASLESS MIG

Mild Steel.

SYNERGIC MIG CONTROLS

Take the guesswork out of setup

THERMAL OVERLOAD PROTECTION

Prevents machine from exceeding a safe operating temperature.

Product No: XA-MIG135V

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

230V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

8.4

RATED OUTPUT

40/16V-135A/21V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.68

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

40-135A

MIG DUTY CYCLE @ 40°C

15% @ 135A

MIG WIRE SIZE RANGE

0.6-0.9mm

MIG WIRE SPOOL SIZE

1kg

MIG WELDING THICKNESS RANGE

1-6mm

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-120A

TIG DUTY CYCLE @ 40°C

15% @ 120A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-120A

STICK DUTY CYCLE @ 40°C

15% @ 120A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

3-6mm

Size & Weight

DIMENSIONS (mm)

353x132x250mm

WEIGHT (kg)

5.2kg

MACHINE FEATURES

WIRE DRIVE

Standard

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

Here you’ll find the latest manuals, guides & product/parts information.

VIPER 135 SYNERGIC Info Sheet

VIPER 135 SYNERGIC Manual

Xcel-Arc is pleased to offer a 1 year warranty on the VIPER™ 135 SYNERGIC*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
