400 AMP Water-Cooled Push-Pull Gun

Name: 400 AMP Water-Cooled Push-Pull Gun
Brand: Xcel-Arc
Availability: InStock

The SUREGRIP™ BZL SERIES - XAP401W - 400 AMP Water-Cooled Push-Pull Gun has been engineered for maximum performance when MIG welding softer wires, such as Aluminium, whilst also providing smooth and consistent wire feed over a longer cable distance. Clear plastic housing allows for full visibility of all moving parts, while the motor is rated for a minimum service life of 3000 hours. The power cable, gas hose and industrial grade outer liner are covered by a durable canvas cover for complete protection.

Water cooling allows for the 400 AMP Water-Cooled Push-Pull Gun to run with maximum performance, even under heavy load.

VOLTAGE

NECK TYPE

Find a store Enquire

1.0-1.6mm

Wire size compatibility.

400A

Maximum output.

MINIMUM 3000 HOURS

Motor Life.

IDEAL FOR SOFTER WIRES

Smooth and consistent wire feed over an extended length.

SMOOTH & CONSISTENT WIRE FEED

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.

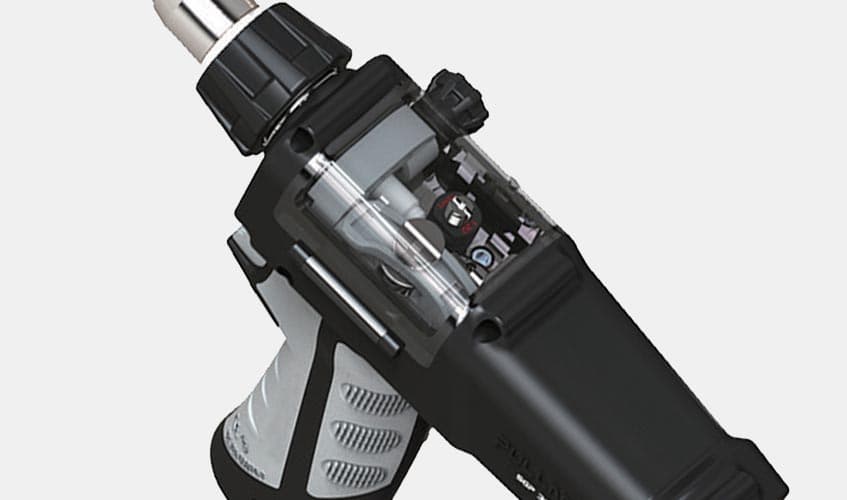

MAXIMUM VISIBILITY

Clear plastic housing allows for full visibility of all moving parts, allowing you to ensure that your wire is feeding smoothly and consistently. You also have a clear view of your wire spool, so that you know when you need to replace it.

REAR CABLE SUPPORT

An extra-length cable-support system give you smooth and consistent wire feed no matter the angle you come in at.

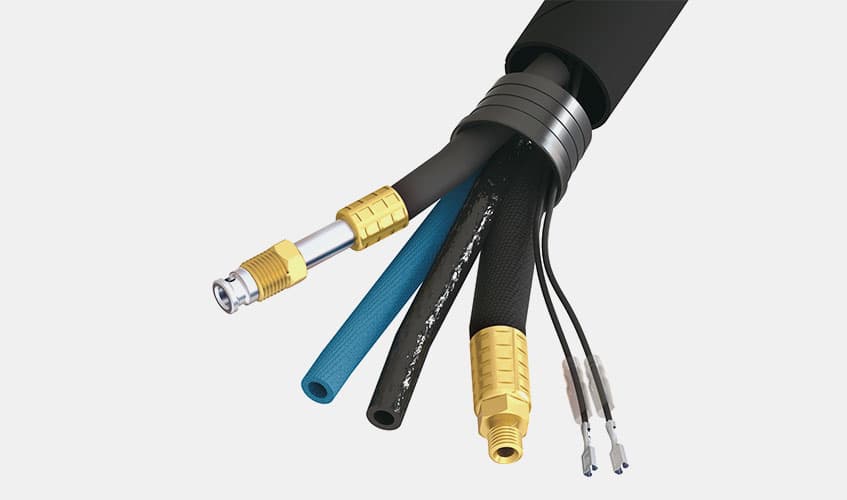

HYDROFLEX™ PERFORMANCE CABLE

This torch features a HYDROFLEX™ Performance Cable system offering outstanding cable flexibility, with the highest heat and abrasion resistance. This water cooled cable system ensures uninterrupted flow-rate and delivery of coolants.

MIG TORCH SPECIFICATIONS

COOLING METHOD: Water Cooled
DUTY CYCLE - CO2: 100% @ 400A
DUTY CYCLE - MIXED GAS: 100% @ 350A
WIRE SIZE: 1.0-1.6mm
LENGTHS (m): 8
STANDARD: EN60974-7
MINIMUM MOTOR LIFE (HOURS): 3000

WATER COOLER SPECS

MINIMUM WATER FLOW: 1.2L/min
MINIMUM WATER INLET PRESSURE: 2.0Bar
MAXIMUM WATER INLET PRESSURE: 5.0Bar
MAXIMUM WATER INLET TEMPERATURE: 50°C
MINIMUM COOLING POWER: 1600W

MIG TORCH SPECIFICATIONS

COOLING METHOD: Water Cooled
DUTY CYCLE - CO2: 100% @ 400A
DUTY CYCLE - MIXED GAS: 100% @ 350A
WIRE SIZE: 1.0-1.6mm
LENGTHS (m): 8
STANDARD: EN60974-7
MINIMUM MOTOR LIFE (HOURS): 3000

WATER COOLER SPECS

MINIMUM WATER FLOW: 1.2L/min
MINIMUM WATER INLET PRESSURE: 2.0Bar
MAXIMUM WATER INLET PRESSURE: 5.0Bar
MAXIMUM WATER INLET TEMPERATURE: 50°C
MINIMUM COOLING POWER: 1600W
