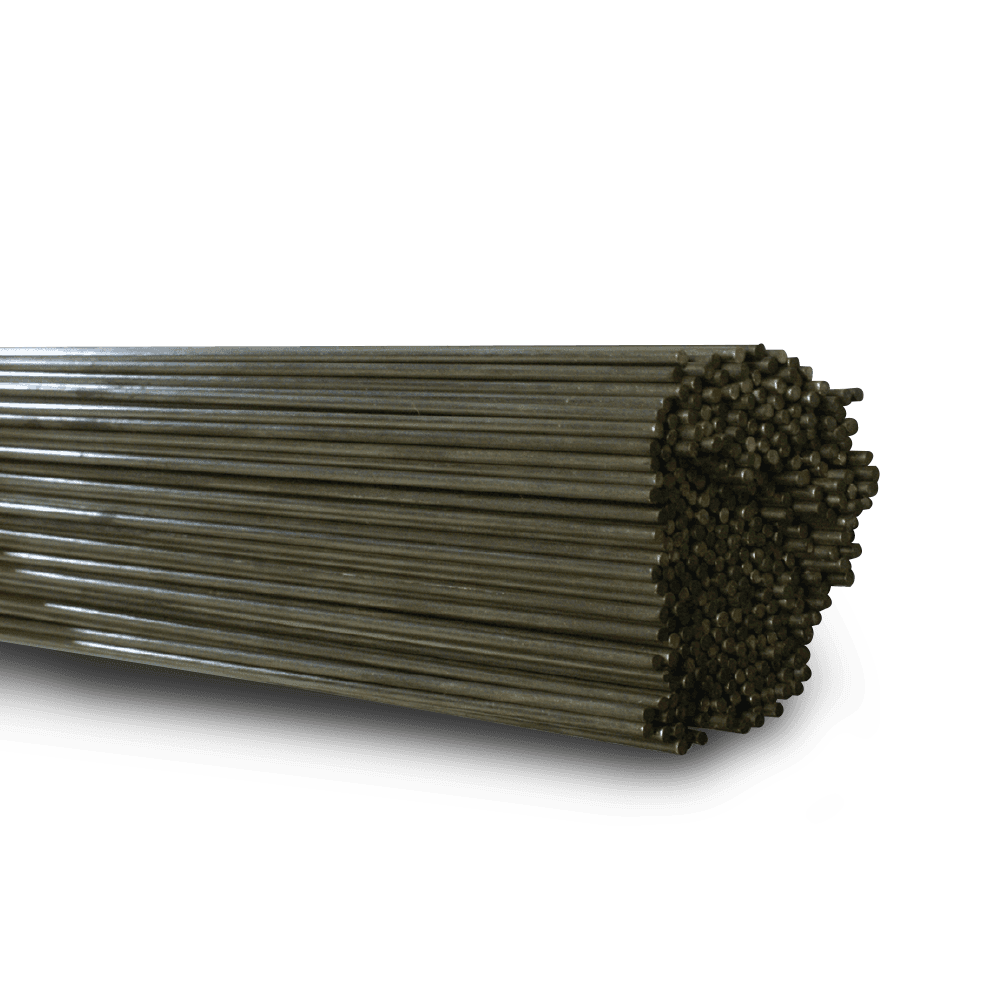

45% SILVER BRAZING ROD - Bare - Cadmium Free

This Cadmium-Free silver brazing alloy is a good general purpose low temperature, free flowing alloy with exceptional strength and narrow melting range making it ideal for production brazing and maintenance work. Ideal for brazing steel, other ferrous metals, stainless steel, tungsten. Well suited for refrigeration pipe joints requiring high bond strength. Excellent capillary action where components have tight fit up.

Classification:

AWS: A5.8 BAg-36, EN1044 AG104, DIN8513 L-Ag45Sn

Typical Rod Analysis:

Ag:45.0% Cu:27.0% Zn:25.0% Sn:3.0%

Typical Weld Deposit Properties:

Melting Range 640-680°C

Operating Temperature 670°C

Weld Metal Density 9.2 g/cm³

Tensile Strength 350N/mm²
