ARC TORCHOLOGY® T4W Liquid-Cooled TIG Torch
Find a storeARC TORCHOLOGY® T4W Liquid-Cooled TIG Torch
The ARC TORCHOLOGY® T4W Liquid-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard Xcel-Arc torches – more power in a lightweight body!
1.6-4.8mm
Electrode size compatibility.
450A
Maximum output.
BETTER POWER-TO-WEIGHT RATIO
More power from a lighter torch
UP TO 20X LONGER CONSUMABLE LIFE
Superior life & better performance.
FORCE COOL™ TECHNOLOGY
A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
HEAT ZONE ISOLATION™ TECHNOLOGY
Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

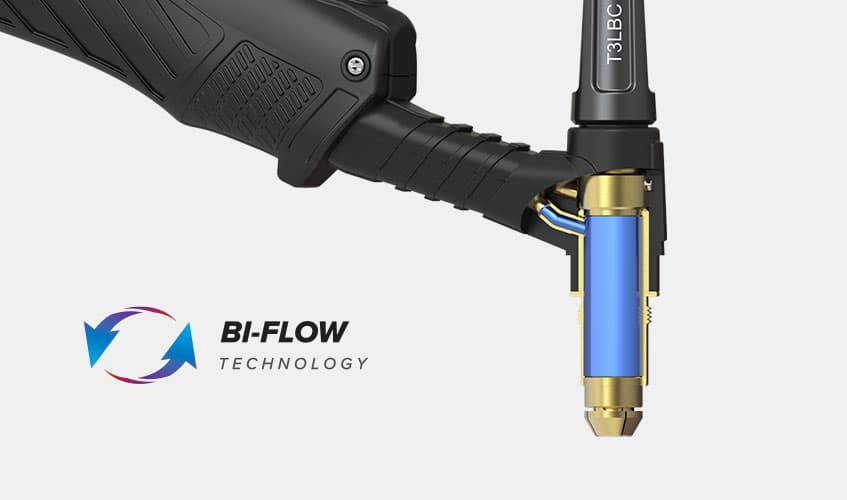

BI-FLOW™ TECHNOLOGY
High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.
TUNGSTEN RELEASE SYSTEM™
Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
TIG TORCH SPECIFICATIONS
- COOLING METHOD
- Liquid Cooled
- DUTY CYCLE - DC
- 4m - 100% @ 450A | 8m - 60% @400A
- DUTY CYCLE - AC
- 4m -100% @ 315A | 8m - 60% @280A
- LENGTHS (m)
- 4/8
- DINSE SIZE
- 35/50
- ELECTRODE SIZE
- 1.6-4.8mm
- STANDARD
- EN60974-7
WATER COOLER SPECS
- MINIMUM WATER FLOW
- 1.5L/min
- MINIMUM WATER INLET PRESSURE
- 3.0 Bar
- MAXIMUM WATER INLET PRESSURE
- 5.0 Bar
- MAXIMUM WATER INLET TEMPERATURE
- 50°C
- MINIMUM COOLING POWER
- 900W
TIG TORCH SPECIFICATIONS
- COOLING METHOD
- Liquid Cooled
- DUTY CYCLE - DC
- 4m - 100% @ 450A | 8m - 60% @400A
- DUTY CYCLE - AC
- 4m -100% @ 315A | 8m - 60% @280A
- LENGTHS (m)
- 4/8
- DINSE SIZE
- 35/50
- ELECTRODE SIZE
- 1.6-4.8mm
- STANDARD
- EN60974-7
WATER COOLER SPECS
- MINIMUM WATER FLOW
- 1.5L/min
- MINIMUM WATER INLET PRESSURE
- 3.0 Bar
- MAXIMUM WATER INLET PRESSURE
- 5.0 Bar
- MAXIMUM WATER INLET TEMPERATURE
- 50°C
- MINIMUM COOLING POWER
- 900W
