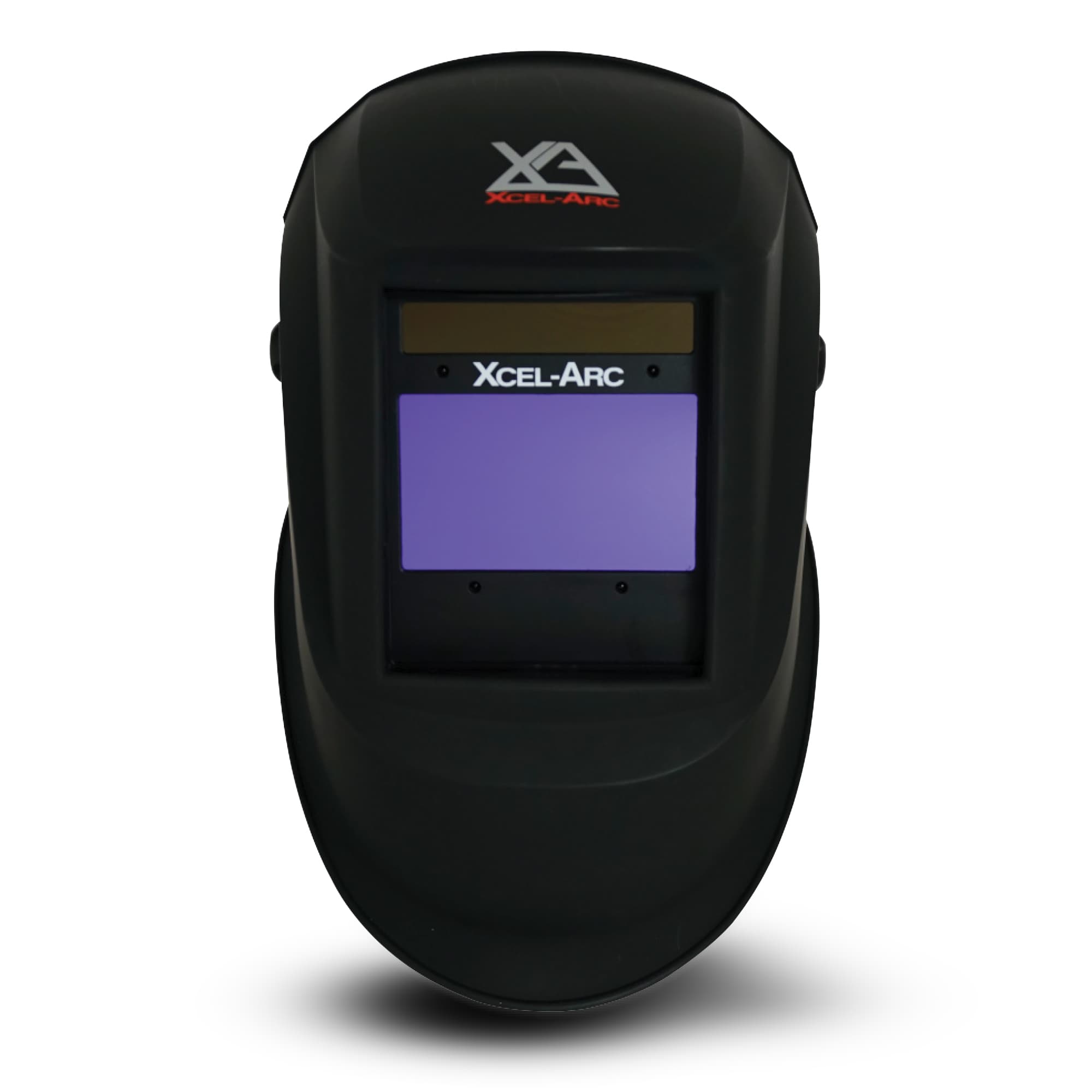

AS6000F Welding Helmet
Find a storeAS6000F Welding Helmet
4 ARC SENSORS | BACKUP BATTERY
The Xcel-Arc AS6000F is a well-priced, high quality wide view automatic welding helmet that’s suitable for all welding applications. The AS6000F includes a Grind Mode function, as well as ELITEVISION™ and the latest Comfort Headgear design. The AS6000F helmet features four independent arc sensors with solar powered cells and easily replaceable batteries. The AS6000F features internal controls with variable shade 9-13 and is TIG operable to 3 amps. Controls include adjustable time Delay to clear state and Sensitivity for triggering to dark state.
The AS6000F is a lightweight and comfortable design offering excellent neck coverage and protection whilst the unique shape design helps channel welding fumes away from the helmet and face area. DIN standard approval guarantees maximum eye protection during welding. The features and price of the AS6000F makes it without doubt the best value for money mid-level automatic welding helmet on the market today. The AS6000F is backed with a 2-year warranty for your peace of mind.
AS6000F
100x60mm
View Size.
9-13
Shade Control.
4 Arc Sensors
Constantly monitor the arc.
GRIND MODE
For use when grinding.
ELITEVISION™ Lens Technology
Drag the handle to compare.


1/1/1/2 CLASSIFICATION

MEMORY STATES

Product No: AS6000F
HELMET SPECIFICATIONS
- FILTER DIMENSIONS
- 114x133x9.5mm
- VIEW SIZE
- 100x60mm
- ARC SENSORS
- 4
- CLASSIFICATION
- 1/1/1/2
- LIGHT STATE
- 4
- DARK STATE
- 9-13
- UV/IR PROTECTION
- DIN15
- TIME FROM LIGHT TO DARK
- 0.08ms
- TIME FROM DARK TO LIGHT
- 0.1-0.9s
- SENSITIVITY DELAY
- Adjustable (1-5 for low-high)
- POWER SUPPLY
- Solar Cells & CR2450 Replaceable Battery
- WARRANTY
- 2 Years
- OPERATING TEMPERATURE
- -10˚C to 65˚C
- STORAGE TEMPERATURE
- -20˚C to 85˚C
- SHADE CONTROL
- Yes
- GRIND MODE
- Yes
- STANDARDS
- ANSI Z87.1 / DIN / CE / TUV
REPLACABLE PARTS
- OUTER LENS
- XA-FCL133-114
- INNER LENS
- XA-ICL105-65
- HARNESS
- XA-AS-3-HB
- SWEAT BAND
- XA-AS-3-SWB
- FILTER
- XA-5001
Product No: AS6000F
HELMET SPECIFICATIONS
- FILTER DIMENSIONS
- 114x133x9.5mm
- VIEW SIZE
- 100x60mm
- ARC SENSORS
- 4
- CLASSIFICATION
- 1/1/1/2
- LIGHT STATE
- 4
- DARK STATE
- 9-13
- UV/IR PROTECTION
- DIN15
- TIME FROM LIGHT TO DARK
- 0.08ms
- TIME FROM DARK TO LIGHT
- 0.1-0.9s
- SENSITIVITY DELAY
- Adjustable (1-5 for low-high)
- POWER SUPPLY
- Solar Cells & CR2450 Replaceable Battery
- WARRANTY
- 2 Years
- OPERATING TEMPERATURE
- -10˚C to 65˚C
- STORAGE TEMPERATURE
- -20˚C to 85˚C
- SHADE CONTROL
- Yes
- GRIND MODE
- Yes
- STANDARDS
- ANSI Z87.1 / DIN / CE / TUV
REPLACABLE PARTS
- OUTER LENS
- XA-FCL133-114
- INNER LENS
- XA-ICL105-65
- HARNESS
- XA-AS-3-HB
- SWEAT BAND
- XA-AS-3-SWB
- FILTER
- XA-5001
