Xcel-Arc

AS7000D Welding Helmet

AS7000D Welding Helmet

This product has been discontinued

It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.

4 ARC SENSORS | BACKUP BATTERY

The AS7000D Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity. Fitted with 4 arc sensors, the AS7000D Welding Helmet features 5-13 Shade control as well as GRIND mode for use when grinding.

A 100x83mm view allows for a large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter. Also included is the ability to save up to 3 memory profiles.

The AS7000D Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

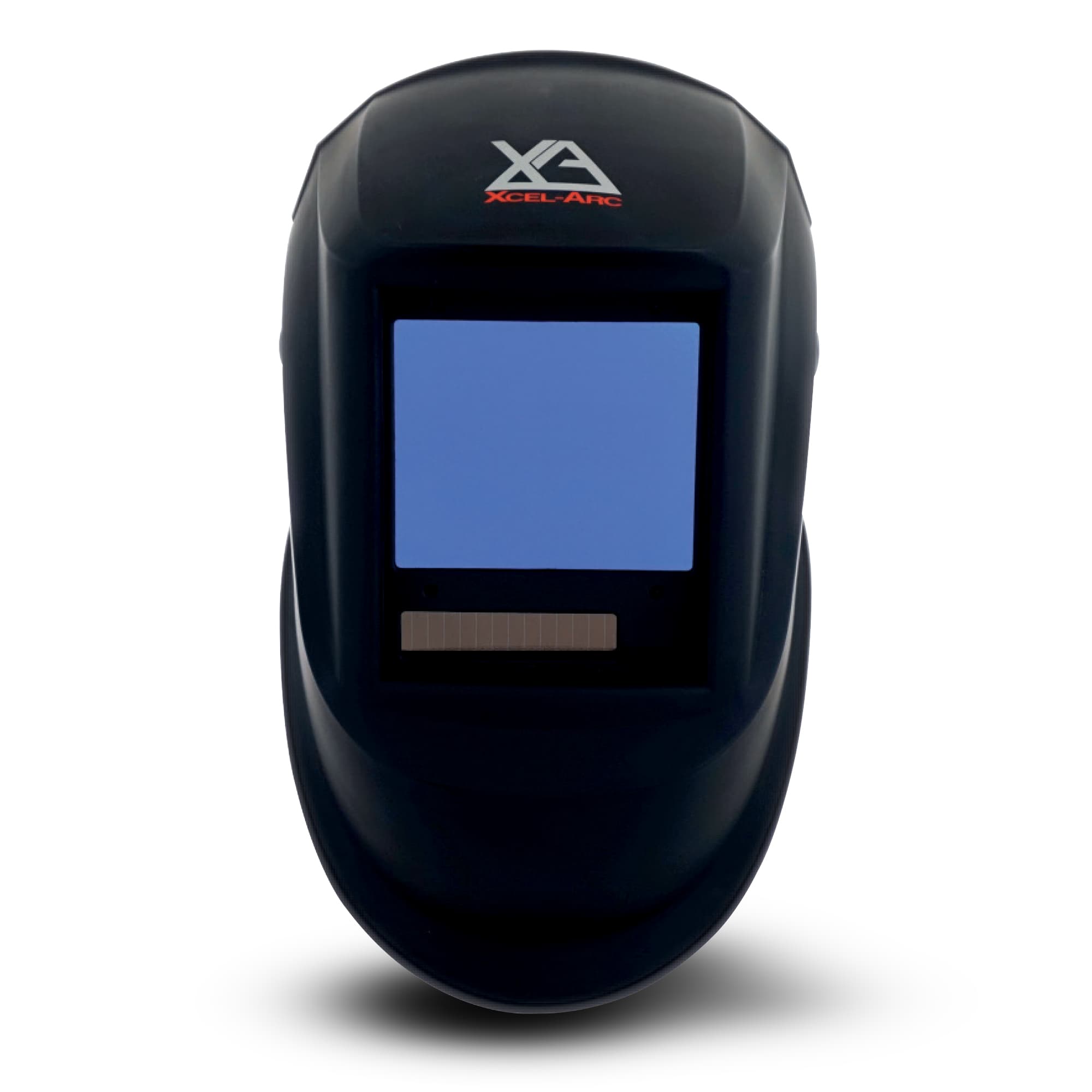

AS7000D

Enquire

100x83.4mm

View Size.

5-13

Shade Control.

4 Arc Sensors

Constantly monitor the arc.

GRIND MODE

For use when grinding.

ELITEVISION™ Lens Technology

Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding. Click and slide the icon to see the difference.

Drag the handle to compare.

EliteVision Lens 2True Colour View Regular Lens 1

1/1/1/1 CLASSIFICATION

Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/1 classification for optical quality, diffusion of light, light consistency and angle dependence.
1 1 1 1 Classification RWX6000 1

MEMORY STATES

The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).
Power Factor Correction 1

Product No: AS7000D

HELMET SPECIFICATIONS

FILTER DIMENSIONS
114x113x9.5mm
VIEW SIZE
100x83.4mm
ARC SENSORS
4
CLASSIFICATION
1/1/1/1
LIGHT STATE
4
DARK STATE
5-9 / 9-13
UV/IR PROTECTION
DIN15
TIME FROM LIGHT TO DARK
0.08ms
TIME FROM DARK TO LIGHT
0.1-0.9s
SENSITIVITY DELAY
Adjustable (1-5 for low-high)
POWER SUPPLY
Solar Cells & CR2450 Replaceable Battery
WARRANTY
2 Years
OPERATING TEMPERATURE
-10˚C to 65˚C
STORAGE TEMPERATURE
-20˚C to 85˚C
SHADE CONTROL
Yes
GRIND MODE
Yes
STANDARDS
ANSI Z87.1 / DIN / CE / TUV

REPLACABLE PARTS

OUTER LENS
XA-AS4-1-FCL
INNER LENS
XA-AS7-1-ICL
HARNESS
XA-AS-1-HB
SWEAT BAND
XA-AS-1-SWB
FILTER
XA-5122D
