Xcel-Arc

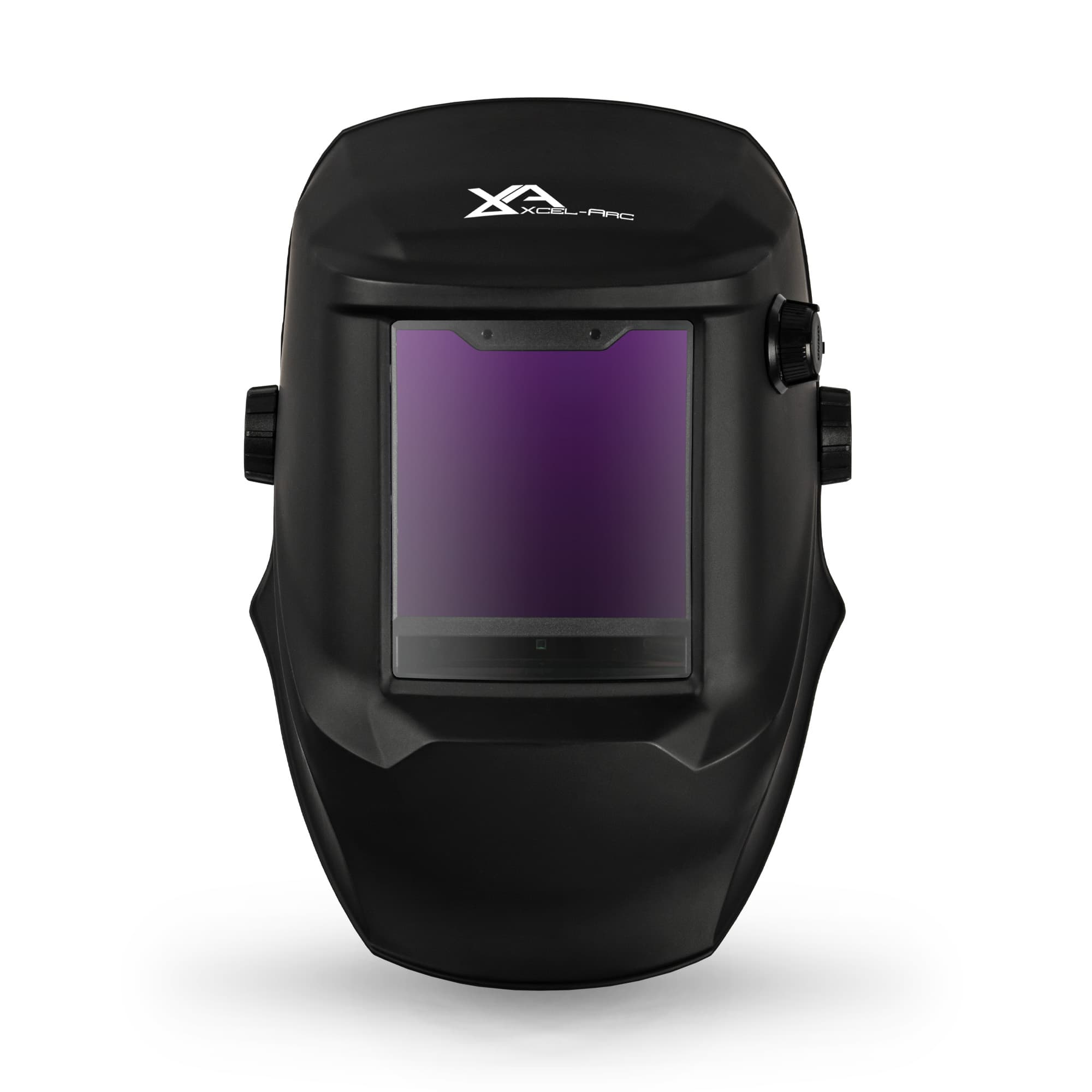

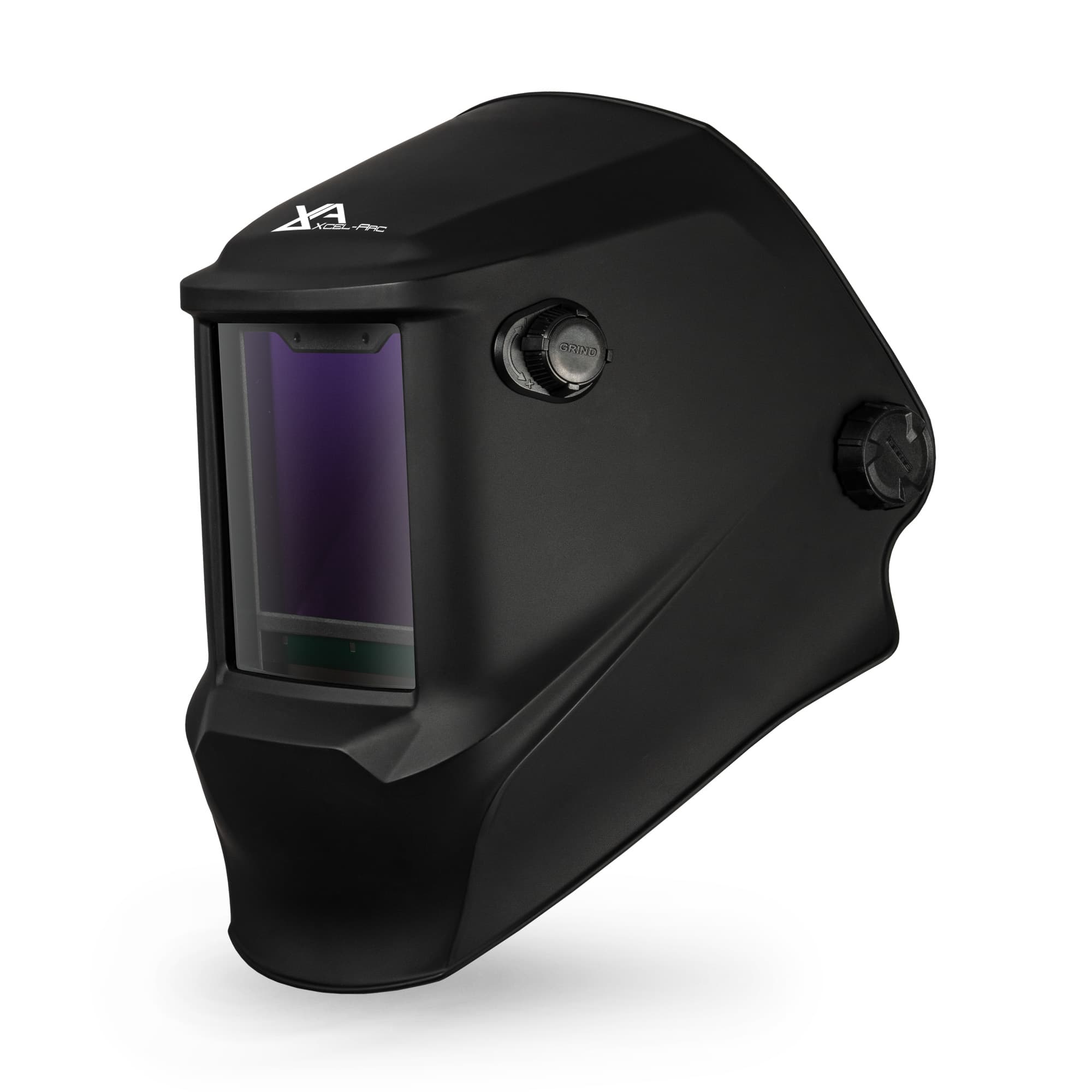

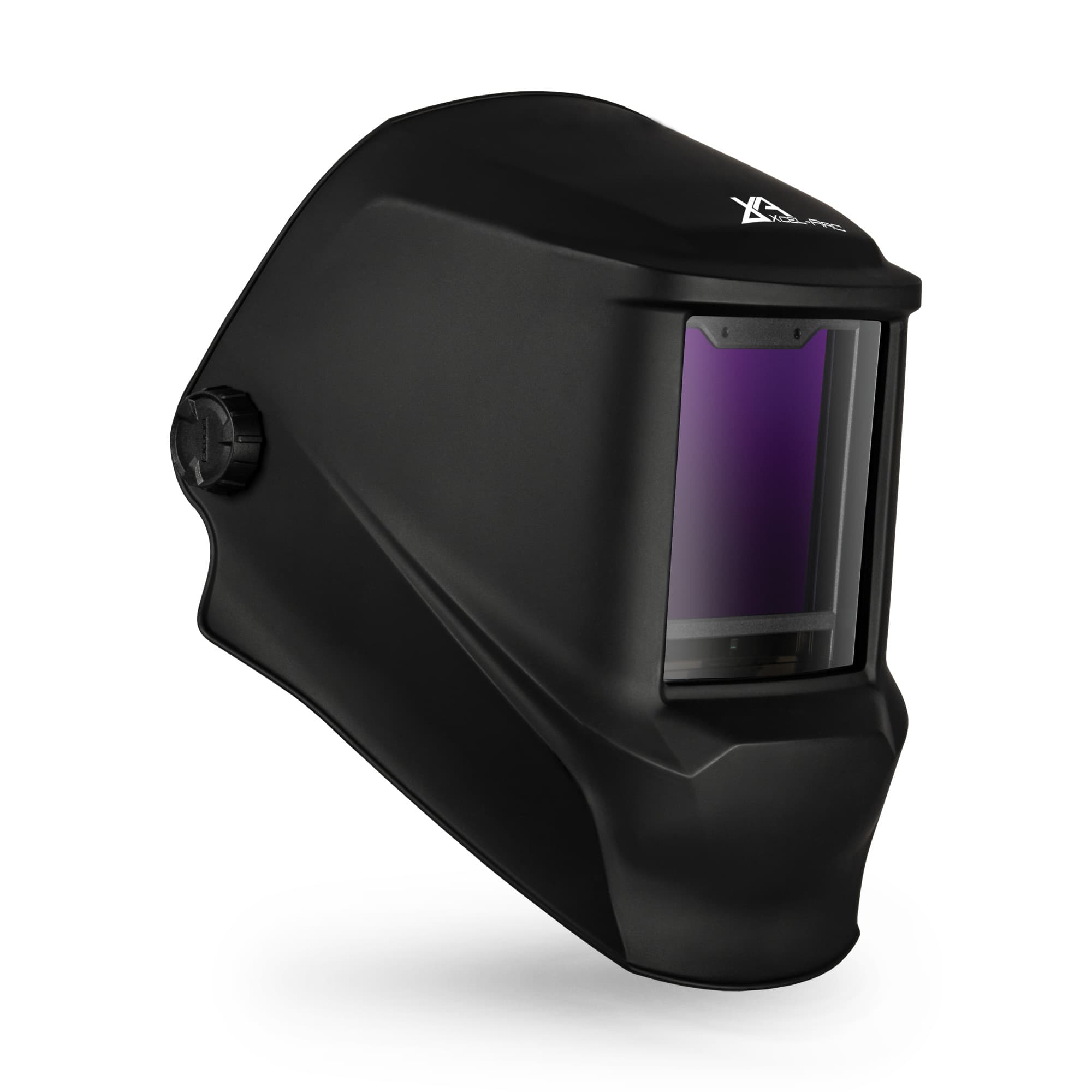

AS9000D Welding Helmet

AS9000D Welding Helmet

New

5 ARC SENSORS | BACKUP BATTERY

Keep your eyes and face protected during every weld with our AS9000D helmets. Featuring advanced auto shade detection technology and five arc sensors, these helmets eliminate the guesswork in shade selection. With a perfect 1/1/1/1 optical classification and our largest viewing lens yet, you’ll experience unparalleled clarity. The sleek, professional black design adds a touch of style to top-tier functionality.

AS9000D

Find a storeEnquire

102.5x102.5mm

EXTRA LARGE VIEW SIZE.

3.0 Light State

FOR THE CLEAREST VIEW BEFORE AND AFTER THE WELD.

5 Arc Sensors

CONSTANTLY MONITOR THE ARC.

Auto-Shade Select

AUTOMATICALLY SELECTS THE OPTIMAL SHADE FOR WELDING.

FEATURE VIDEO

Check out all of the features on the new AS9000D Welding Helmets.

ELITEVISION™ Lens Technology

Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding. Click and slide the icon to see the difference.

Drag the handle to compare.

EliteVision Lens newRegular Lens new

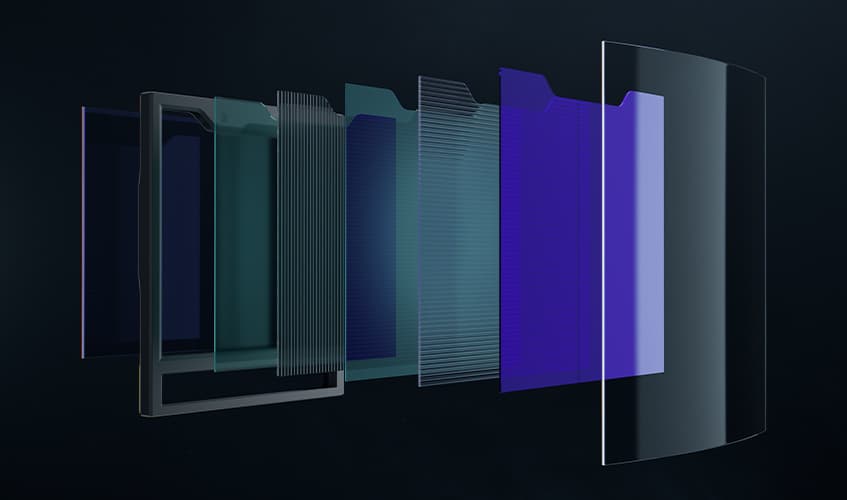

1/1/1/1 CLASSIFICATION

Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
1.1.1.1 CLASSIFICATION

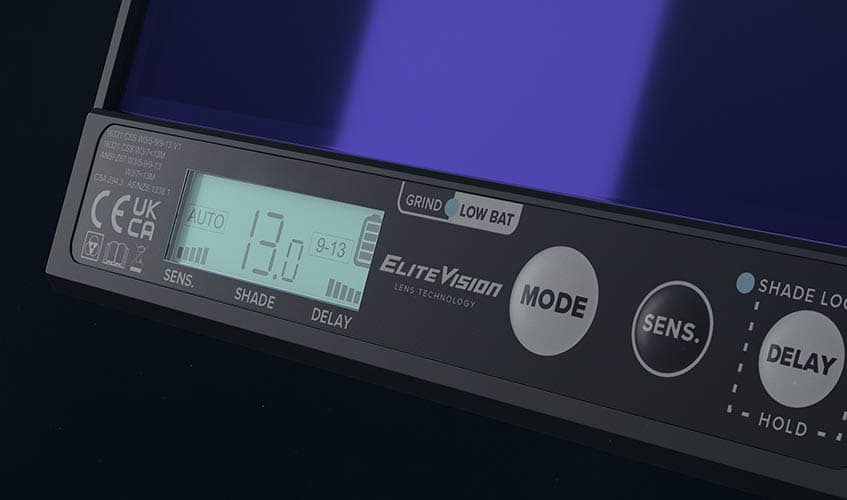

Auto Shade Select

Take the guesswork out of your protection. The auto shade select technology instantly detects the arc and decides what shade you need to keep your eyes safe for every kind of welding.
OTHER 1

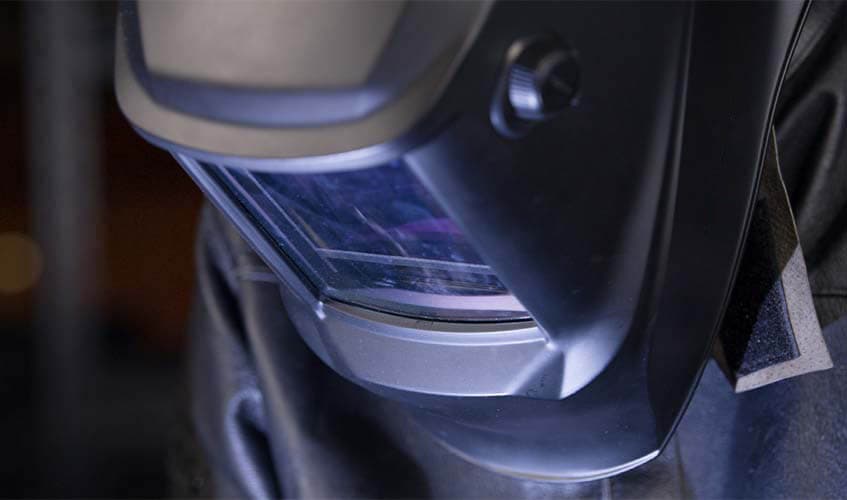

102.5x102.5mm View Size

Unmatched visibility in every situation. The 102.5×102.5mm viewing area lets you see every weld with complete clarity.
PROFESSIONAL BLACK 102.5x102.5mm View Size

3.0 Light State

Get a clear view before and after the weld, as well as during. With a 3.0 light state, you’ll be able to see your workpiece as well with the helmet on as with it off.
PROFESSIONAL BLACK 1 1 1 1 Classification

External Grind Button

Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.
EXTERNAL GRIND MODE 1

5 Arc Sensors

Detect every arc instantly. The four optimally positioned arc sensors, coupled with an arc intensity sensor, trigger the Auto-Darkening Filter. Experience unparalleled eye protection right from the start of every weld, even when you’re out of position.
PROFESSIONAL BLACK 5 Arc Sensors

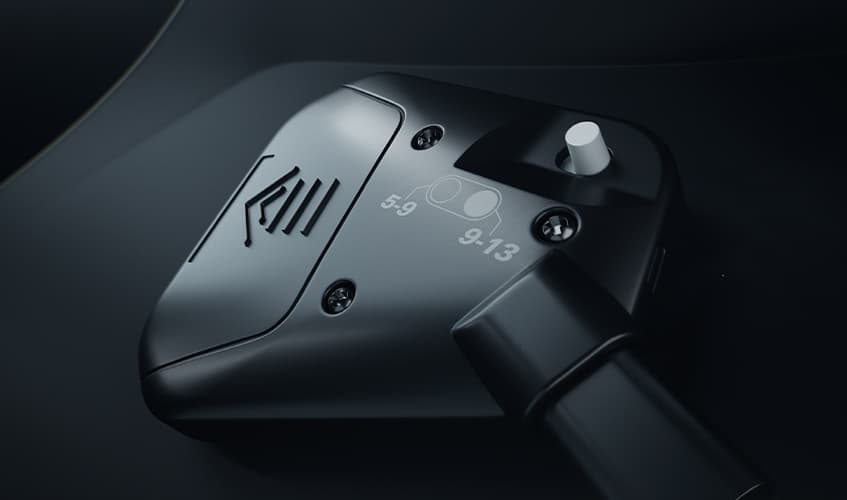

Backup Battery

2 x CR2450 backup batteries improve the performance and reliability of the auto-darkening filter.
BACKUP BATTERY 1

4 Point Harness

Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.
4 POINT HARNESS

Product No: AS9000D

HELMET SPECIFICATIONS

FILTER DIMENSIONS
114x133x9.5mm
VIEW SIZE
102.5x102.5mm
ARC SENSORS
4 Arc Sensors, 1 Arc Intensity Sensor
CLASSIFICATION
1/1/1/1
LIGHT STATE
3
DARK STATE
5-9 / 9-13
UV/IR PROTECTION
DIN15
TIME FROM LIGHT TO DARK
0.04ms
TIME FROM DARK TO LIGHT
0.1-0.9s
SENSITIVITY DELAY
Adjustable (1-5 for low-high)
POWER SUPPLY
Solar Cells & 2 x CR2450 Replaceable Batteries
WARRANTY
3 Years
OPERATING TEMPERATURE
-10˚C to 65˚C
STORAGE TEMPERATURE
-20˚C to 85˚C
SHADE CONTROL
Yes
GRIND MODE
Yes (External)
STANDARDS
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)

REPLACABLE PARTS

OUTER LENS
XA-FCL133-114
INNER LENS
XA-ICL108-108
HARNESS
XA-AS-4-HB
SWEAT BAND
XA-AS-4-SWB
HARNESS BACK PAD
XA-AS-4-BP
FILTER
SUPER V
MAGNIFICATION LENS
MWL4215 - 1.5x Magnification Lens, MWL4220 - 2.0x Magnification Lens, MWL4225 - 2.5x Magnification Lens
