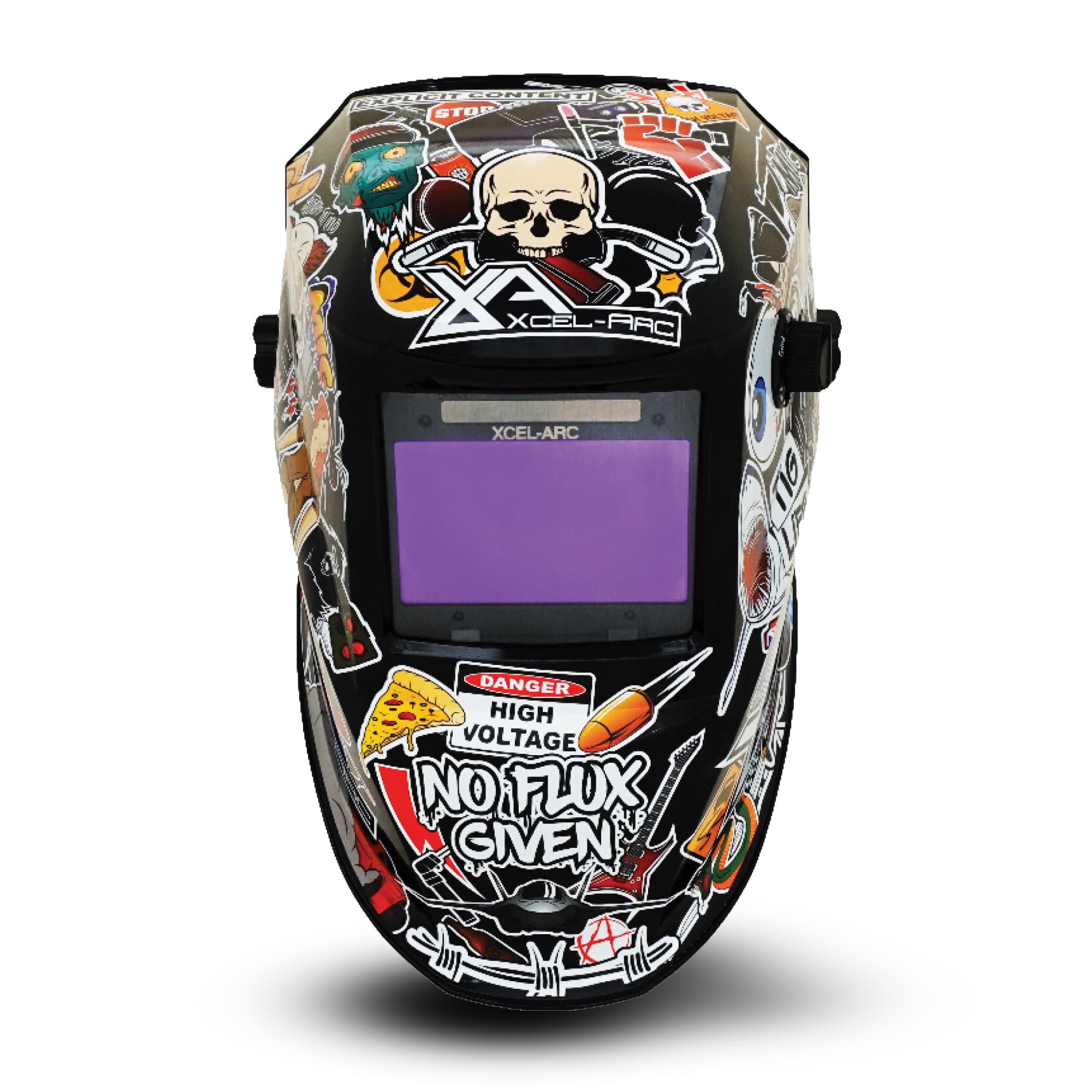

CHAOS™ Welding Helmet
Find a storeCHAOS™ Welding Helmet
4 ARC SENSORS | BACKUP BATTERY
The CHAOS™ Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 4 arc sensors, the CHAOS™ Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding. A 100x60mm view allows for large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter.
The CHAOS™ Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.
CHAOS
100x60mm
View Size.
9-13
Shade Control.
4 Arc Sensors
Constantly monitor the arc.
GRIND MODE
For use when grinding.
ELITEVISION™ Lens Technology
Drag the handle to compare.
Product No: CHAOS
HELMET SPECIFICATIONS
- FILTER DIMENSIONS
- 110x90x9mm
- VIEW SIZE
- 100x60mm
- ARC SENSORS
- 4
- CLASSIFICATION
- 1/1/1/2
- LIGHT STATE
- 4
- DARK STATE
- 9-13
- UV/IR PROTECTION
- DIN15
- TIME FROM LIGHT TO DARK
- 0.08ms
- TIME FROM DARK TO LIGHT
- 0.1-0.9s
- SENSITIVITY DELAY
- Adjustable (Internal)
- POWER SUPPLY
- Solar Cells & CR2450 Replaceable Battery
- WARRANTY
- 2 Years
- OPERATING TEMPERATURE
- -10˚C to 65˚C
- STORAGE TEMPERATURE
- -20˚C to 85˚C
- SHADE CONTROL
- Yes (External)
- GRIND MODE
- Yes (External)
- STANDARDS
- ANSI Z87.1 / DIN / CE / TUV
REPLACABLE PARTS
- OUTER LENS
- XA-FCL118-97

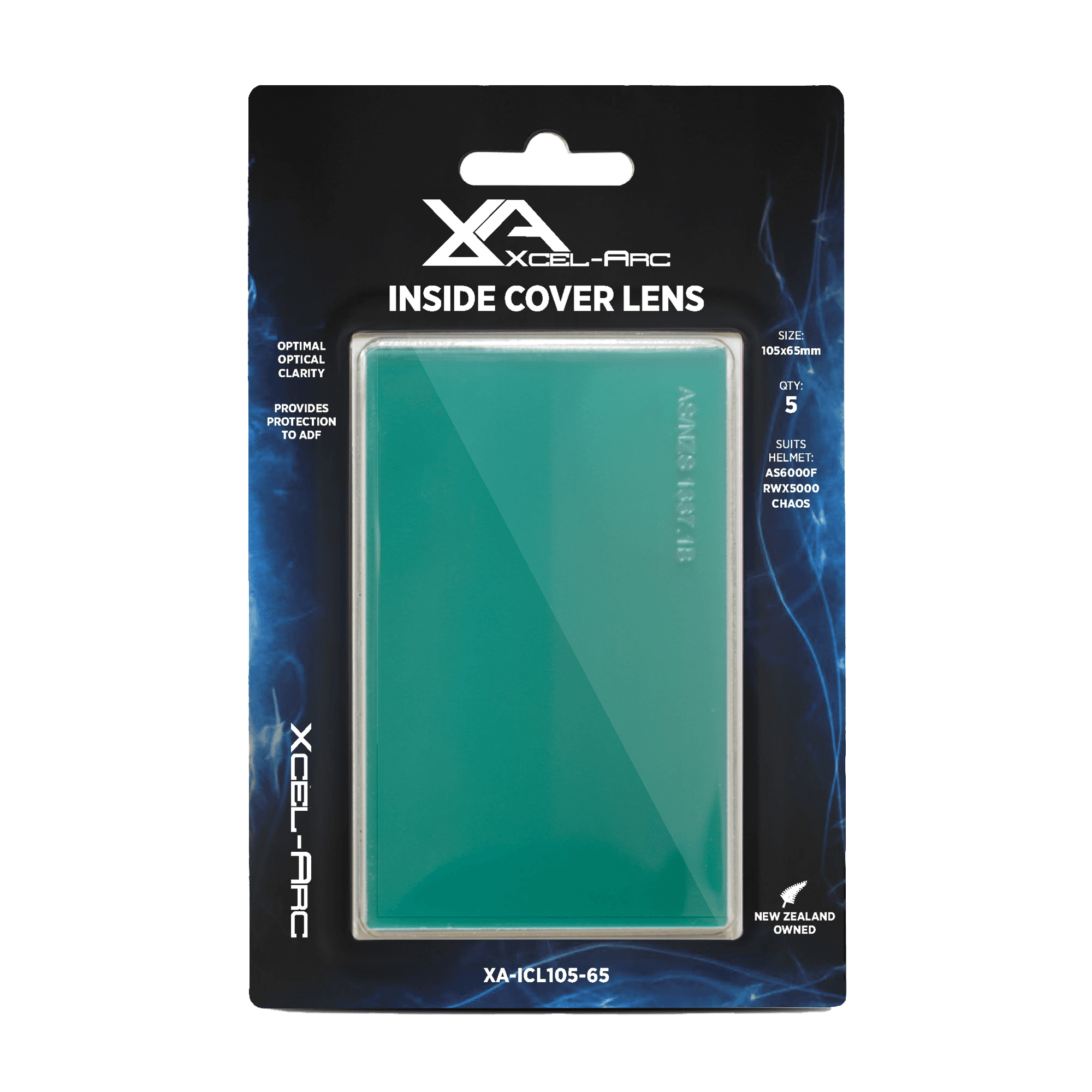

- INNER LENS
- XA-ICL105-65
- HARNESS
- XA-AS-3-HB
- SWEAT BAND
- XA-AS-3-SWB
- FILTER
- XA-1122E
- MAGNIFICATION LENS
- MWL4215 Magnifying Welding Lens 1.5 - 108x51mm , MWL4220 Magnifying Welding Lens 2.0 - 108x51mm, MWL4225 Magnifying Welding Lens 2.5 - 108x51mm, MWL4230 Magnifying Welding Lens 3.0 - 108x51mm
Product No: CHAOS
HELMET SPECIFICATIONS
- FILTER DIMENSIONS
- 110x90x9mm
- VIEW SIZE
- 100x60mm
- ARC SENSORS
- 4
- CLASSIFICATION
- 1/1/1/2
- LIGHT STATE
- 4
- DARK STATE
- 9-13
- UV/IR PROTECTION
- DIN15
- TIME FROM LIGHT TO DARK
- 0.08ms
- TIME FROM DARK TO LIGHT
- 0.1-0.9s
- SENSITIVITY DELAY
- Adjustable (Internal)
- POWER SUPPLY
- Solar Cells & CR2450 Replaceable Battery
- WARRANTY
- 2 Years
- OPERATING TEMPERATURE
- -10˚C to 65˚C
- STORAGE TEMPERATURE
- -20˚C to 85˚C
- SHADE CONTROL
- Yes (External)
- GRIND MODE
- Yes (External)
- STANDARDS
- ANSI Z87.1 / DIN / CE / TUV
REPLACABLE PARTS
- OUTER LENS
- XA-FCL118-97
- INNER LENS
- XA-ICL105-65
- HARNESS
- XA-AS-3-HB
- SWEAT BAND
- XA-AS-3-SWB
- FILTER
- XA-1122E
- MAGNIFICATION LENS
- MWL4215 Magnifying Welding Lens 1.5 - 108x51mm , MWL4220 Magnifying Welding Lens 2.0 - 108x51mm, MWL4225 Magnifying Welding Lens 2.5 - 108x51mm, MWL4230 Magnifying Welding Lens 3.0 - 108x51mm
