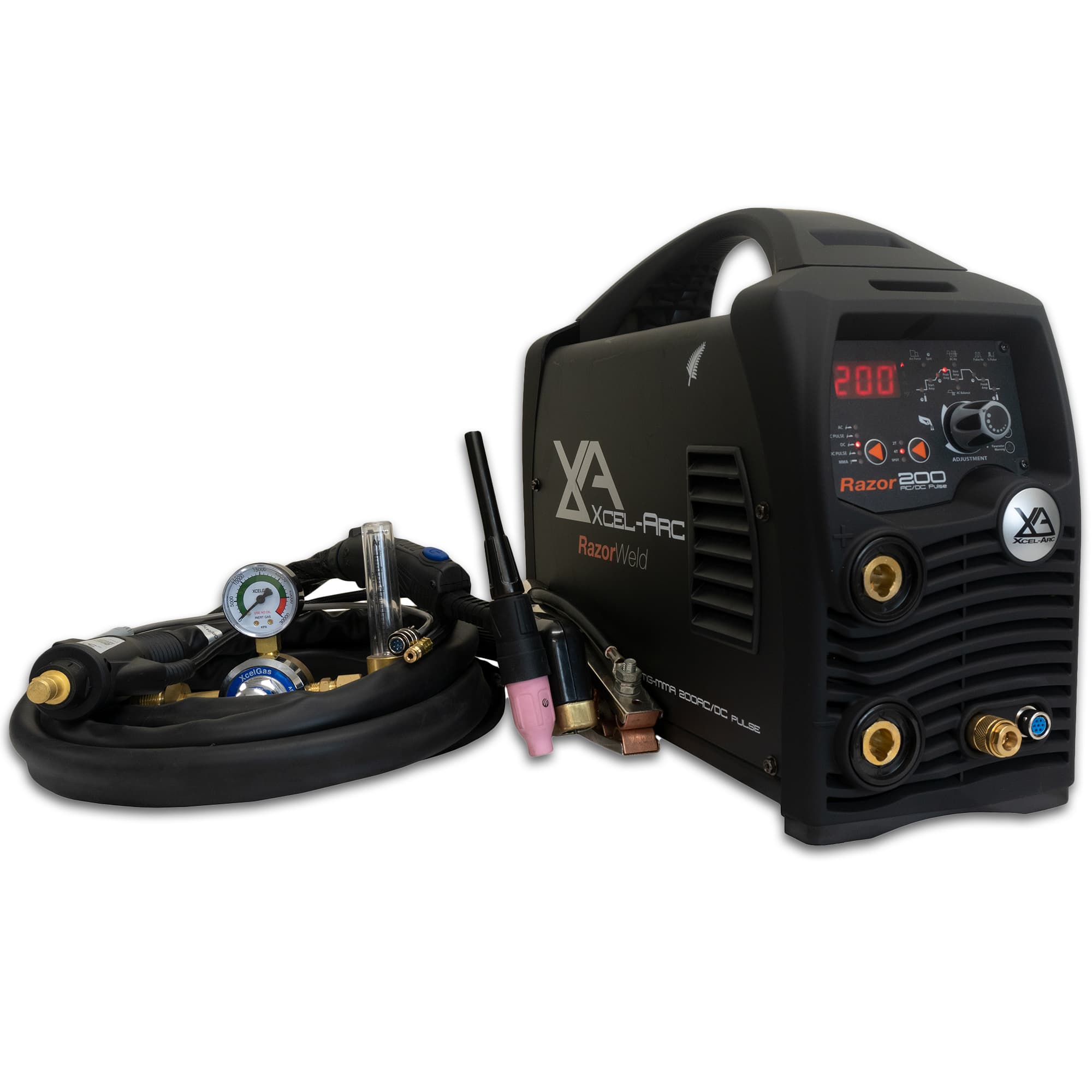

RAZORWELD™ 200 AC/DC TIG Welder
Find a storeRAZORWELD™ 200 AC/DC TIG Welder
This product has been discontinued
It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.
15 AMP PLUG | H/F AC/DC TIG | FOOT CONTROL READY
The RAZORWELD™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.
Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.
The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZORWELD™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.
XA-TIG200CRZ ACDC-T3
15 AMP PLUG
Connect to a 15 AMP outlet.
AC/DC HIGH FREQUENCY TIG
Perfect for Aluminium.
PULSE FUNCTION
Minimise distortion on the welded material.

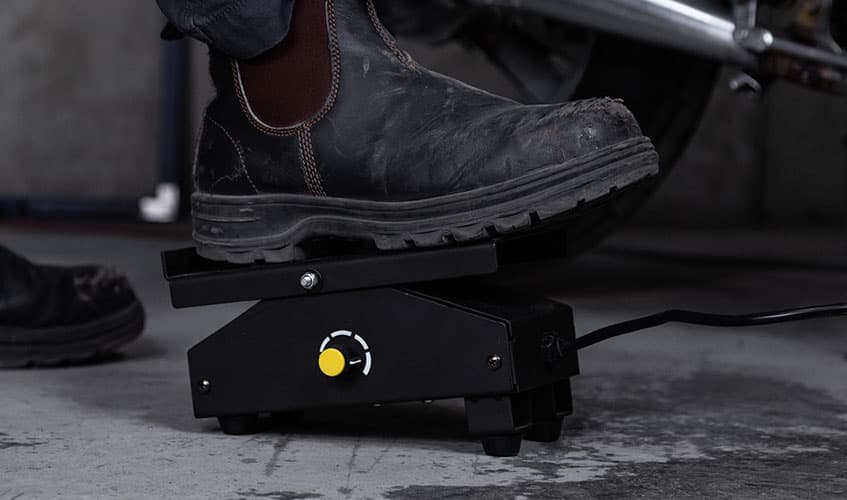

FOOT CONTROL READY
Extra versatility and convenience.
AC/DC HIGH-FREQUENCY TIG
PULSE TIG FUNCTION
FOOT CONTROL READY
Product No: XA-TIG200CRZ ACDC-T3
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 6.0
- Ieff (A)
- 15.0
- RATED OUTPUT
- 5-200A
- NO LOAD VOLTAGE (V)
- 9-68
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- B
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 9.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
- WARRANTY (Years)
- 3
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG & AC/DC Pulse
- TIG WELDING CURRENT RANGE
- 5-200A
- TIG DUTY CYCLE @ 40°C
- 25% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-8mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-160A
- STICK DUTY CYCLE @ 40°C
- 30% @ 160A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
- ARC FORCE
- 0-40
Size & Weight
- DIMENSIONS (mm)
- 410x162x326mm
- WEIGHT (kg)
- 10.5kg
Product No: XA-TIG200CRZ ACDC-T3
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 6.0
- Ieff (A)
- 15.0
- RATED OUTPUT
- 5-200A
- NO LOAD VOLTAGE (V)
- 9-68
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- B
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 9.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
- WARRANTY (Years)
- 3
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG & AC/DC Pulse
- TIG WELDING CURRENT RANGE
- 5-200A
- TIG DUTY CYCLE @ 40°C
- 25% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-8mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-160A
- STICK DUTY CYCLE @ 40°C
- 30% @ 160A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
- ARC FORCE
- 0-40
Size & Weight
- DIMENSIONS (mm)
- 410x162x326mm
- WEIGHT (kg)
- 10.5kg
