RAZORWELD™ 205 SMART SET™ MIG/TIG/STICK Welder

The RAZORWELD™ 205 SMART SET™ is one of the easiest multi-process welders available, offering MIG, TIG and STICK welding functions. The SMART SET™ Synergic MIG technology takes the guesswork out of MIG welding, so you get more done in less time. With the inclusion of a Spool Gun connection and lightweight construction, the RAZORWELD™ 205 SMART SET™ goes from worksite to workshop with ease.

XA-MIG205SS-K

FIND A STORE

ADD TO WISHLIST

15 AMP PLUG

Connect to a 15 AMP outlet.

SPOOL GUN READY

For softer wires, such as Aluminium.

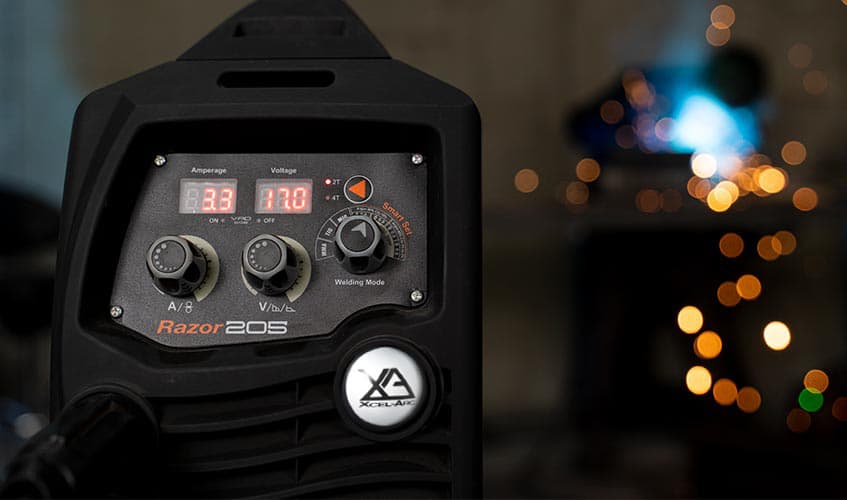

SMART SET™ TECHNOLOGY

Four Synergic Mild Steel welding programs.

GEARED WIRE DRIVE

For smoother wire feeding.

Product No: XA-MIG205SS-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

9.4

Ieff (A)

15.0

RATED OUTPUT

30A/15.5V - 200A/24.0V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-200A

MIG DUTY CYCLE @ 40°C

20% @ 200A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-200A

TIG DUTY CYCLE @ 40°C

35% @ 200A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

15% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2mm - 12mm

Size & Weight

DIMENSIONS (mm)

470x190x380mm

WEIGHT (kg)

12.5kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

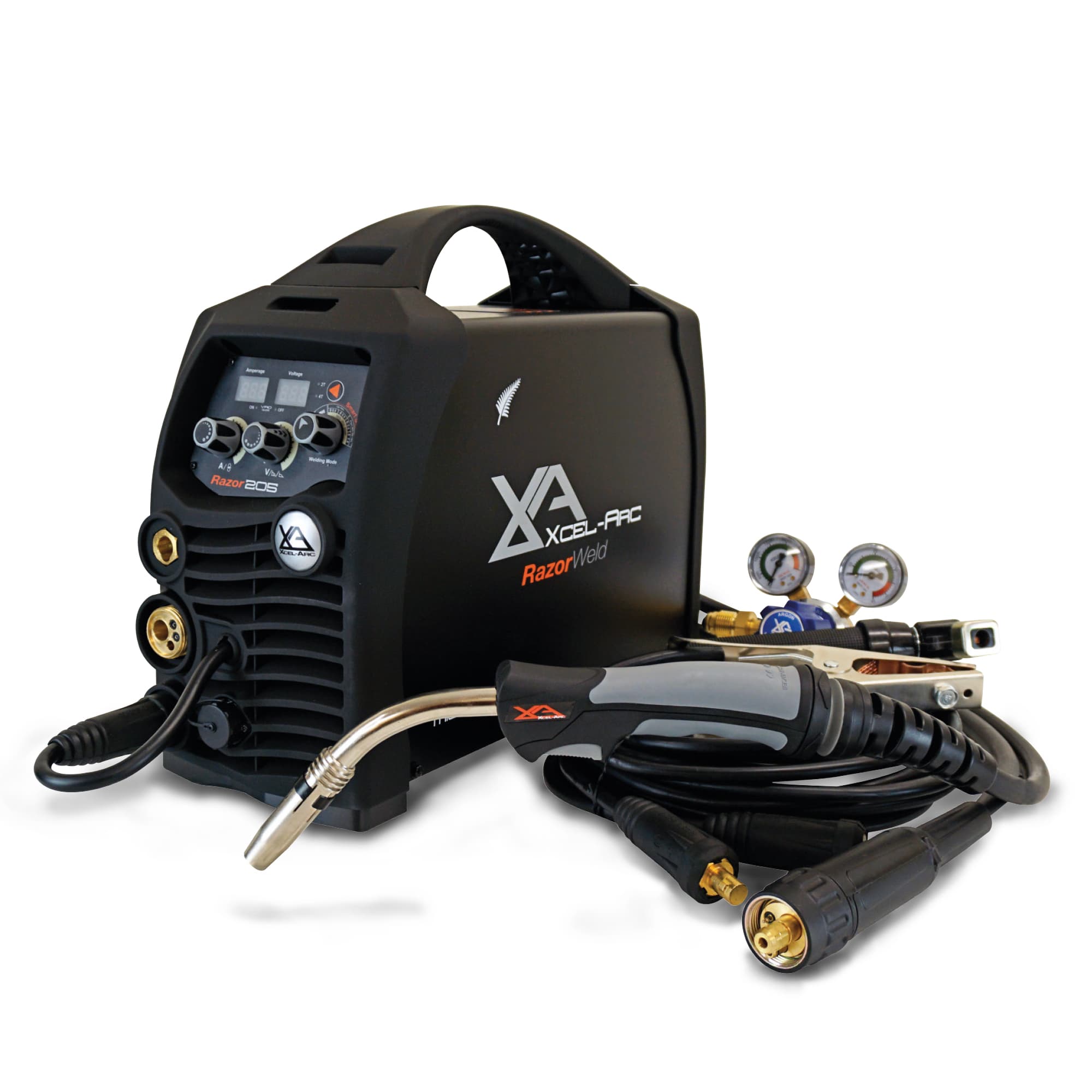

RAZOR 205 SMART SET MIG/TIG/STICK Welder
XA24 Mig Torch x 3m
Earth Lead & Arc Lead 25mm x 4m
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR 205 SMART SET Info Sheet

RAZOR 205 SMART SET Manual

Wire Feeder Drive Rollers Spares

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
