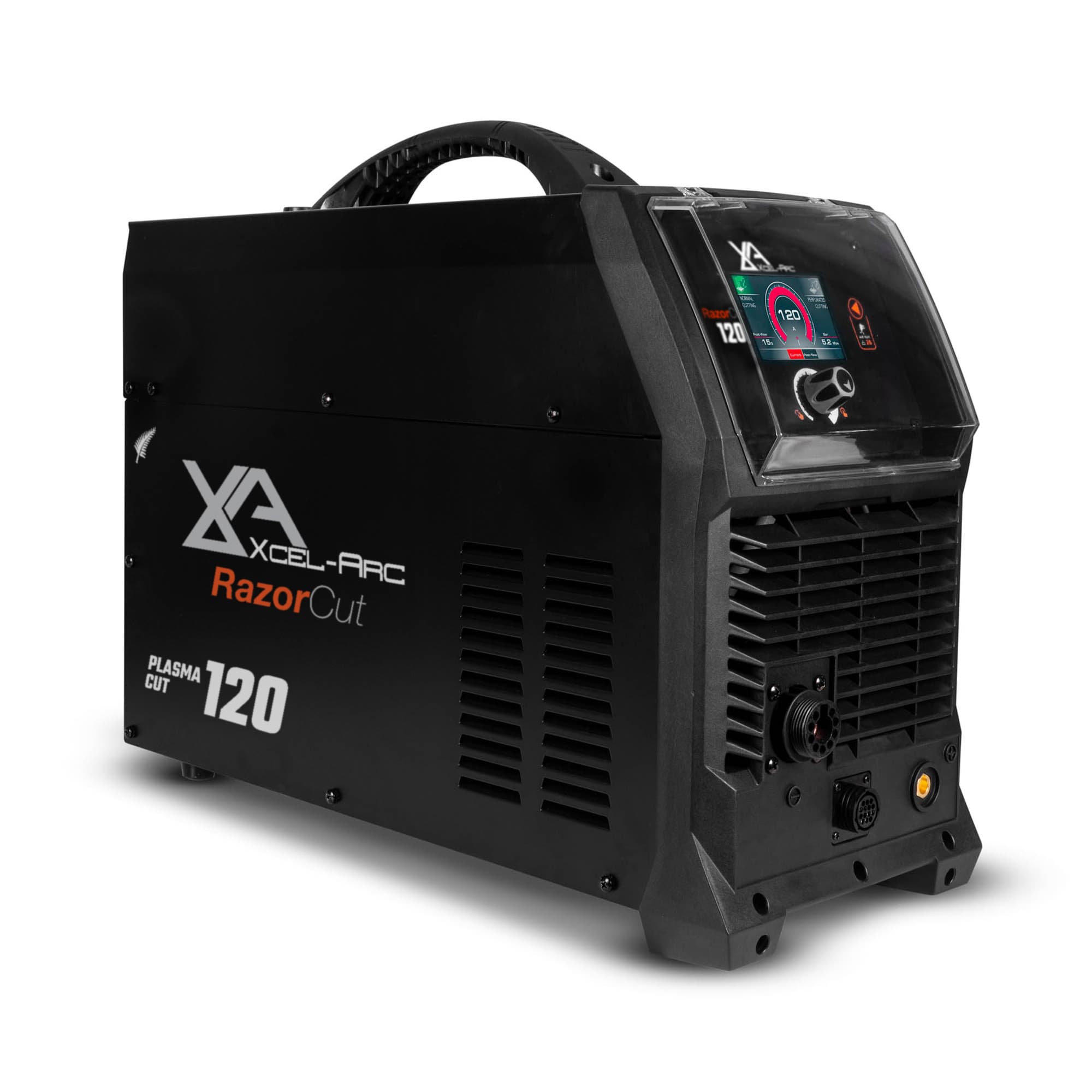

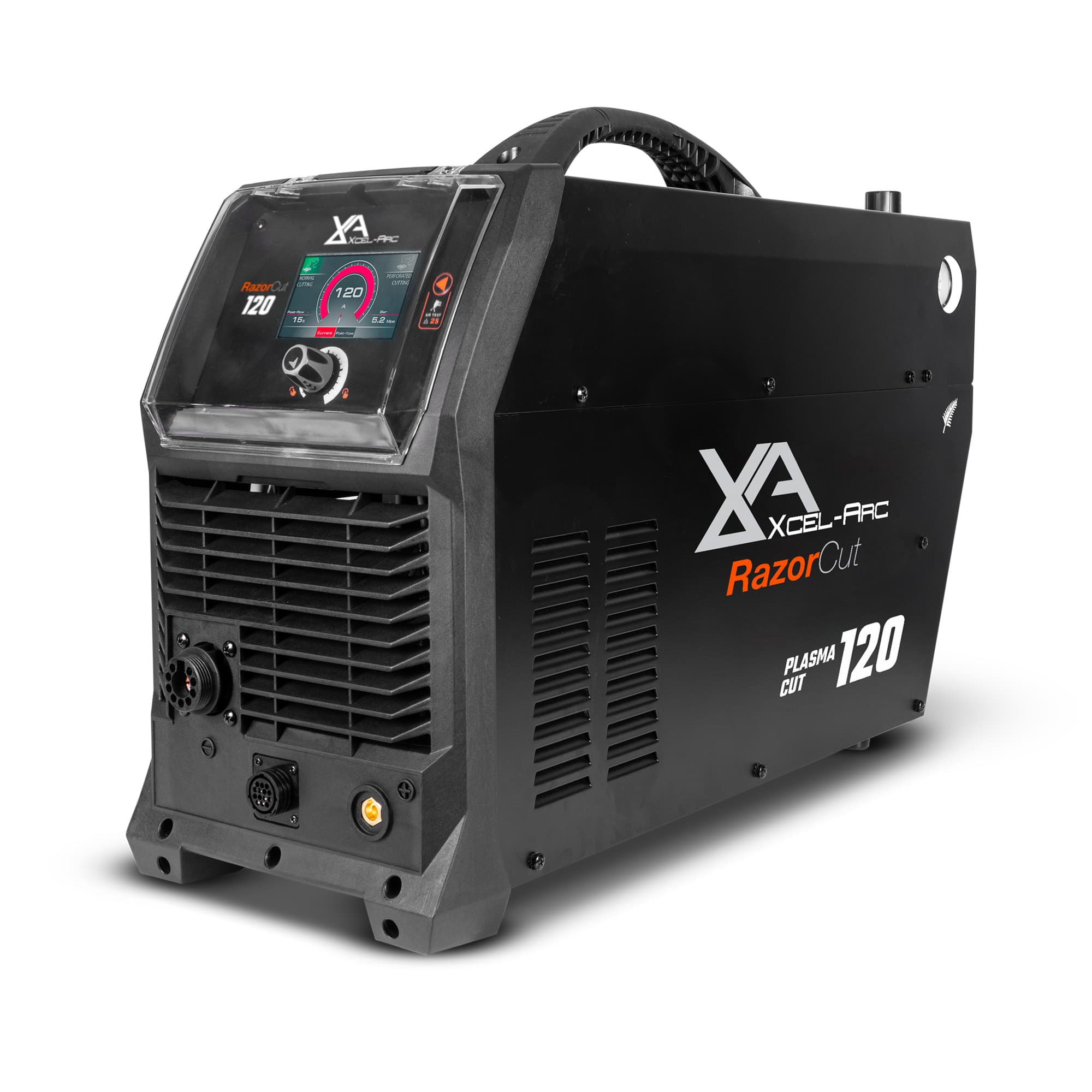

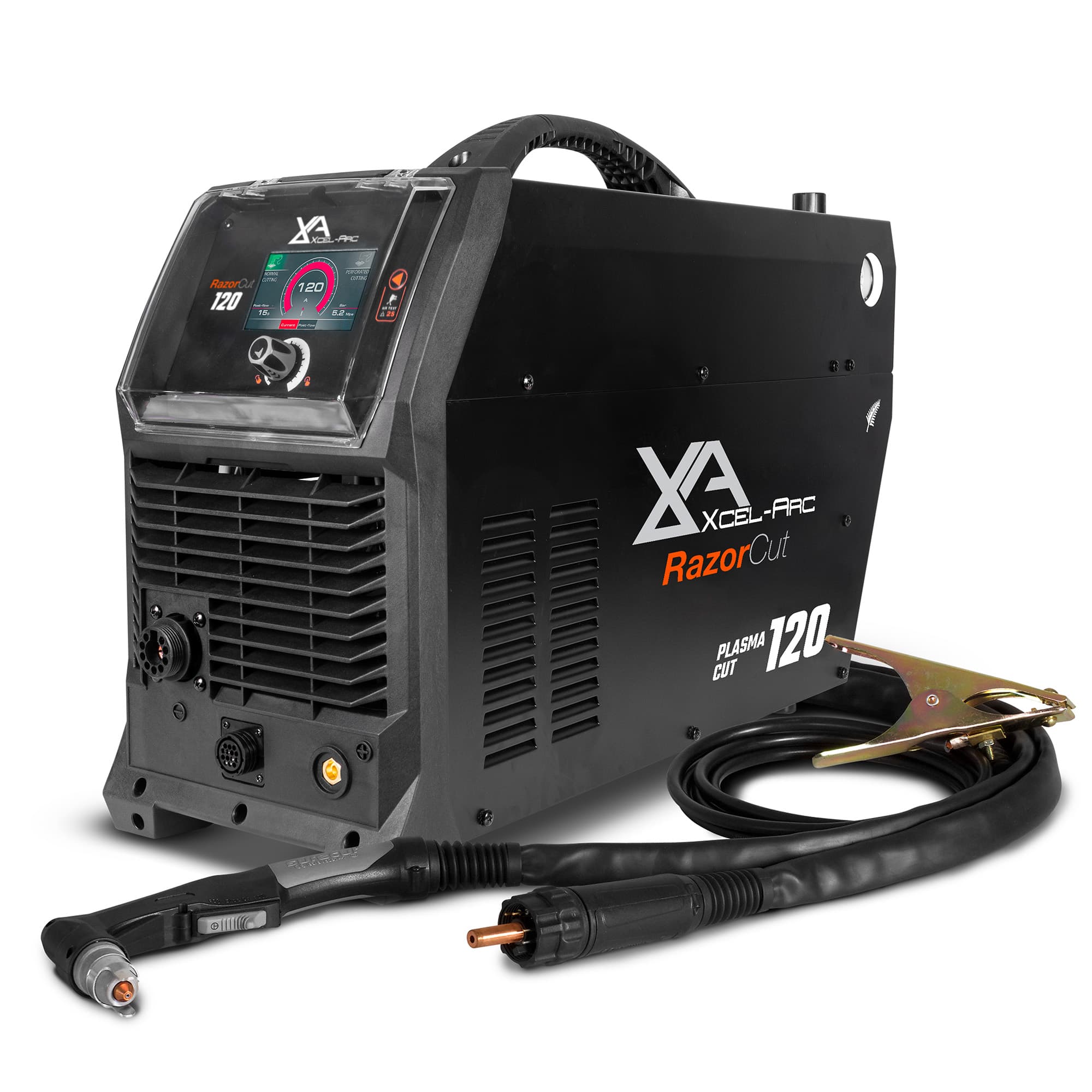

RAZOR™ CUT 120 PLASMA CUTTER
Find a storeRAZOR™ CUT 120 PLASMA CUTTER
415V THREE-PHASE | 45mm CLEAN CUT | 60mm SEVERANCE
The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from Xcel-Arc’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.
- CNC Connection
- Pilot Arc Start
- Digital Screen
- 45mm Clean Cut
- 60mm Severance
- 2T/4T Torch Controls
- Air Test
XA-CUT120RZ-K
THREE PHASE
415V Power
45mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
2T/4T TORCH CONTROLS
More comfort when cutting.

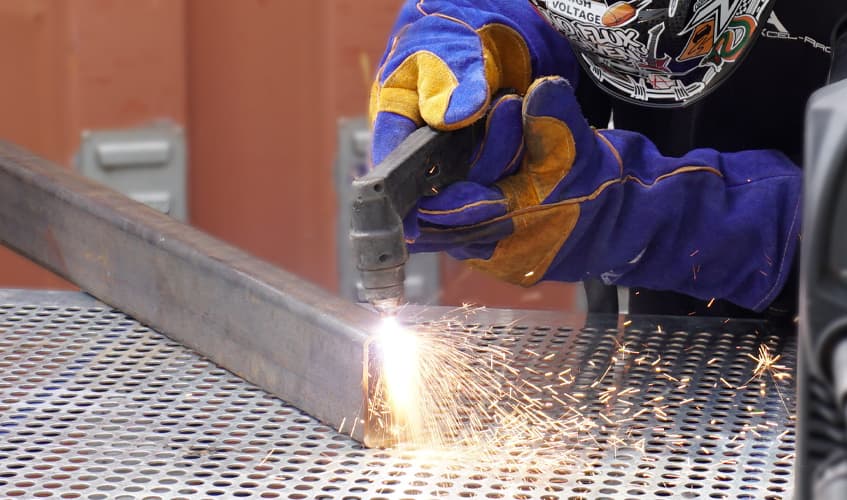

PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
Product No: XA-CUT120RZ-K
Machine Specifications
- Primary Input Voltage
- 415V Three Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 20
- Rated Output
- 112
- No Load Voltage (V)
- 420
- Protection Class
- IP21S
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 32 AMP
- Ieff (A)
- 26.0
- Insulation Class
- F
- Warranty (Years)
- 3
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-120A
- Plasma Cut Duty Cycle @ 40°C
- 60% @ 120A, 100%@100A
- Mild Steel Cut Thickness
- 45mm
- Mild Steel Severance Thickness
- 60mm
- Aluminium Cut Thickness
- 36mm
- Stainless Steel Cut Thickness
- 45mm
- Air Flow / Draw-off (l/min)
- 189
- Air Flow Pressure (bar)
- 5.17 (75 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Weight
- 24kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
Product No: XA-CUT120RZ-K
Machine Specifications
- Primary Input Voltage
- 415V Three Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 20
- Rated Output
- 112
- No Load Voltage (V)
- 420
- Protection Class
- IP21S
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 32 AMP
- Ieff (A)
- 26.0
- Insulation Class
- F
- Warranty (Years)
- 3
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-120A
- Plasma Cut Duty Cycle @ 40°C
- 60% @ 120A, 100%@100A
- Mild Steel Cut Thickness
- 45mm
- Mild Steel Severance Thickness
- 60mm
- Aluminium Cut Thickness
- 36mm
- Stainless Steel Cut Thickness
- 45mm
- Air Flow / Draw-off (l/min)
- 189
- Air Flow Pressure (bar)
- 5.17 (75 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Weight
- 24kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
