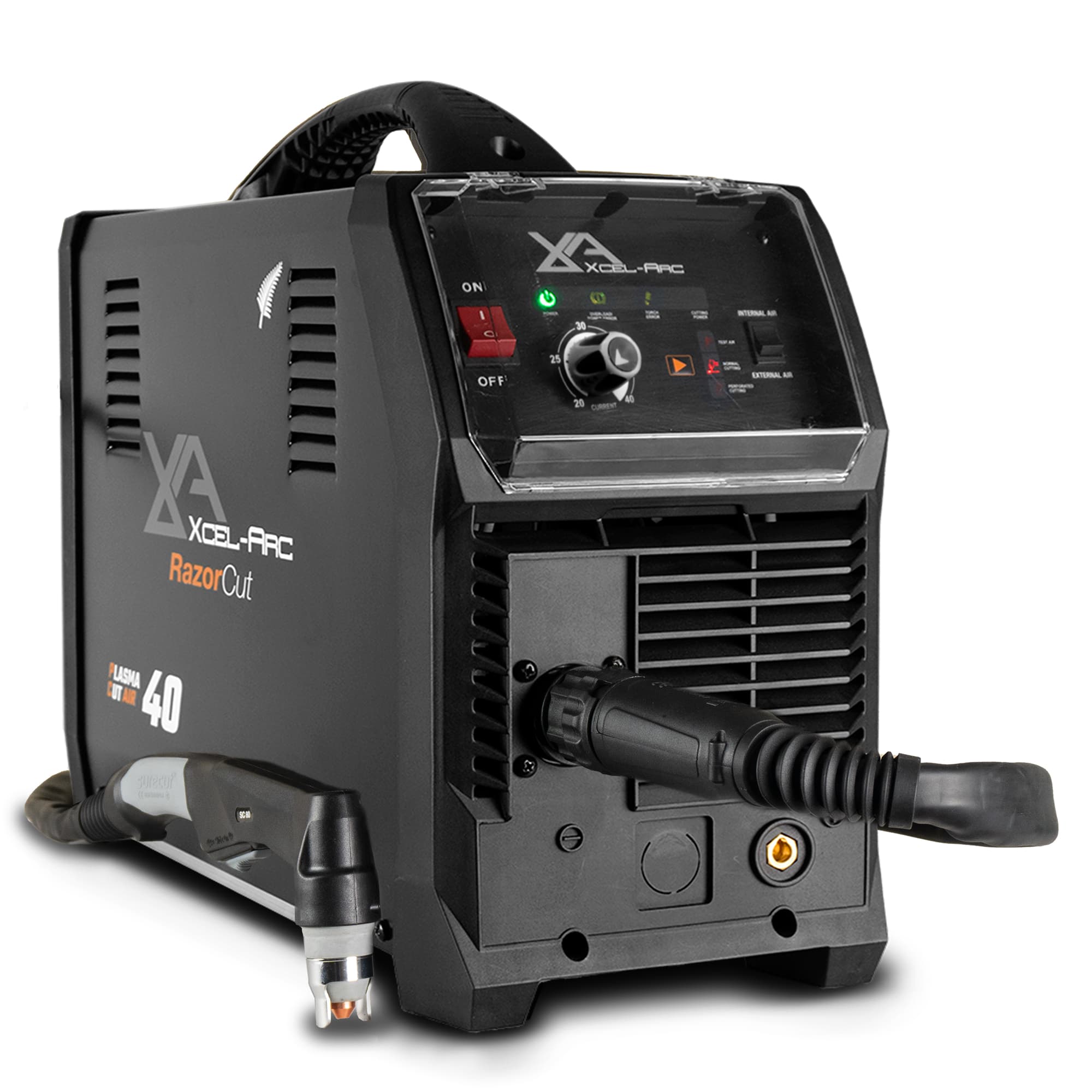

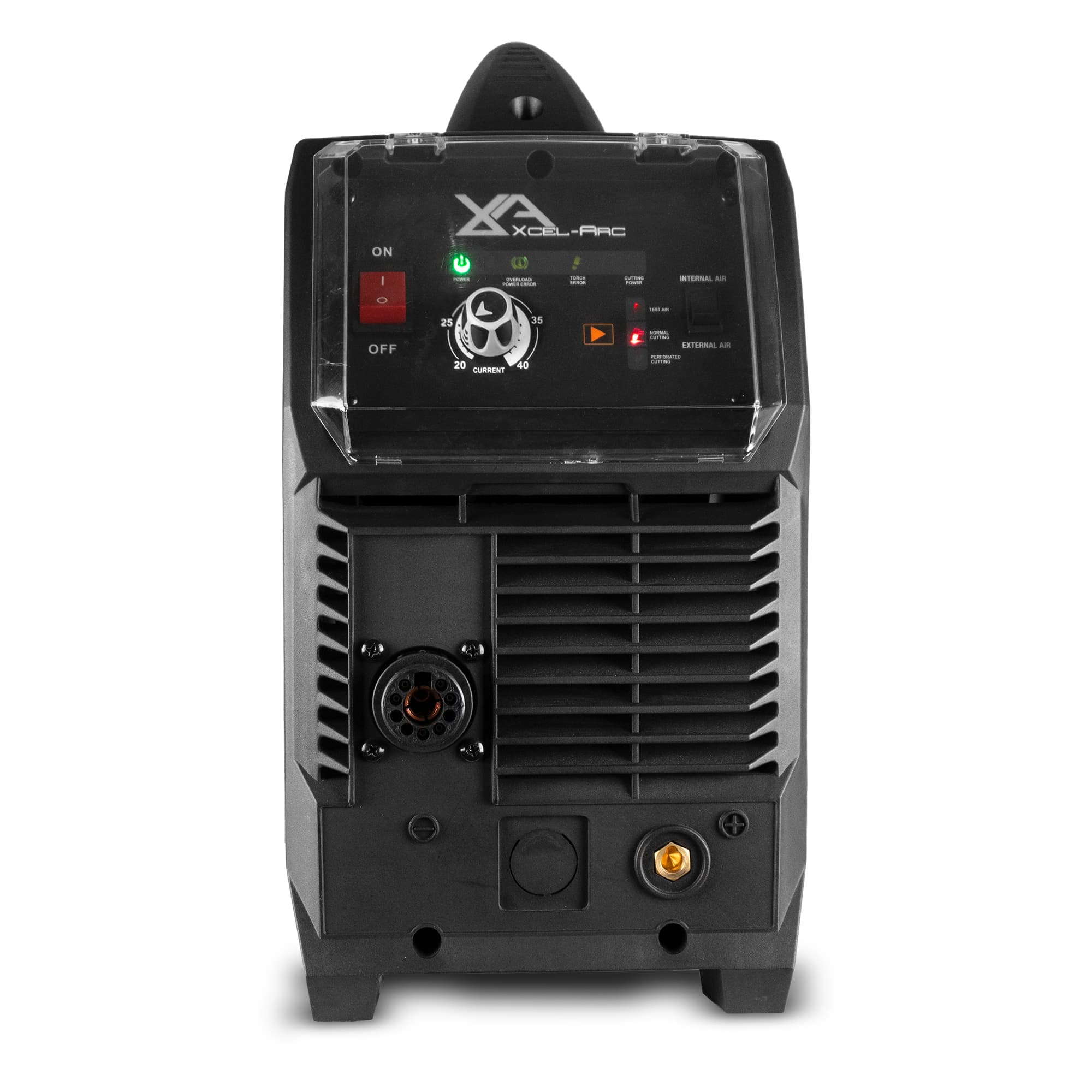

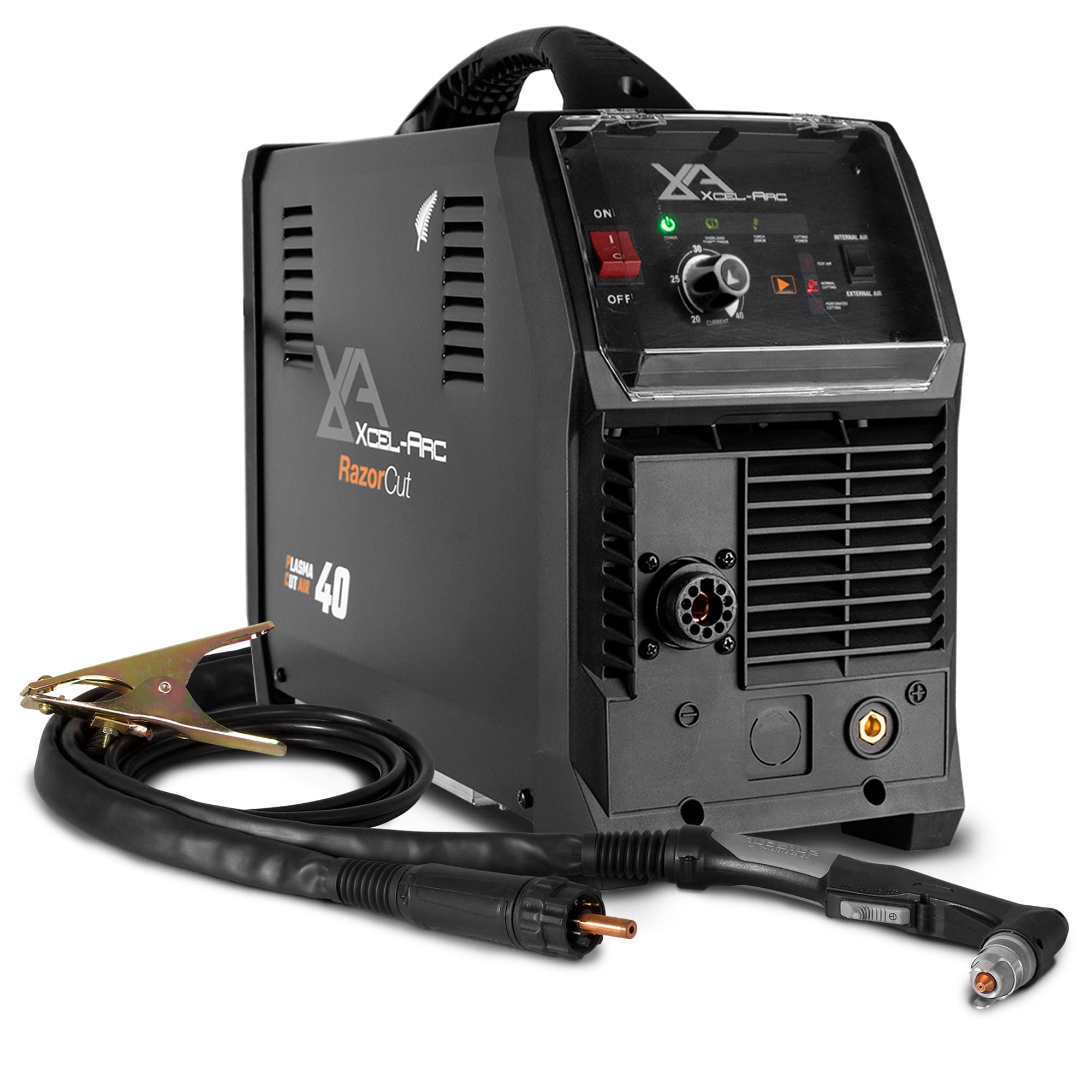

RAZOR™ CUT 40 Plasma Cutter
Find a storeRAZOR™ CUT 40 Plasma Cutter
This product has been discontinued
It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.
240V THREE-PHASE | 16 mm CLEAN CUT | 18 mm SEVERANCE – External Compressor
The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 12mm clean-cut and 14mm severance on the built-in air compressor, and 16mm clean-cut and 18mm severance on an external compressor.
XA-CUT40PC-K
SINGLE PHASE
230V Power
UP TO 16MM CLEAN CUT
Steel-Inbuilt Compressor
PILOT ARC START
Start cut without direct contact

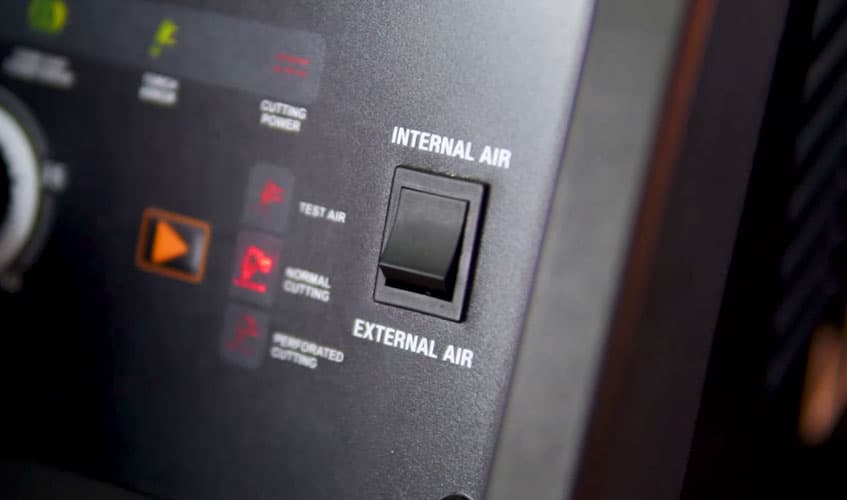

INTERNAL & EXTERNAL
Air Compressor
BUILT-IN AIR COMPRESSOR

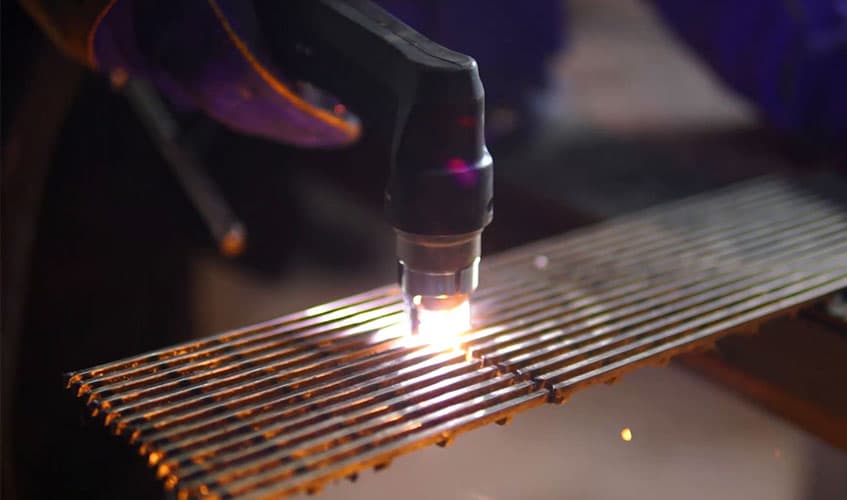

PERFORATED CUTTING MODE
PILOT ARC START
FEATURE VIDEO
Product No: XA-CUT40PC-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 Amps
- RATED INPUT POWER (kVA)
- 7.2
- Ieff (A)
- 15
- RATED OUTPUT
- 96V
- NO LOAD VOLTAGE (V)
- 210
- PROTECTION CLASS
- IP21
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 10
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 3
Size & Weight
- DIMENSIONS (mm)
- 510x210x380mm
- WEIGHT (kg)
- 18kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-40A
- PLASMA CUT DUTY CYCLE @ 40°C
- 25% @ 40A / 60% @ 26A / 100% @ 20A
- MILD STEEL CUT THICKNESS
- 10mm (INTERNAL) / 16mm (EXTERNAL)
- MILD STEEL SEVERANCE THICKNESS
- 12mm (INTERNAL) / 18mm (EXTERNAL)
- ALUMINIUM CUT THICKNESS
- 6mm (INTERNAL) / 8mm (EXTERNAL)
- ALUMINIUM SEVERANCE THICKNESS
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- STAINLESS STEEL CUT THICKNESS
- 6mm (INTERNAL) / 10mm (EXTERNAL)
- STAINLESS STEEL SEVERANCE THICKNESS
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- AIR FLOW DRAW OFF (L/min)
- 120
- AIR FLOW PRESSURE (Bar)
- 5.17 (75 psi)
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-CUT40PC-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 Amps
- RATED INPUT POWER (kVA)
- 7.2
- Ieff (A)
- 15
- RATED OUTPUT
- 96V
- NO LOAD VOLTAGE (V)
- 210
- PROTECTION CLASS
- IP21
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 10
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 3
Size & Weight
- DIMENSIONS (mm)
- 510x210x380mm
- WEIGHT (kg)
- 18kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-40A
- PLASMA CUT DUTY CYCLE @ 40°C
- 25% @ 40A / 60% @ 26A / 100% @ 20A
- MILD STEEL CUT THICKNESS
- 10mm (INTERNAL) / 16mm (EXTERNAL)
- MILD STEEL SEVERANCE THICKNESS
- 12mm (INTERNAL) / 18mm (EXTERNAL)
- ALUMINIUM CUT THICKNESS
- 6mm (INTERNAL) / 8mm (EXTERNAL)
- ALUMINIUM SEVERANCE THICKNESS
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- STAINLESS STEEL CUT THICKNESS
- 6mm (INTERNAL) / 10mm (EXTERNAL)
- STAINLESS STEEL SEVERANCE THICKNESS
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- AIR FLOW DRAW OFF (L/min)
- 120
- AIR FLOW PRESSURE (Bar)
- 5.17 (75 psi)
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
