RAZOR™ CUT 80 Plasma Cutter
Find a storeRAZOR™ CUT 80 Plasma Cutter
New
415V THREE-PHASE | 30 MM CLEAN CUT | 35mm SEVERANCE
Get all the power you need with this professional-grade plasma cutter, perfect for the worksite or workshop.
- 30mm clean cuts and 35mm cutting capacity
- The CNC connection means you can use this machine for every kind of plasma application
- Cut anything with the perforated cut mode
XA-RZCUT80-K
THREE PHASE
415V Power
30mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
2T/4T TORCH CONTROLS
More comfort when cutting.
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

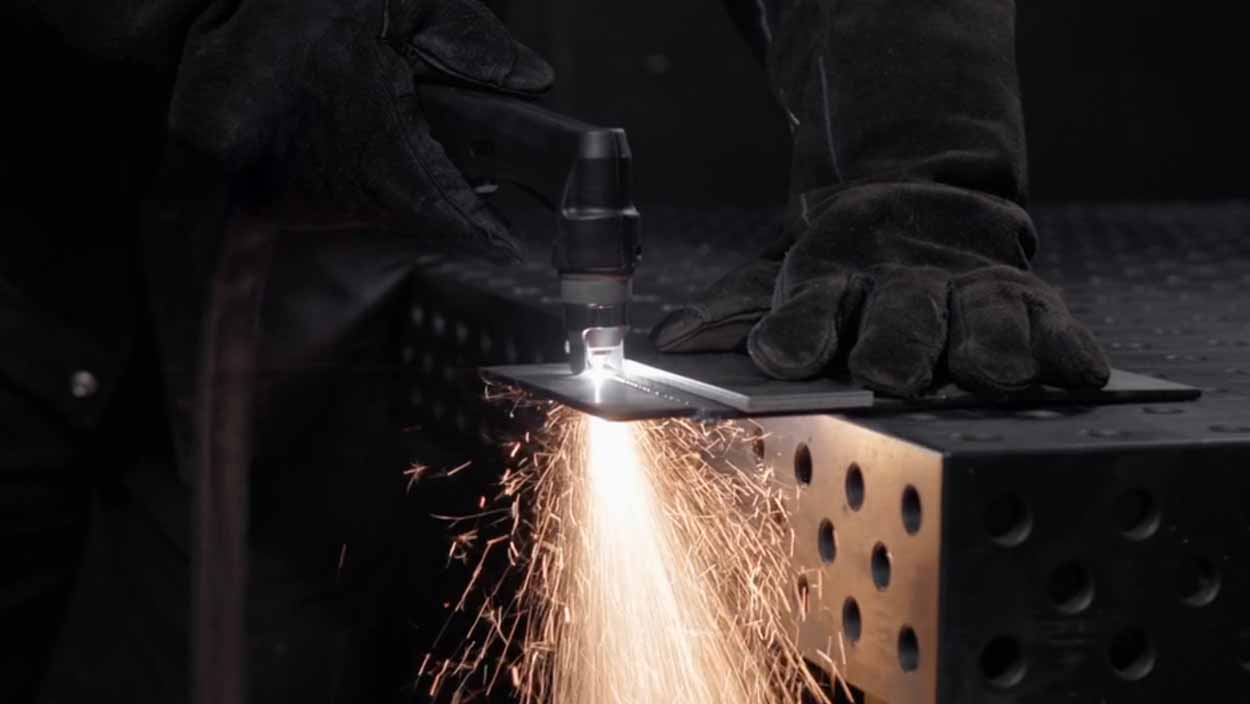

Cutting Capacity
Get a 25mm clean cut and a severance cut of 35mm on mild steel.
Get a 22mm clean cut and a severance cut of 30mm on stainless steel.
Get a 22mm clean cut and a severance cut of 30mm on aluminium.

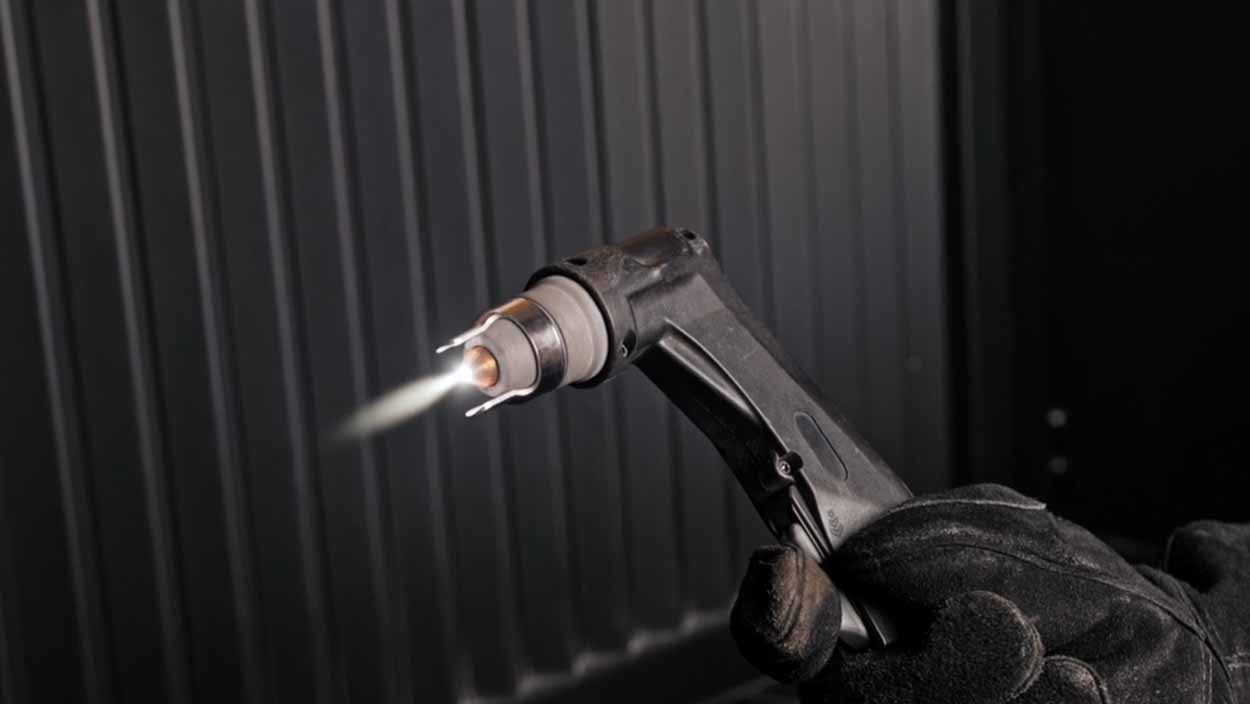

Pilot Arc Start
Start your arc on any surface: painted, greasy, or rusted, or don’t start on the surface at all. A pilot arc start will ignite the arc even from a short distance away, giving you better control and longer-lasting consumables.
Product No: XA-RZCUT80-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 415V Three Phase
- SUPPLY PLUG
- No plug supplied (20 AMP Recommended)
- Ieff (A)
- 13.0
- Imax (A)
- 19.0
- NO LOAD VOLTAGE (V)
- 325
- PROTECTION CLASS
- IP23S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 22
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 5
Size & Weight
- DIMENSIONS (mm)
- 626x230x416mm
- WEIGHT (kg)
- 22kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-80A
- PLASMA CUT DUTY CYCLE @ 40°C
- 40% @ 80A | 60% @ 66A | 100% @ 51A
- MILD STEEL CUT THICKNESS
- 30mm
- MILD STEEL SEVERANCE THICKNESS
- 35mm
- ALUMINIUM CUT THICKNESS
- 16mm
- ALUMINIUM SEVERANCE THICKNESS
- 20mm
- STAINLESS STEEL CUT THICKNESS
- 16mm
- STAINLESS STEEL SEVERANCE THICKNESS
- 20mm
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- CNC CONNECTION
- Yes
Product No: XA-RZCUT80-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 415V Three Phase
- SUPPLY PLUG
- No plug supplied (20 AMP Recommended)
- Ieff (A)
- 13.0
- Imax (A)
- 19.0
- NO LOAD VOLTAGE (V)
- 325
- PROTECTION CLASS
- IP23S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 22
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 5
Size & Weight
- DIMENSIONS (mm)
- 626x230x416mm
- WEIGHT (kg)
- 22kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-80A
- PLASMA CUT DUTY CYCLE @ 40°C
- 40% @ 80A | 60% @ 66A | 100% @ 51A
- MILD STEEL CUT THICKNESS
- 30mm
- MILD STEEL SEVERANCE THICKNESS
- 35mm
- ALUMINIUM CUT THICKNESS
- 16mm
- ALUMINIUM SEVERANCE THICKNESS
- 20mm
- STAINLESS STEEL CUT THICKNESS
- 16mm
- STAINLESS STEEL SEVERANCE THICKNESS
- 20mm
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- CNC CONNECTION
- Yes
