RAZORSHIELD Digital Welding Mask & Goggle Kit

Name: RAZORSHIELD Digital Welding Mask & Goggle Kit
Brand: Xcel-Arc
SKU: XA-SHIELD

The new RazorShield from Xcel-Arc is an excellent low-profile solution for welding in confined spaces where access with traditional welding helmets is limited. Ideal for all welding work from industrial to hobby applications, the RazorShield can also be worn in conjunction with a hard hat, making it ideal for construction and site welding work.

The digitally controlled Auto-Darkening Goggles are easily detached from the protective faceshield, allowing them to be used separately when required.

XA-SHIELD

Find a store Enquire

110 x 40mm

View Size.

5-13

Shade Control.

2 ARC SENSORS

Constantly monitor the arc.

REMOVEABLE MASK

FOR USE WHEN GRINDING

ELITEVISION™ Lens Technology

Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding. Click and slide the icon to see the difference.

Drag the handle to compare.

Lightweight & Compact

Allows welding in tight spaces where standard welding helmets are limited in space. The mask is also detachable from the goggles, allowing for even more versatility.

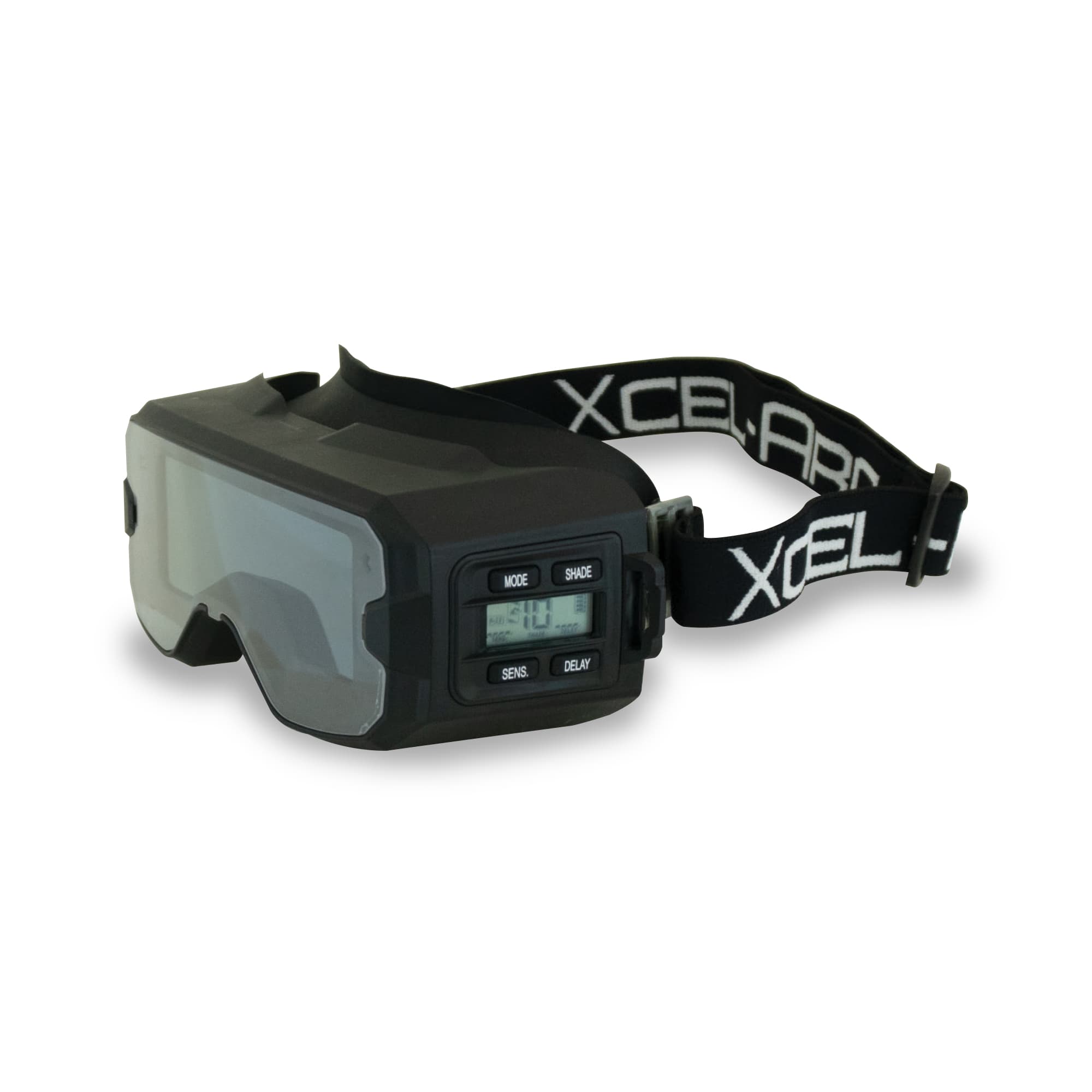

Welding Goggles Lightweight and portable

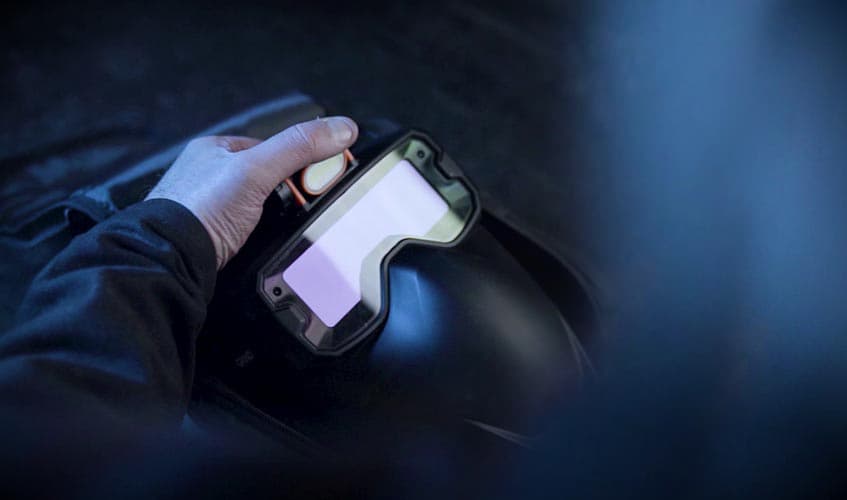

2 Arc Sensors

2 arc sensors constantly monitor the arc, allowing for consistent shade control so you can focus on your welds.

Room For Respirator

Designed to be worn with an Elipse® Half-Mask P2 Respirator, providing a minimum 99.95% filtration against odours, dust, all types of fumes, oil and water mists and micro-organisms.

UV/IR Ray Protection

In combination with the Welding Hood, the Welding Goggles and Mask provide protection against UV/IR rays.

Product No: XA-SHIELD

HELMET SPECIFICATIONS

FILTER DIMENSIONS: 171.5x77.5mm
VIEW SIZE: 110 x 40mm
ARC SENSORS: 2
CLASSIFICATION: 1/1/1/2
LIGHT STATE: 3
DARK STATE: 5-9 / 9-13
UV/IR PROTECTION: DIN15
TIME FROM LIGHT TO DARK: 0.08ms
TIME FROM DARK TO LIGHT: 0.001 - 0.9ms
SENSITIVITY DELAY: Adjustable (External)
POWER SUPPLY: Solar Cells & CR22450 Battery
WARRANTY: 2 Years
OPERATING TEMPERATURE: -10˚C to 65˚C
STORAGE TEMPERATURE: -20˚C to 85˚C
SHADE CONTROL: Yes (External)
GRIND MODE: Yes (External)
STANDARDS: AS/NZS 1337.1:2010, AS/NZS 1338.1:2012

REPLACABLE PARTS

OUTER LENS: XA-SH3
INNER LENS: XA-SH4
HARNESS: XA-SH6

Product No: XA-SHIELD

HELMET SPECIFICATIONS

FILTER DIMENSIONS: 171.5x77.5mm
VIEW SIZE: 110 x 40mm
ARC SENSORS: 2
CLASSIFICATION: 1/1/1/2
LIGHT STATE: 3
DARK STATE: 5-9 / 9-13
UV/IR PROTECTION: DIN15
TIME FROM LIGHT TO DARK: 0.08ms
TIME FROM DARK TO LIGHT: 0.001 - 0.9ms
SENSITIVITY DELAY: Adjustable (External)
POWER SUPPLY: Solar Cells & CR22450 Battery
WARRANTY: 2 Years
OPERATING TEMPERATURE: -10˚C to 65˚C
STORAGE TEMPERATURE: -20˚C to 85˚C
SHADE CONTROL: Yes (External)
GRIND MODE: Yes (External)
STANDARDS: AS/NZS 1337.1:2010, AS/NZS 1338.1:2012

REPLACABLE PARTS

OUTER LENS: XA-SH3
INNER LENS: XA-SH4
HARNESS: XA-SH6
