XA-RZTIG220PFC-T2

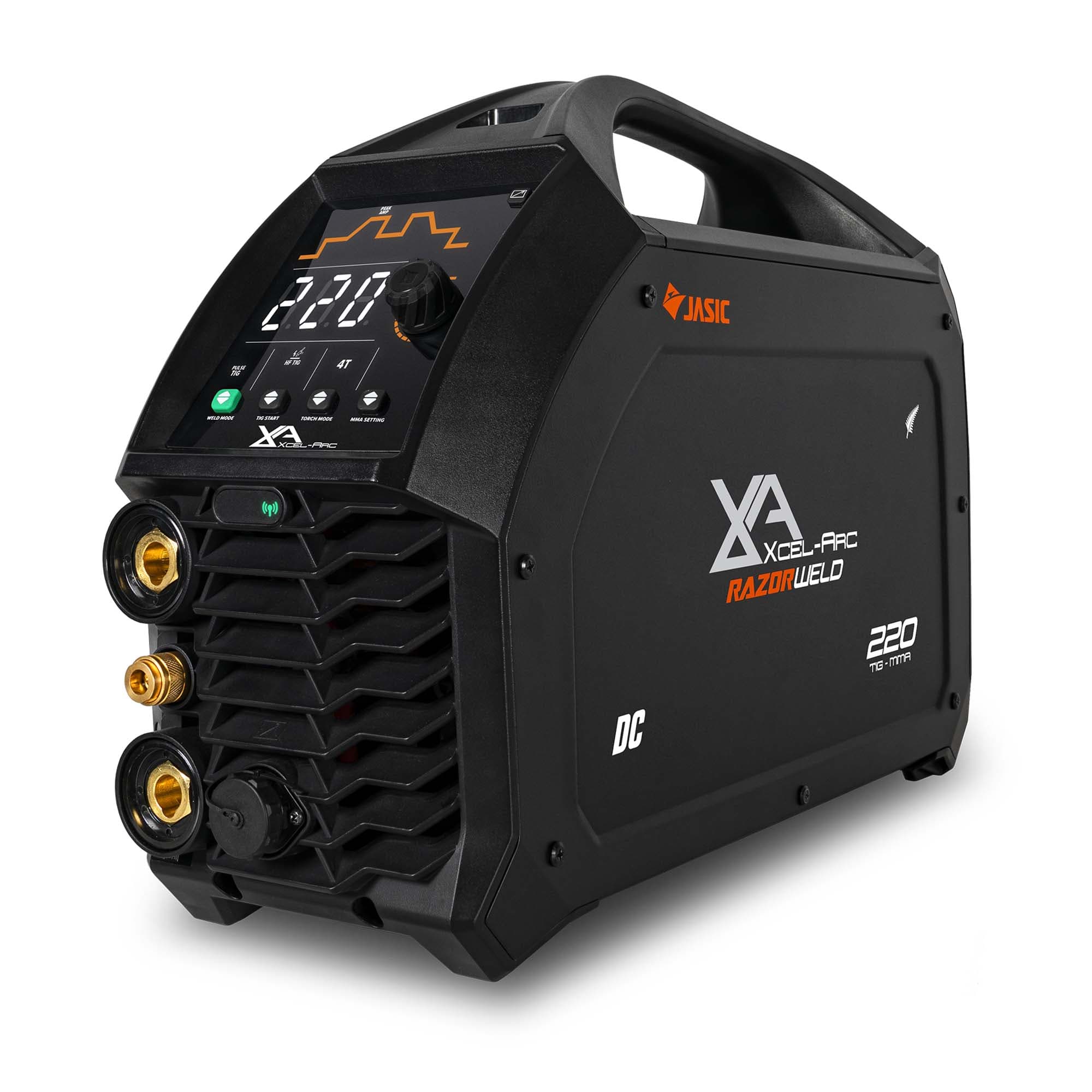

RAZORWELD™ 220 DC PFC TIG Welder

This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.

Get the full DC TIG welding cycling including all the pulse functions
With new PFC components, this machine can be run on a 10A plug

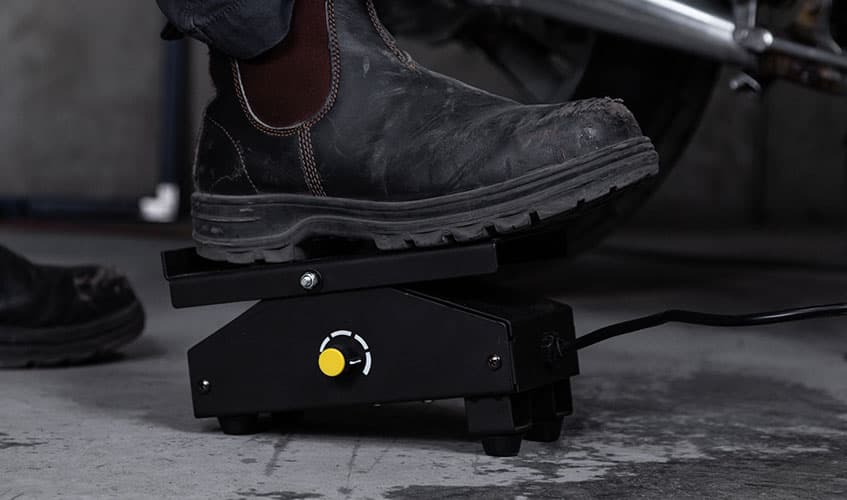

Connect a foot pedal to the machine for extra versatility and convenience
A 5-year warranty to reflect our confidence in this machine

XA-RZTIG220PFC-T2

FIND A STORE

ADD TO WISHLIST

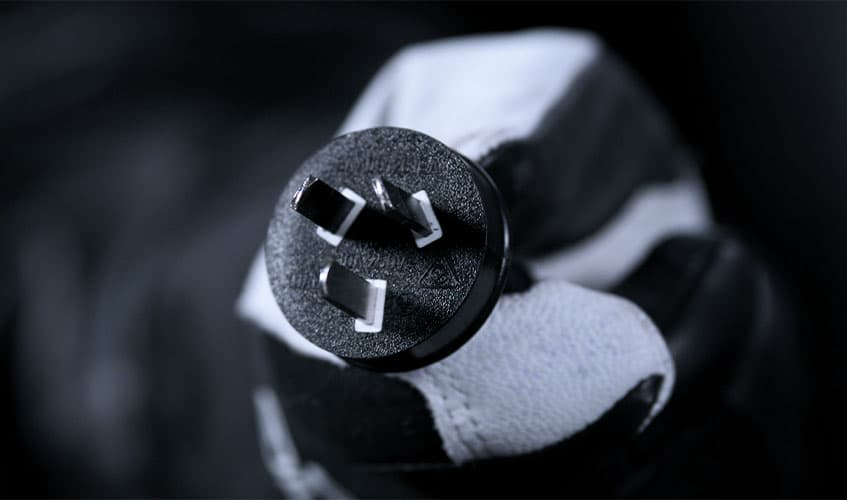

10 AMP PLUG

Connect to a 10 AMP outlet.

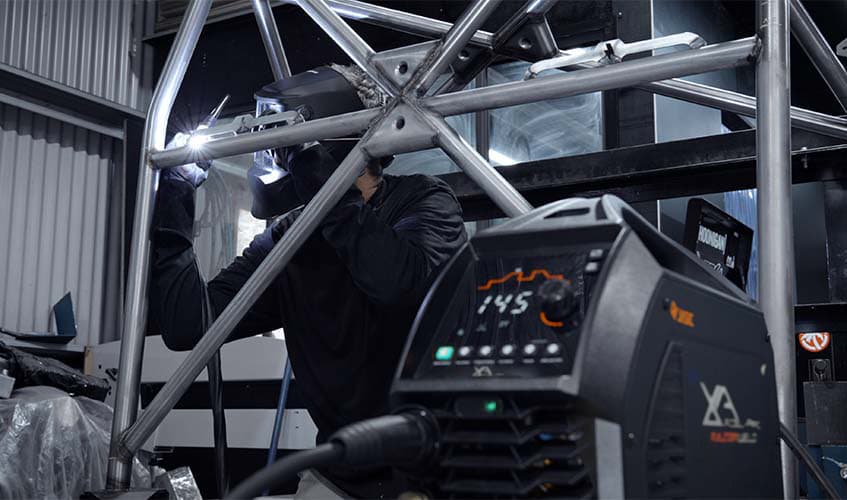

DC HIGH FREQUENCY TIG

FULL TIG WELD CYCLE CONTROL.

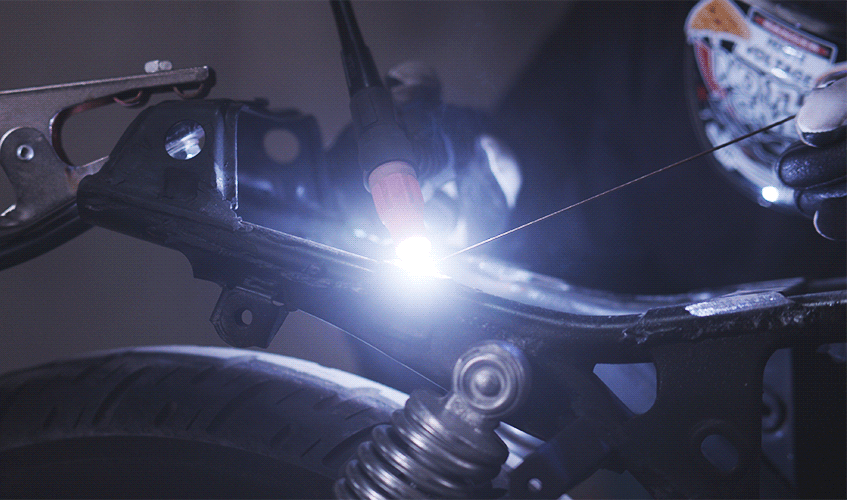

PULSE FUNCTION

MINIMISE DISTORTION ON THE WELDED MATERIAL.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

Product No: XA-RZTIG220PFC-T2

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.8

RATED OUTPUT

5-220A

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC HF TIG / DC Pulse

TIG WELDING CURRENT RANGE

5-220A

TIG DUTY CYCLE @ 40°C

20% @ 220A, 60% @ 127A, 100% @ 98A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

Size & Weight

DIMENSIONS (mm)

310×150×460

WEIGHT (kg)

8.9kg

MACHINE FEATURES

VRD

Yes

FOOT CONTROL CONNECTION

YES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

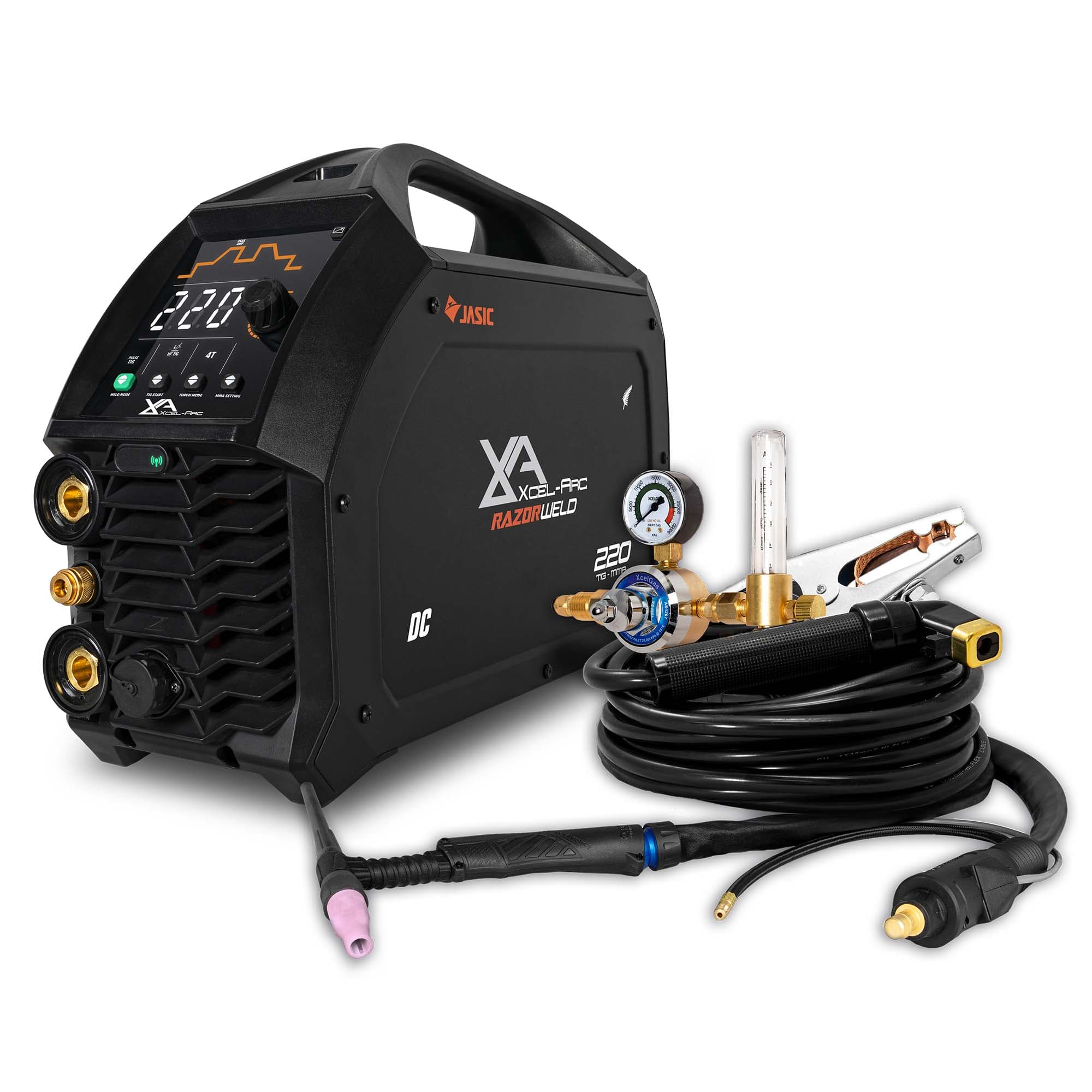

RAZORWELD™ 200 DC PFC TIG Welder
ARC T2FX Flexi Tig Torch x 8m
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD TIG220 DC PFC Info Sheet

RAZORWELD TIG220 DC PFC Manual

Xcel-Arc is pleased to offer a 5-year warranty on RAZORWELD™ 220 DC PFC TIG Machine*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only

RAZORWELD™ 220 DC PFC TIG Welder

RAZORWELD™ 220 DC PFC TIG Welder

10 AMP PLUG

DC HIGH FREQUENCY TIG

PULSE FUNCTION

THERMAL OVERLOAD PROTECTION

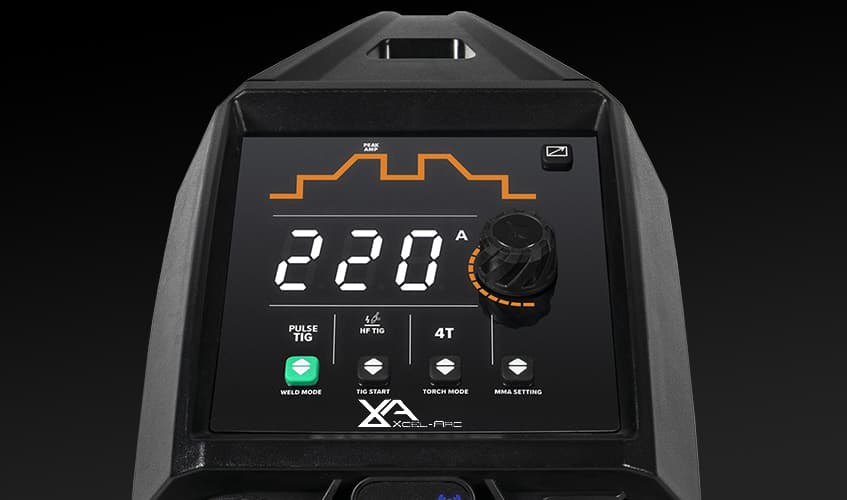

HD BACKLIT INTERFACE

PULSE TIG

10A PLUG

HIGH-FREQUENCY TIG

FOOT CONTROL READY

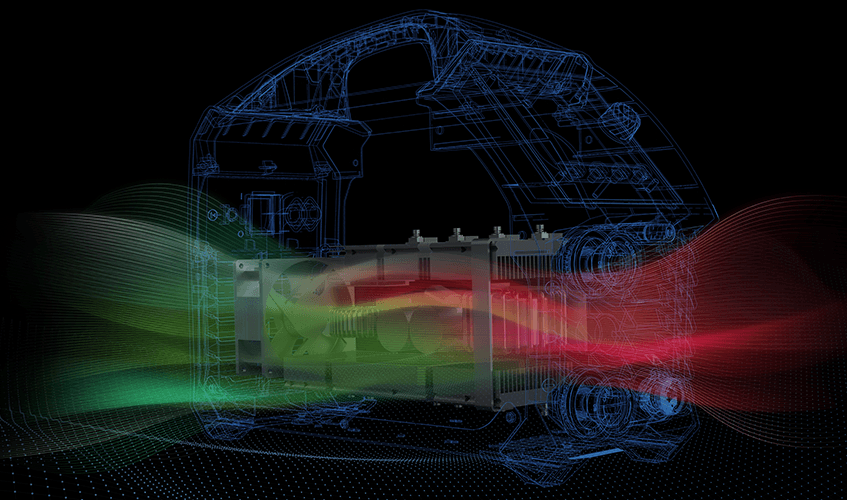

SMART FAN
