XA-MIG195RZMTS-K

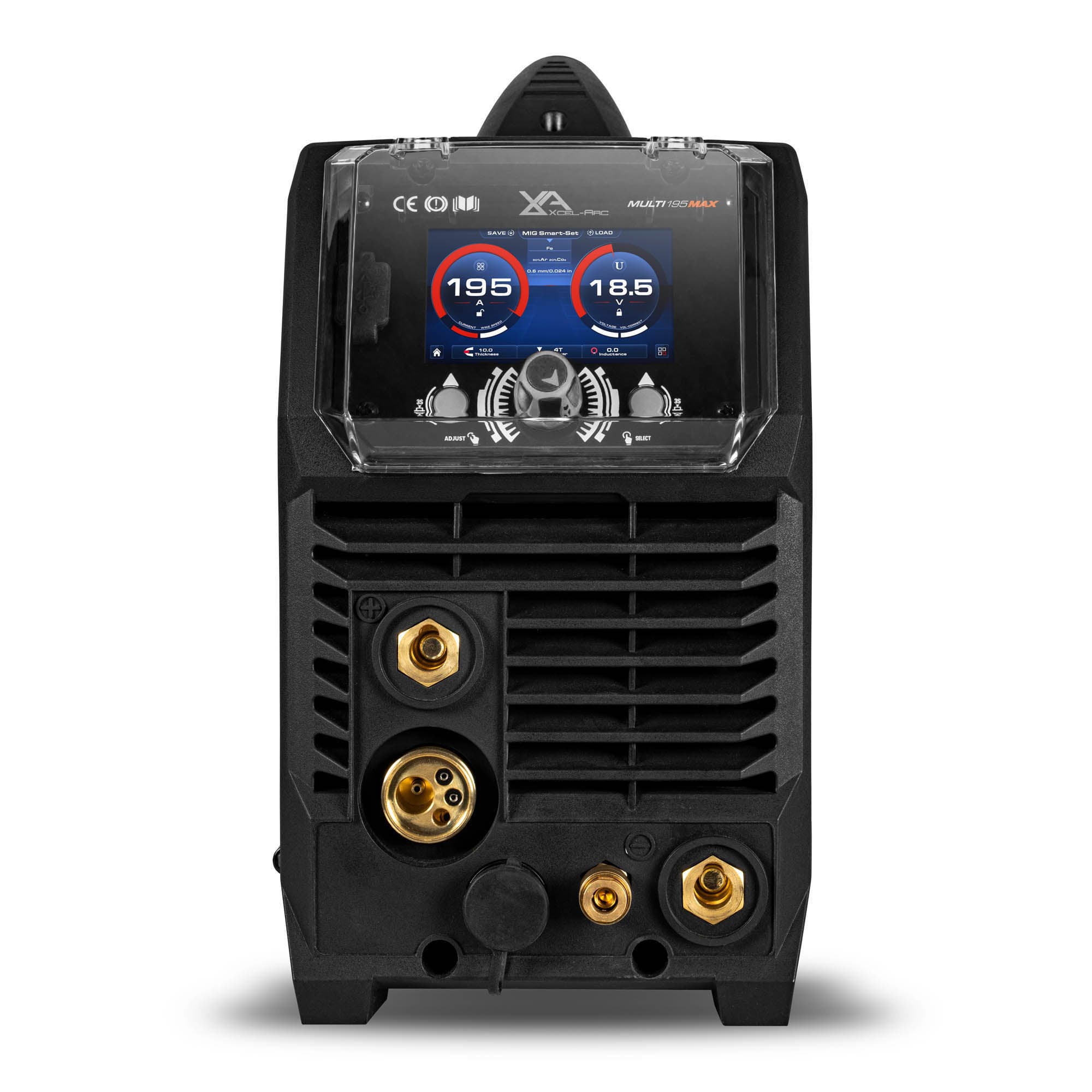

RAZORWELD™ Multi 195 MAX MIG/TIG/MMA WELDER

The RAZORWELD™ MULTI 195 MAX is now out, the latest addition to our RAZORWELD range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.

XA-MIG195RZMTS-K

FIND A STORE

ADD TO WISHLIST

10AMP PLUG

Connect to any 10 AMP outlet.

3 IN 1 MULTIPROCESS

WELD IN MIG, TIG AND STICK.

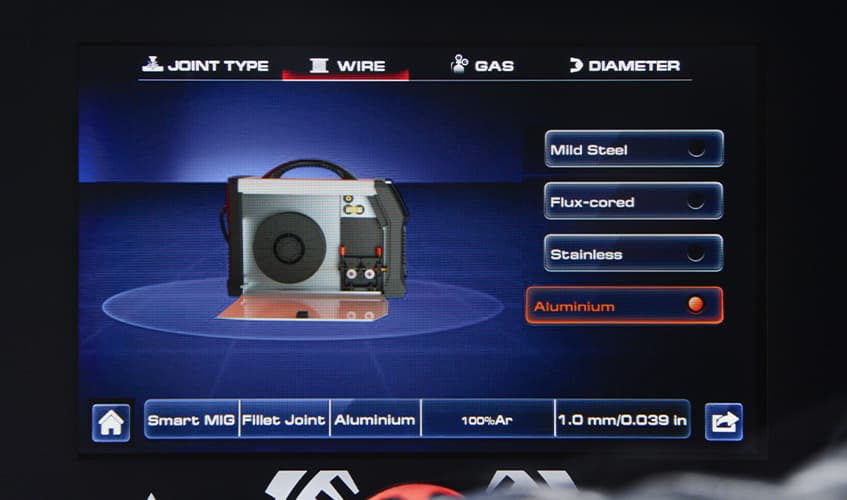

100+ SYNERGIC PROGRAMS

JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.

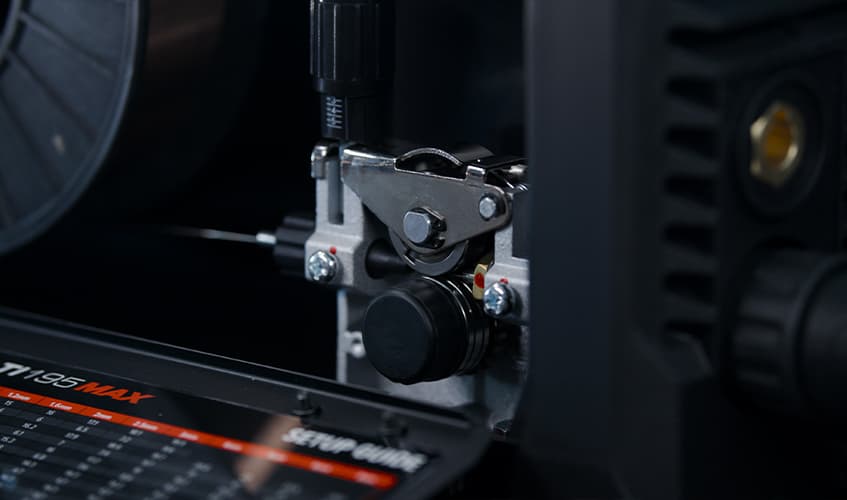

DIGITAL GEARED WIRE DRIVE

FOR ACCURATE WIRE FEEDING.

Product No: XA-MIG195RZMTS-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

8.9

RATED OUTPUT

25A/15V - 195A/23.8V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21

INSULATION CLASS

MINIMUM GENERATOR (kVA)

8.5

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

25-195A

MIG DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-6mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC High-Frequency

TIG WELDING CURRENT RANGE

5-195A

TIG DUTY CYCLE @ 40°C

30% @ 195A / 60% @ 138A / 100% @ 107A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

5-195A

STICK DUTY CYCLE @ 40°C

15% @ 195A / 60% @ 98A / 100% @ 76A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

Size & Weight

DIMENSIONS (mm)

470x190x350mm

WEIGHT (kg)

11.8kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

FOOT CONTROL CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

CRATER CURRENT CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes

RAZORWELD™ Multi 195 MAX MIG/TIG/MMA Welder
4m M15 MIG Torch
4m XA17 TIG Torch
4m Earth Lead & Arc Lead
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD™ Multi 195 MAX Info Sheet

RAZORWELD™ Multi 195 MAX Manual

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
