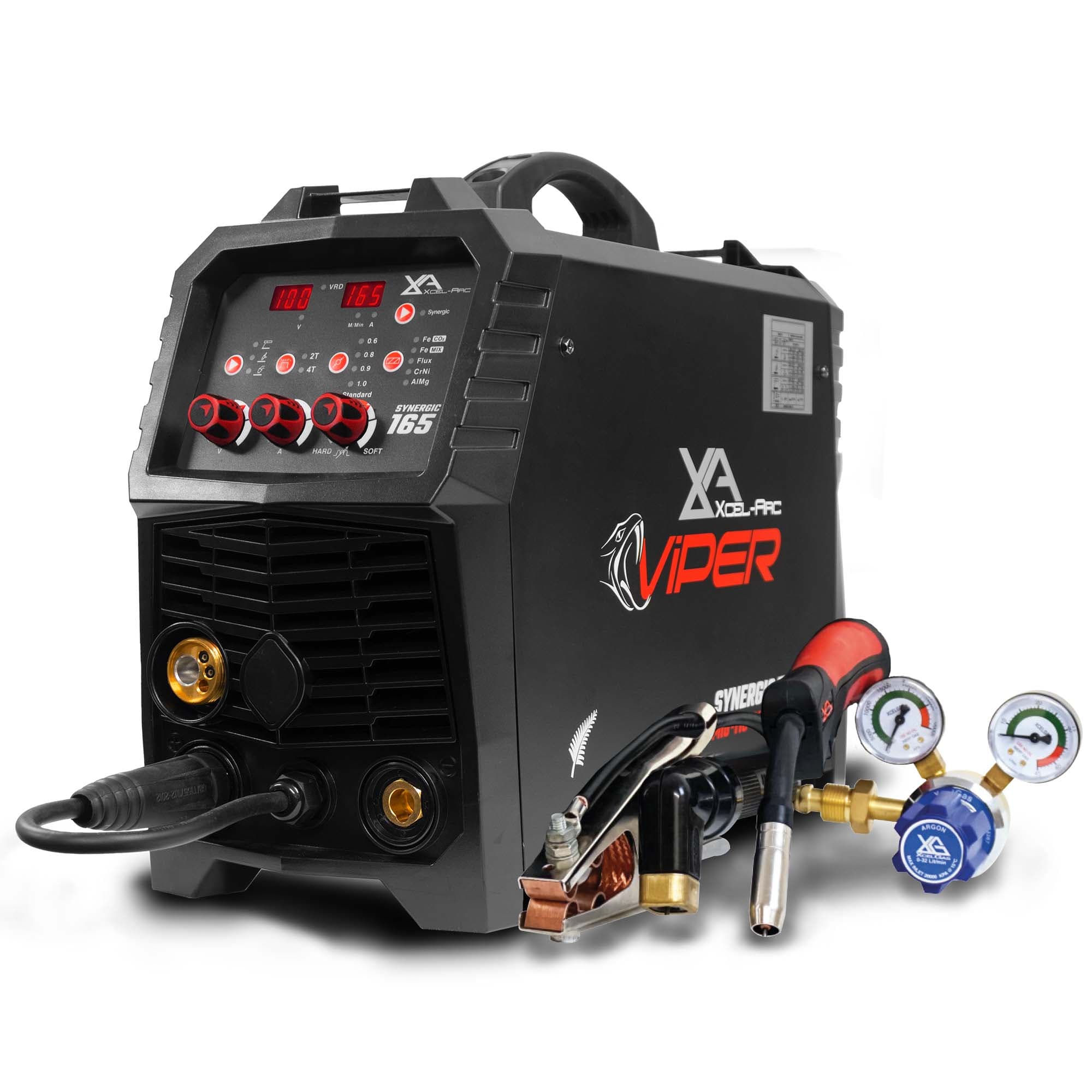

Get greater control over your welds with the VIPER™ 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.
Connect to any standard outlet.
TAKE THE GUESSWORK OUT OF SETUP
Weighing just 9.8kg
Easily run mild steel & flux-cored MIG wire.

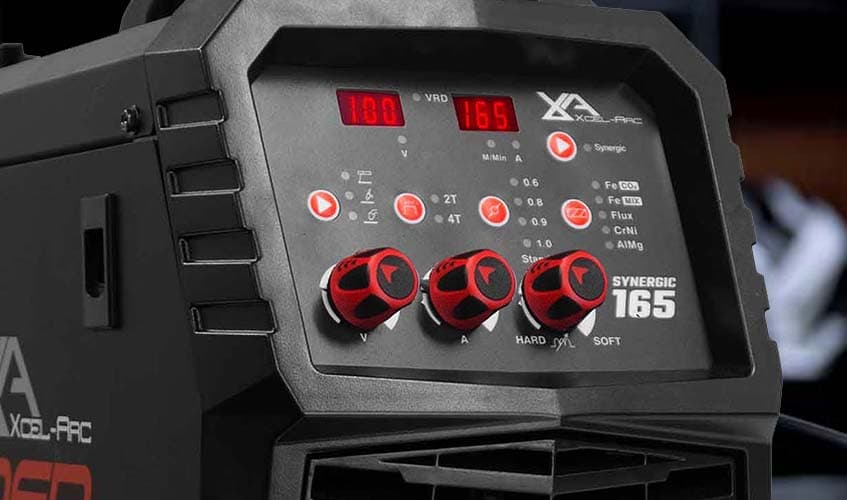

The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and type,
and adjust your amperage to suit your workpiece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

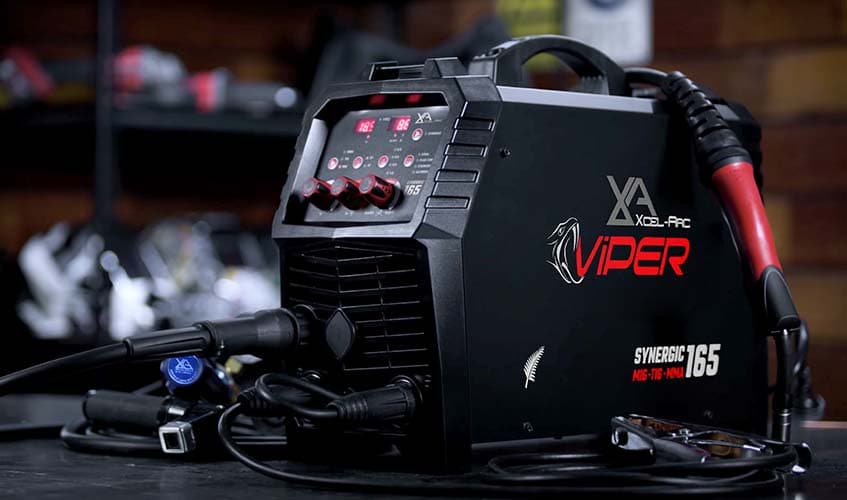

Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.
230V Single Phase
10 AMP
5.9
9.8
IP21S
H
0.72
35/50
AS/NZ60974-1
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
2
30-165A
10% @ 165A
0.6-0.9mm
5kg
1-8mm
30/22
DC Lift Arc
20-160A
10% @ 160A
1-6mm
20-140A
10% @ 140A
2.5-4.0mm
2-8mm
500x210x385mm
10kg
Standard
Here you’ll find the latest manuals, guides & product/parts information.
Xcel-Arc is pleased to offer a 2-year warranty on the VIPER™ 165*.
Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.
*Please note warranty only applies to the power source only
