XA-TIG200PRZ-T2

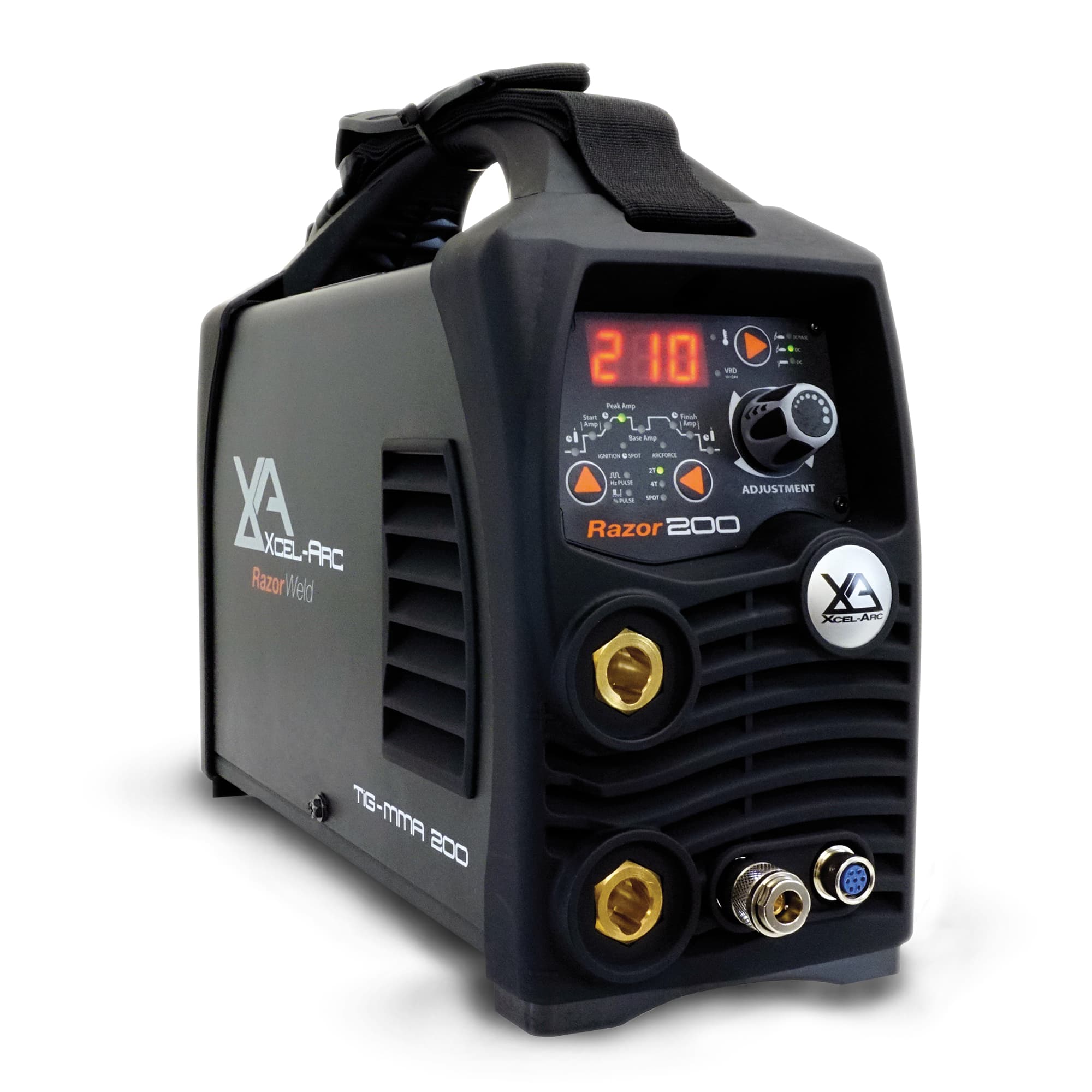

RAZORWELD™ 200 DC TIG Welder

The RAZORWELD™ 200 DC gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

Tailor your TIG settings with a wide range of controllable parameters including Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post-Gas Time.

XA-TIG200PRZ-T2

FIND A STORE

ADD TO WISHLIST

15 AMP PLUG

Connect to a 15 AMP outlet.

DC HIGH FREQUENCY TIG

Contactless Arc Starting

PULSE FUNCTION

Minimise distortion on the welded material.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

Product No: XA-TIG200PRZ-T2

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

7.0

Ieff (A)

14.6

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

9-75

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC HF TIG / DC Pulse

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

25% @ 200A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-180A

STICK DUTY CYCLE @ 40°C

25% @ 180A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

ARC FORCE

0-180

Size & Weight

DIMENSIONS (mm)

365x135x277mm

WEIGHT (kg)

6.5kg

MACHINE FEATURES

VRD

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

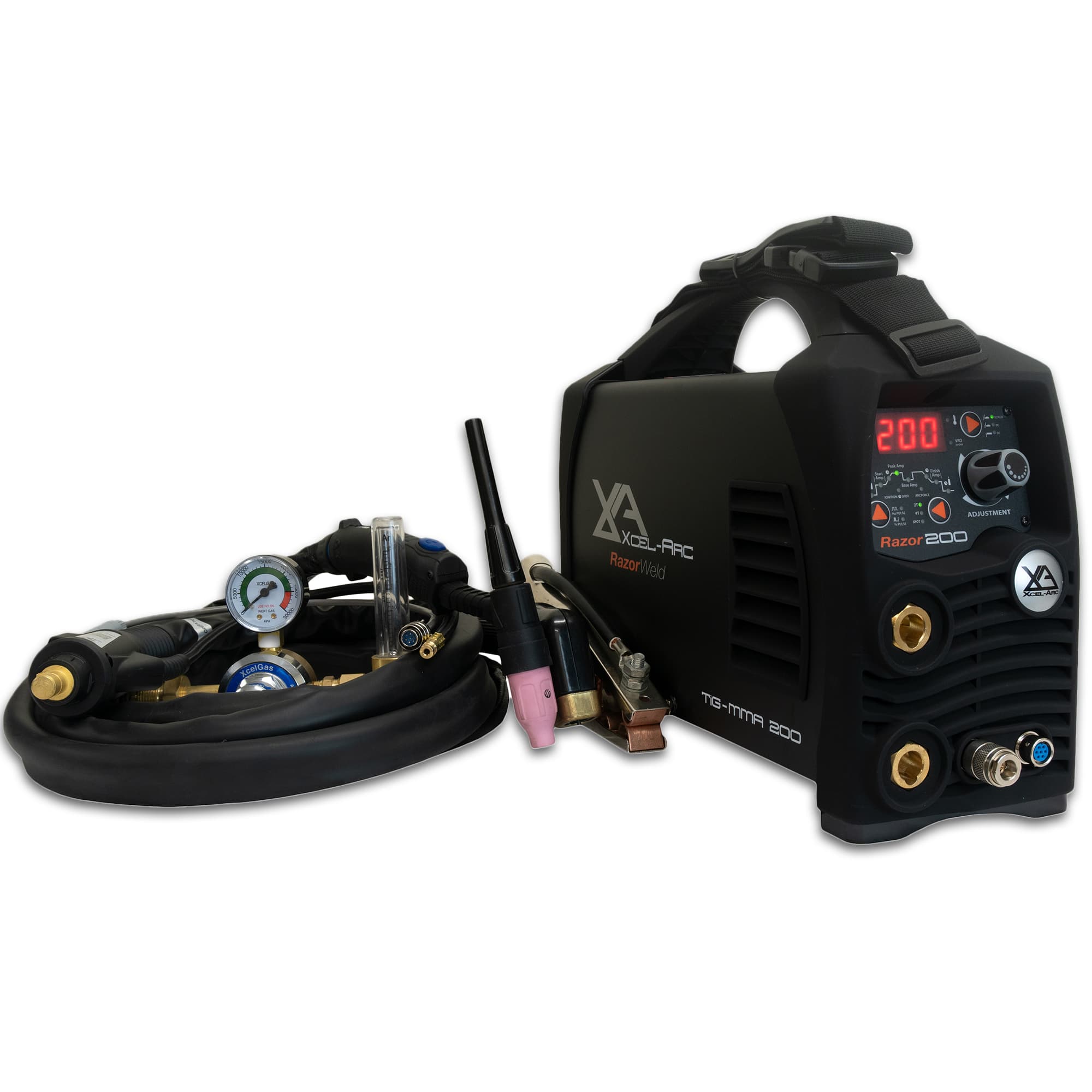

RAZORWELD™ 200 DC TIG Welder
ARC T2FX Flexi Tig Torch x 8m
Arc Set 25mm x 4m
Argon Regulator
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD TIG200 DC Info Sheet

RAZORWELD TIG200PRZ Manual

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
