RAZORWELD™ 200 MIG/TIG/STICK Welder
Find a storeRAZORWELD™ 200 MIG/TIG/STICK Welder
This product has been discontinued
It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.
15 AMP PLUG | GEARED WIRE DRIVE | SPOOL GUN READY

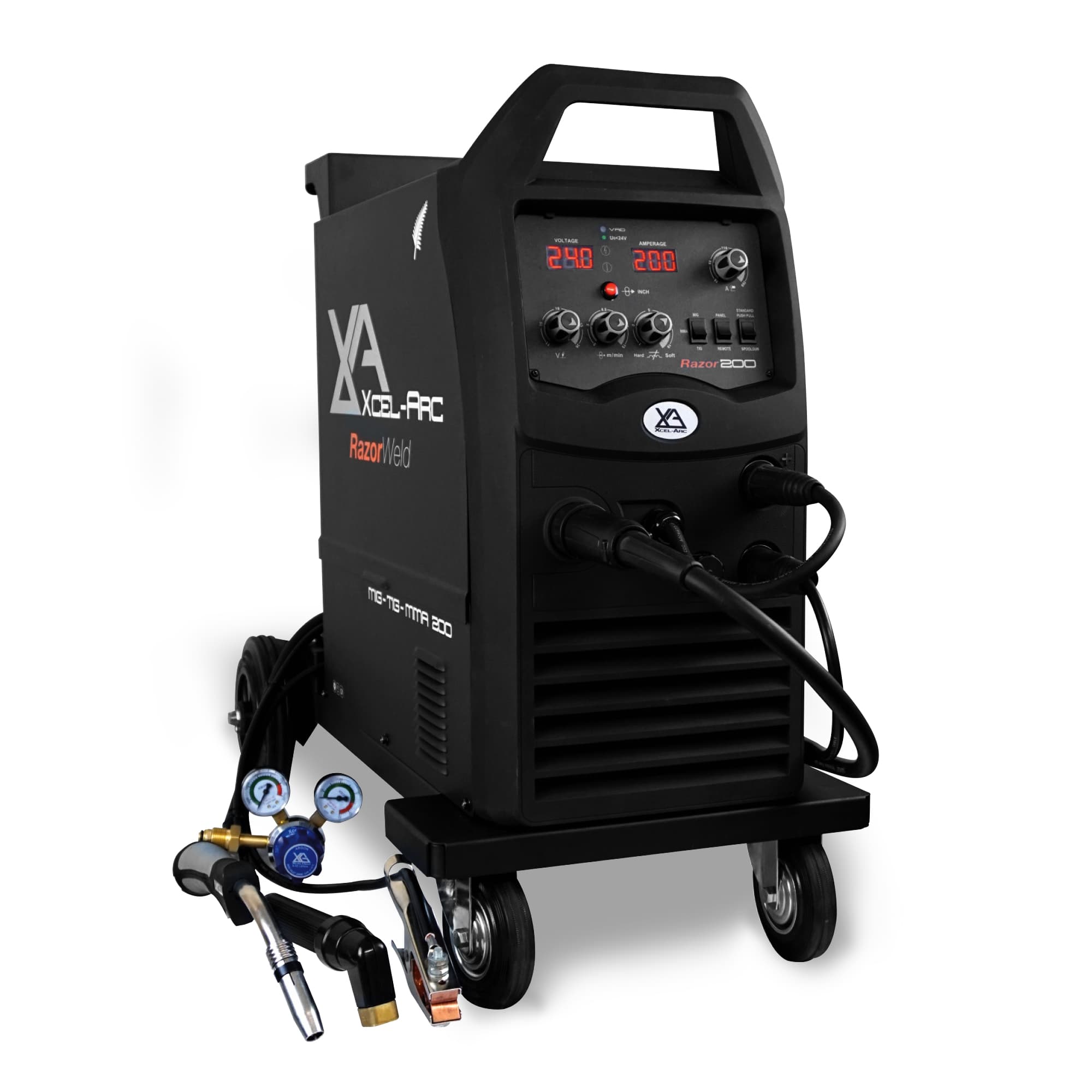

The RAZORWELD™ 200WRZ is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 200WRZ is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZORWELD™ Work Shop series is designed for superior performance, offering the highest quality of welds from Xcel Arc’s range.
XA-MIG200WRZ-K
15 AMP PLUG
CONNECT TO A 15 AMP OUTLET.
SPOOL GUN READY
For softer wires, such as Aluminium.
LARGE WIRE SPOOL CAPACITY
Fits 200mm & 300mm wire spools.
GEARED WIRE DRIVE
For smoother wire feeding.
MULTI PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
GEARED WIRE DRIVE
This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.

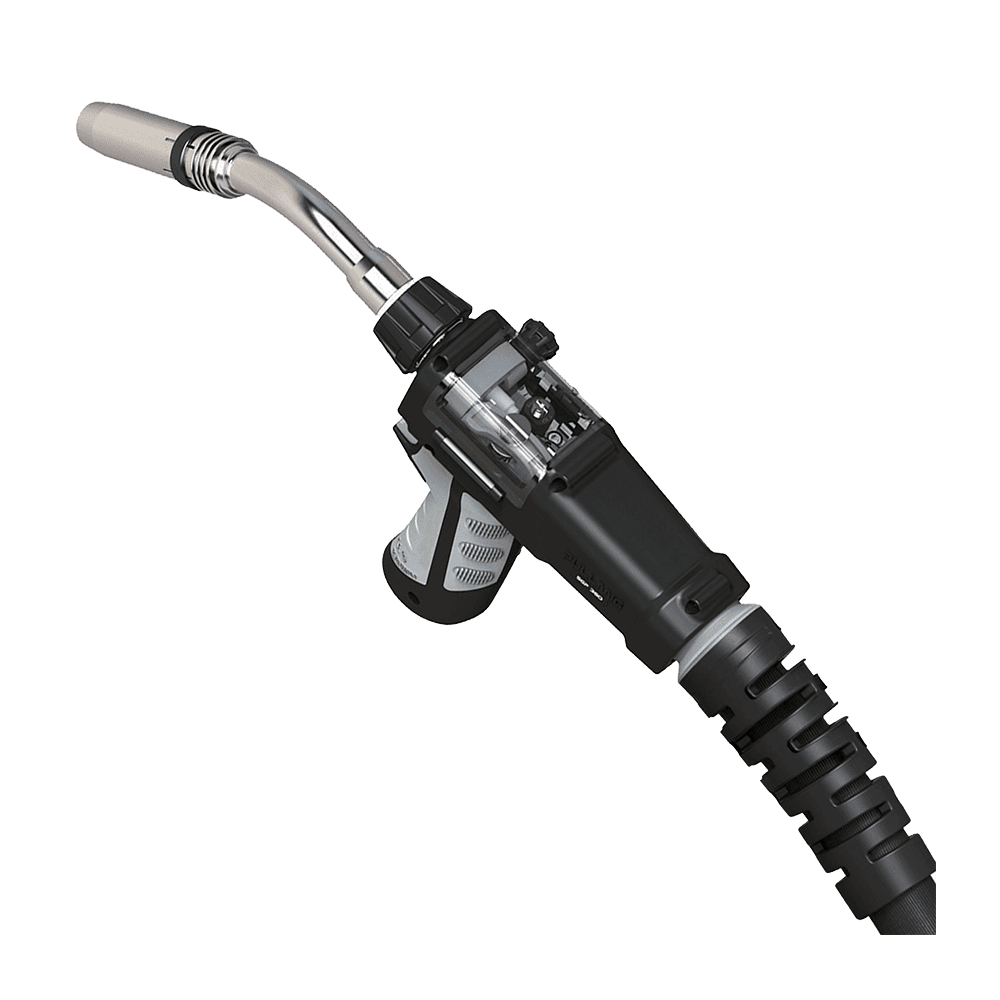

PUSH-PULL READY
Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
HIGHEST QUALITY WELDS
Offering nothing but the best, this machine has been designed to offer the highest quality welds available from Xcel-Arc. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.
Product No: XA-MIG200WRZ-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 9.4
- Ieff (A)
- 15.0
- RATED OUTPUT
- 30A/15.5 - 200A/24.0V
- NO LOAD VOLTAGE (V)
- 52
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.75
- MINIMUM GENERATOR (kVA)
- 11.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- WARRANTY (Years)
- 3
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-200A
- MIG DUTY CYCLE @ 40°C
- 15% @ 200A
- MIG WIRE SIZE RANGE
- 0.6-1.0mm
- MIG WIRE SPOOL SIZE
- 5kg / 15kg
- MIG WELDING THICKNESS RANGE
- 1-10mm
- DRIVE ROLLER SIZE
- 35/25
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 10-200A
- TIG DUTY CYCLE @ 40°C
- 15% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-200A
- STICK DUTY CYCLE @ 40°C
- 15% @ 200A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
Size & Weight
- DIMENSIONS (mm)
- 900x400x670mm
- WEIGHT (kg)
- 57kg
MACHINE FEATURES
- WIRE DRIVE
- Geared
- VRD
- Yes
- SPOOL GUN CONNECTION
- Yes
- PUSH / PULL GUN CONNECTION
- Yes
- BURNBACK ADJUSTMENT
- Yes
- WIRE INCH
- Yes
- INDUCTANCE CONTROL
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-MIG200WRZ-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 9.4
- Ieff (A)
- 15.0
- RATED OUTPUT
- 30A/15.5 - 200A/24.0V
- NO LOAD VOLTAGE (V)
- 52
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.75
- MINIMUM GENERATOR (kVA)
- 11.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- WARRANTY (Years)
- 3
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-200A
- MIG DUTY CYCLE @ 40°C
- 15% @ 200A
- MIG WIRE SIZE RANGE
- 0.6-1.0mm
- MIG WIRE SPOOL SIZE
- 5kg / 15kg
- MIG WELDING THICKNESS RANGE
- 1-10mm
- DRIVE ROLLER SIZE
- 35/25
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 10-200A
- TIG DUTY CYCLE @ 40°C
- 15% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-200A
- STICK DUTY CYCLE @ 40°C
- 15% @ 200A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
Size & Weight
- DIMENSIONS (mm)
- 900x400x670mm
- WEIGHT (kg)
- 57kg
MACHINE FEATURES
- WIRE DRIVE
- Geared
- VRD
- Yes
- SPOOL GUN CONNECTION
- Yes
- PUSH / PULL GUN CONNECTION
- Yes
- BURNBACK ADJUSTMENT
- Yes
- WIRE INCH
- Yes
- INDUCTANCE CONTROL
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
