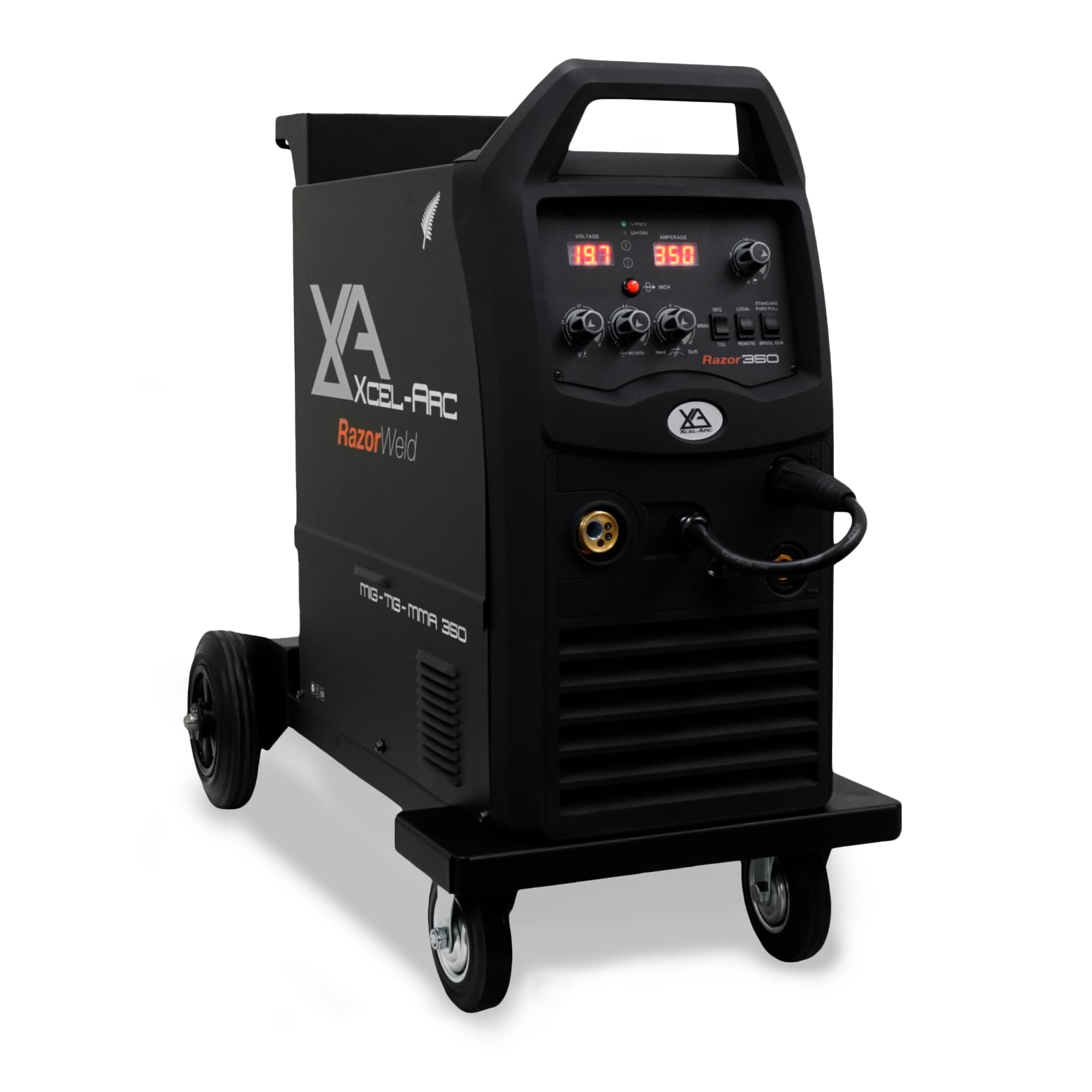

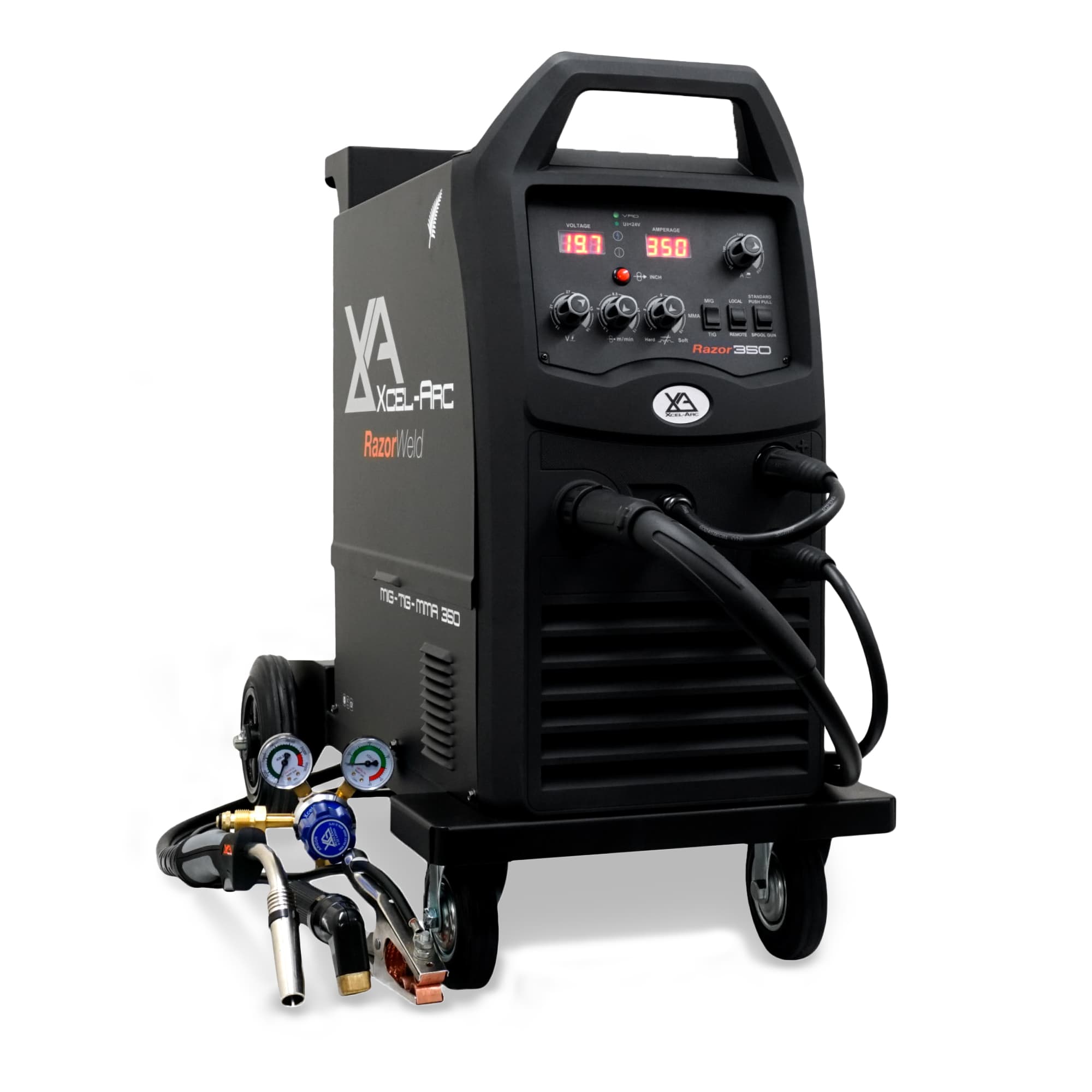

RAZORWELD™ 350 MIG/TIG/STICK Welder
Find a storeRAZORWELD™ 350 MIG/TIG/STICK Welder
This product has been discontinued
It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.
THREE-PHASE | PUSH-PULL READY | SPOOL GUN READY
The RAZORWELD™ 350 is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 350 is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZORWELD™ Work Shop series is designed for superior performance, offering the highest quality of welds from Xcel Arc’s range.
XA-MIG350WRZ-K
THREE-PHASE
415V Power
SPOOL GUN READY
For softer wires, such as Aluminium.
LARGE WIRE SPOOL CAPACITY
Fits 200mm & 300mm wire spools.
FOUR GEARED WIRE DRIVE
For smoothest wire feeding.
MULTI PROCESS WELDING
Three-in-one. A multi-process welder lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
FOUR GEARED WIRE DRIVE
This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
PUSH-PULL READY
Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
HIGHEST QUALITY WELDS
Offering nothing but the best, this machine has been designed to offer the highest quality welds available from Xcel-Arc. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.
Product No: XA-MIG350WRZ-K
Machine Specifications
- Primary Input Voltage
- 415V Three-Phase
- Plug Type
- Three Phase (20 AMP, 32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 13.7
- Rated Output
- 50A/16.5V - 350A/31.5V
- No Load Voltage (V)
- 64
- Protection Class
- IP21S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.75
- Roller Size
- 30/22 (x2)
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- No plug supplied (32 AMP Recommended)
- Rated Input Power (kVA)
- MIG - 13.9 / MWA - 15.0
- Ieff (A)
- 13.2
- Rated Output
- 50A/16.5V - 350A/31.5V
- Insulation Class
- F
- Roller Size
- 20.0
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- Warranty (Years)
- 3
MIG Specifications
- Welding Current Range
- 50-350A
- MIG Duty Cycle
- 40% @ 350A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 2mm - 30mm
- Welding Current Range
- 50-350A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 5kg / 15kg
- Mig Welding Thickness Range
- 1-12mm
- Drive Roller Size
- 30/22 (x2)
MMA Specifications
- Welding Current Range
- 20-350A
- MIG Duty Cycle
- 20-350A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 20mm
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 40% @ 350A
- Welding Thickness Range
- 2-10mm
Stick Specifications
- Stick Welding Current Range
- 20-350A
- Stick Duty Cycle @ 40°C
- 40% @ 350A
- Stick Electrode Range
- 2.5-6.0mm
- Stick Welding Thickness Range
- 2-16mm
Size & Weight
- Dimensions
- 900x400x785mm
- Weight
- 60kg
Machine Features
- Wire Drive
- 4 Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Push Pull Gun Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Thermal Overload Protection
- Over Temperature Warning
Product No: XA-MIG350WRZ-K
Machine Specifications
- Primary Input Voltage
- 415V Three-Phase
- Plug Type
- Three Phase (20 AMP, 32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 13.7
- Rated Output
- 50A/16.5V - 350A/31.5V
- No Load Voltage (V)
- 64
- Protection Class
- IP21S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.75
- Roller Size
- 30/22 (x2)
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- No plug supplied (32 AMP Recommended)
- Rated Input Power (kVA)
- MIG - 13.9 / MWA - 15.0
- Ieff (A)
- 13.2
- Rated Output
- 50A/16.5V - 350A/31.5V
- Insulation Class
- F
- Roller Size
- 20.0
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- Warranty (Years)
- 3
MIG Specifications
- Welding Current Range
- 50-350A
- MIG Duty Cycle
- 40% @ 350A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 2mm - 30mm
- Welding Current Range
- 50-350A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 5kg / 15kg
- Mig Welding Thickness Range
- 1-12mm
- Drive Roller Size
- 30/22 (x2)
MMA Specifications
- Welding Current Range
- 20-350A
- MIG Duty Cycle
- 20-350A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 20mm
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 40% @ 350A
- Welding Thickness Range
- 2-10mm
Stick Specifications
- Stick Welding Current Range
- 20-350A
- Stick Duty Cycle @ 40°C
- 40% @ 350A
- Stick Electrode Range
- 2.5-6.0mm
- Stick Welding Thickness Range
- 2-16mm
Size & Weight
- Dimensions
- 900x400x785mm
- Weight
- 60kg
Machine Features
- Wire Drive
- 4 Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Push Pull Gun Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Thermal Overload Protection
- Over Temperature Warning
