XA-RZCUT45PFC-K

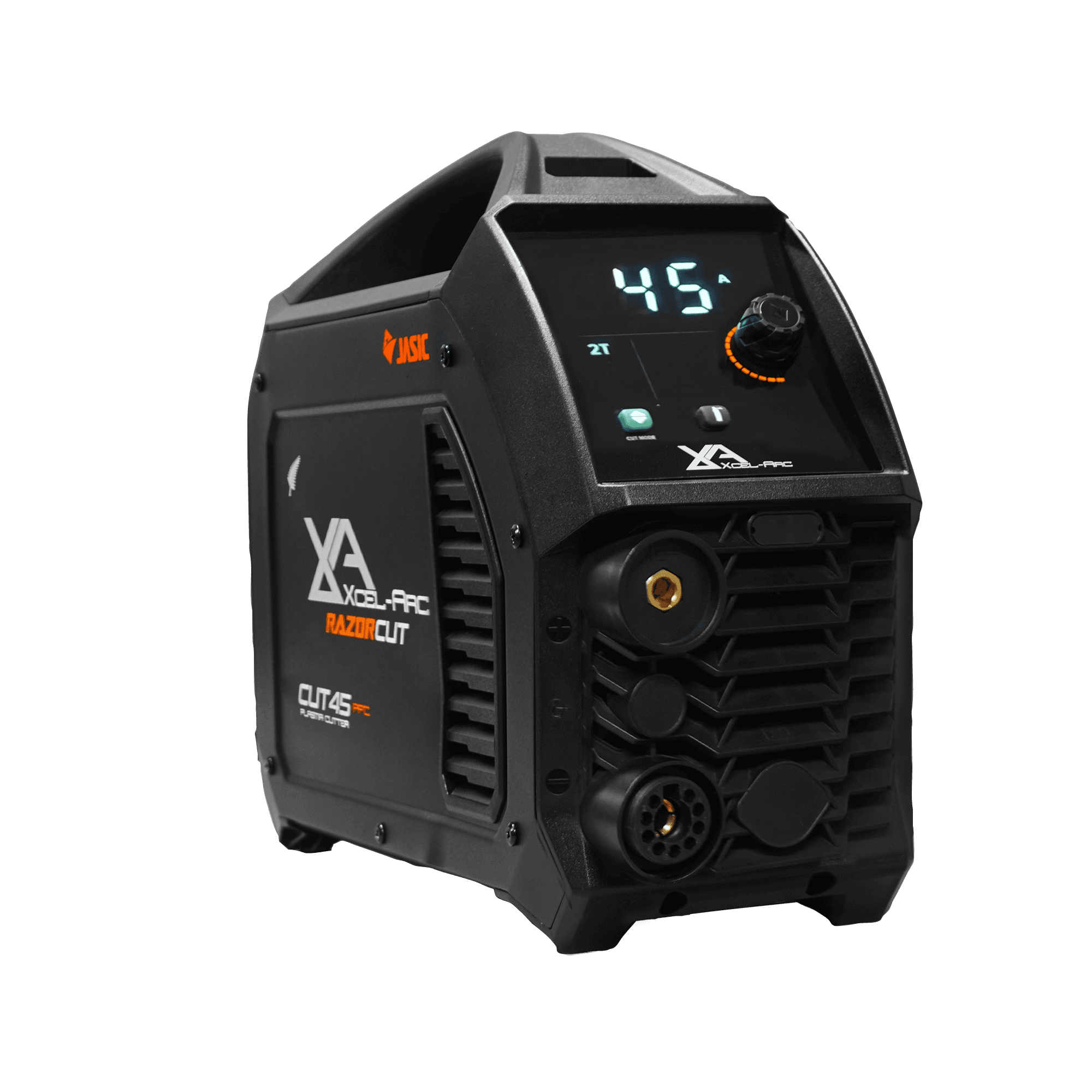

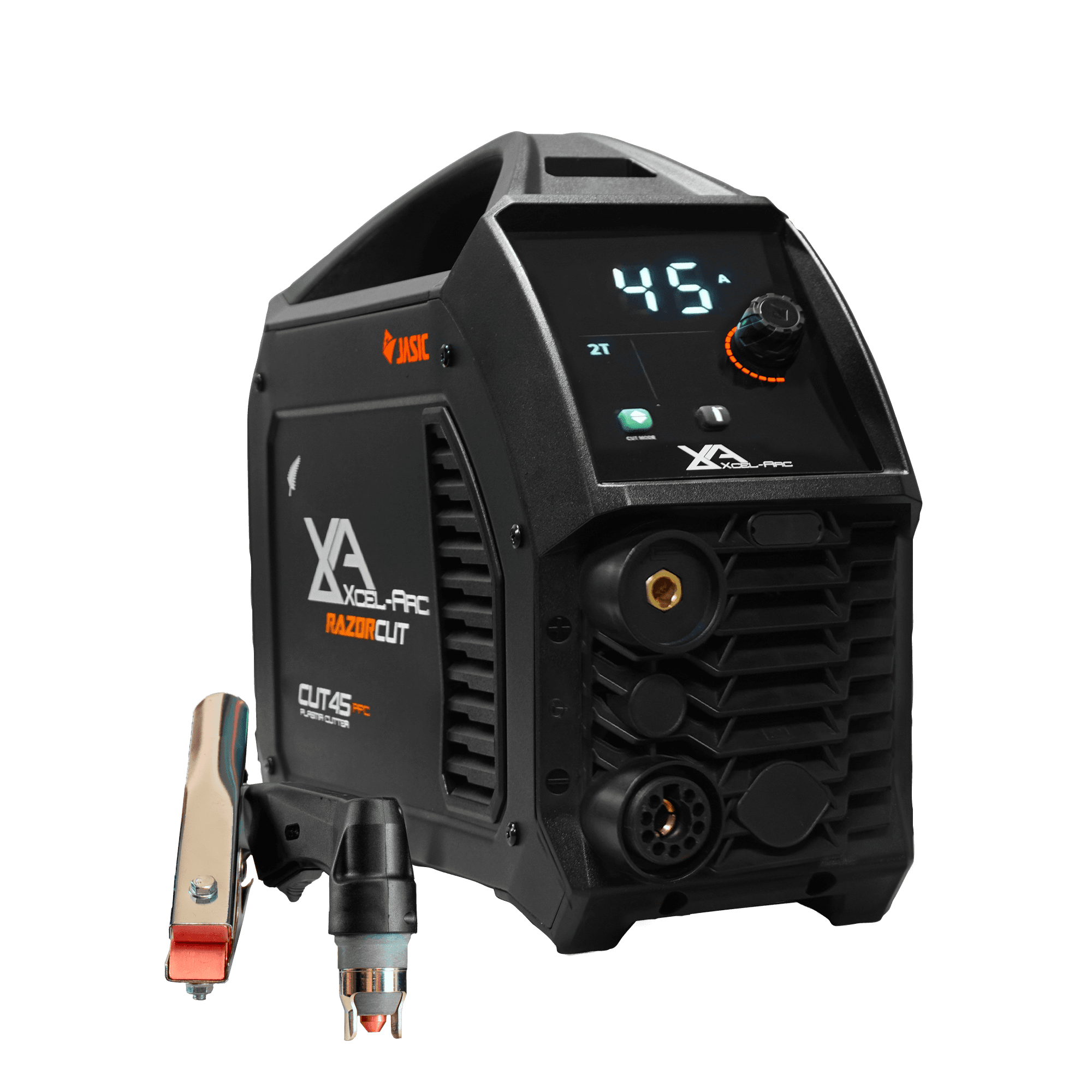

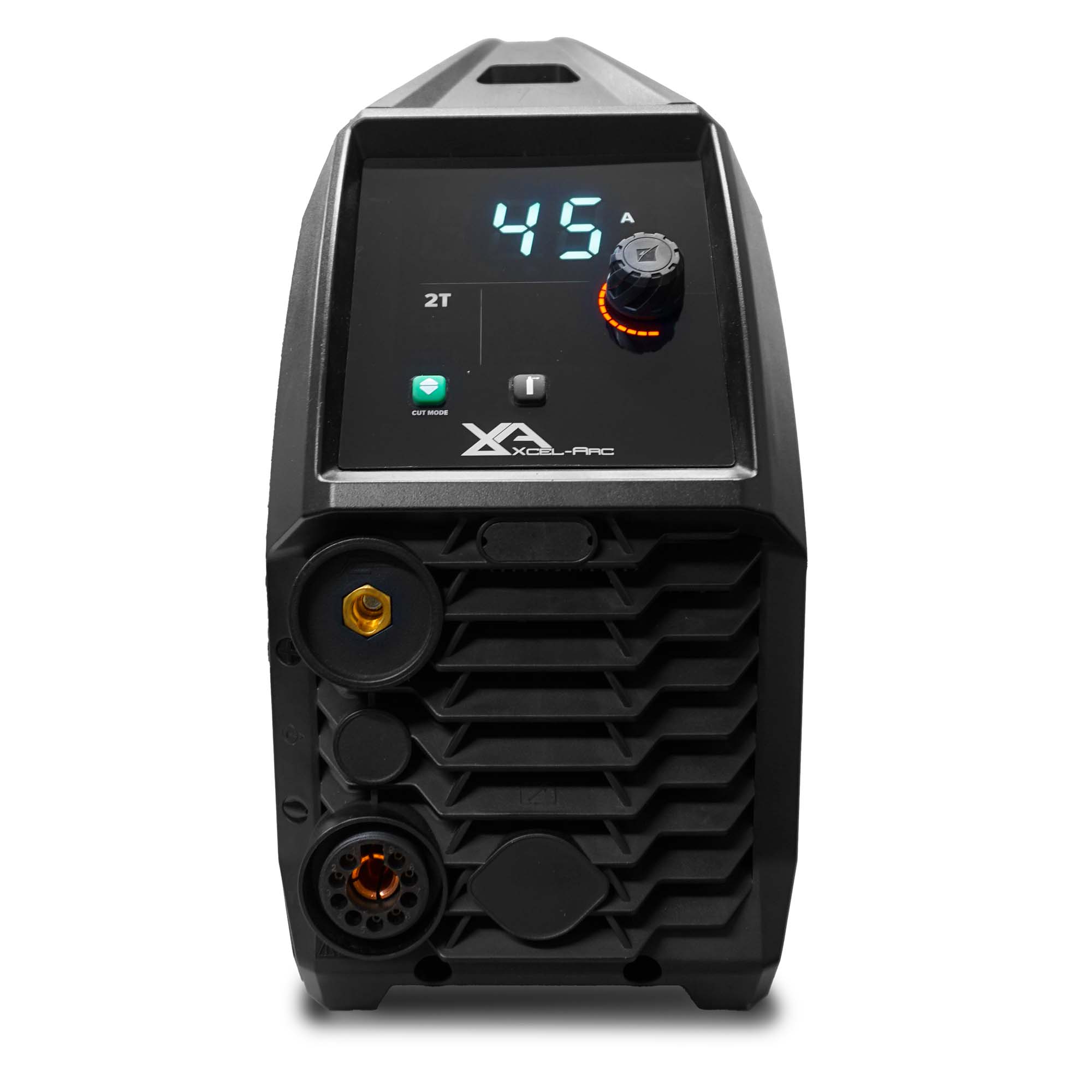

RAZOR™ CUT 45 PFC Plasma Cutter

The RAZOR CUT45 PFC is a highly advanced digital inverter plasma cutter designed to deliver exceptional performance and precision. It offers adjustable cutting torch length and post-flow time, making it a versatile tool for a variety of applications. Its unique electrical structure and air duct design enhance heat dissipation, improving duty cycle and reliability. The machine offers three cutting modes, stepless adjustment of cutting current, intelligent fan temperature control, and automatic parameter saving. With a reset function the RAZOR CUT45 PFC is a reliable and efficient plasma cutting machine that is ideal for anyone looking for precision, versatility, and high-quality cutting.

XA-RZCUT45PFC-K

FIND A STORE

ADD TO WISHLIST

15 AMP PLUG

Connect to any 15 AMP outlet.

16mm CLEAN CUT

Mild Steel.

PILOT ARC START

Start cut without direct contact.

2T/4T TORCH CONTROLS

More comfort when cutting.

Product No: XA-RZCUT45PFC-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

5.3

Ieff (A)

RATED OUTPUT

98V

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

Size & Weight

DIMENSIONS (mm)

546x166x341mm

WEIGHT (kg)

10kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-45A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 45A

MILD STEEL CUT THICKNESS

16mm

MILD STEEL SEVERANCE THICKNESS

25mm

ALUMINIUM CUT THICKNESS

8mm

ALUMINIUM SEVERANCE THICKNESS

10mm

STAINLESS STEEL CUT THICKNESS

8mm

STAINLESS STEEL SEVERANCE THICKNESS

10mm

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc

RAZOR™ CUT 45 PFC Plasma Cutter
6m SC80 Plasma Torch
Earth Lead & Spares Kit
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR CUT 45 PFC Info Sheet

RAZOR CUT 45 PFC Manual

Xcel-Arc is pleased to offer a 5-year warranty on RAZORCUT™ 45 PFC Machine*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
