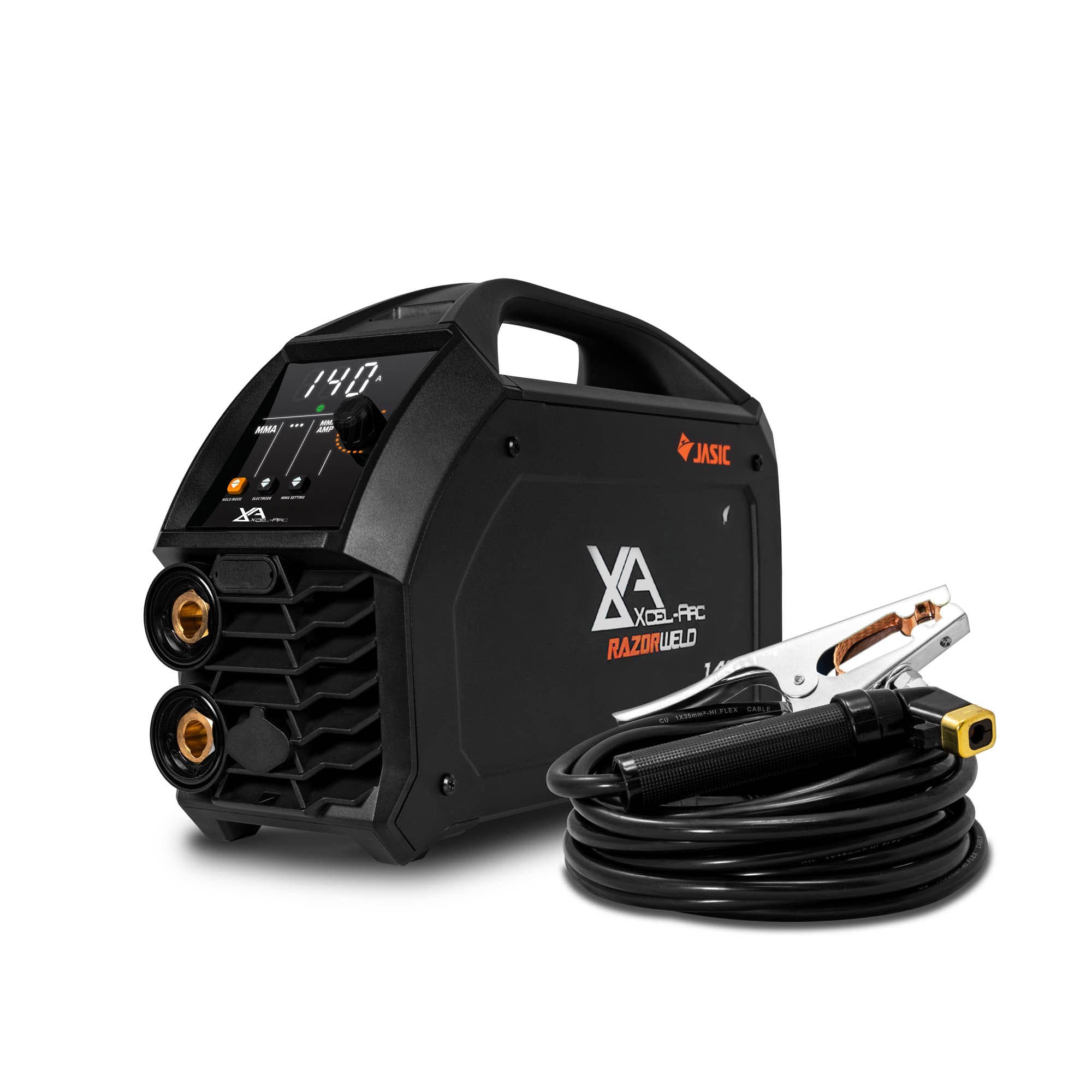

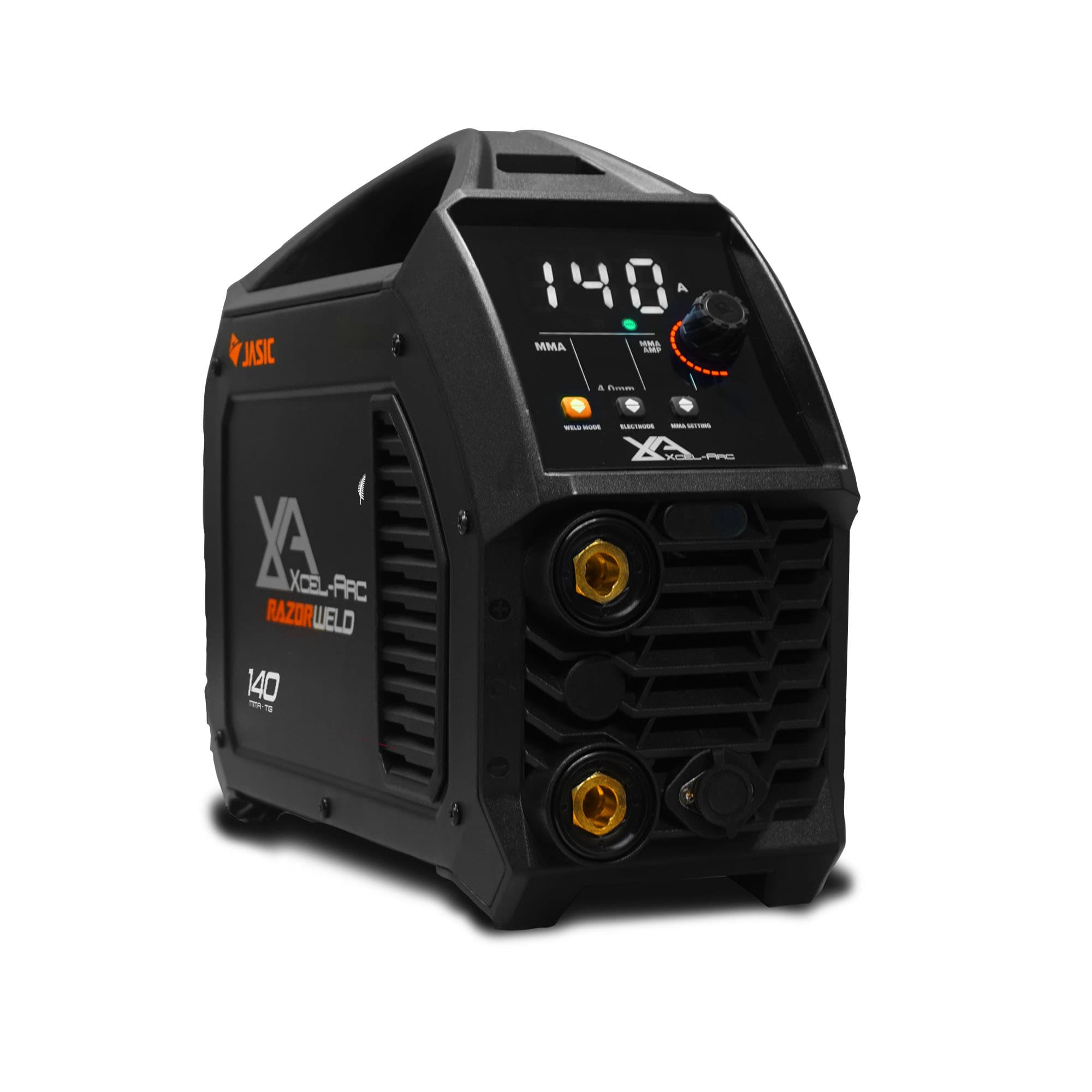

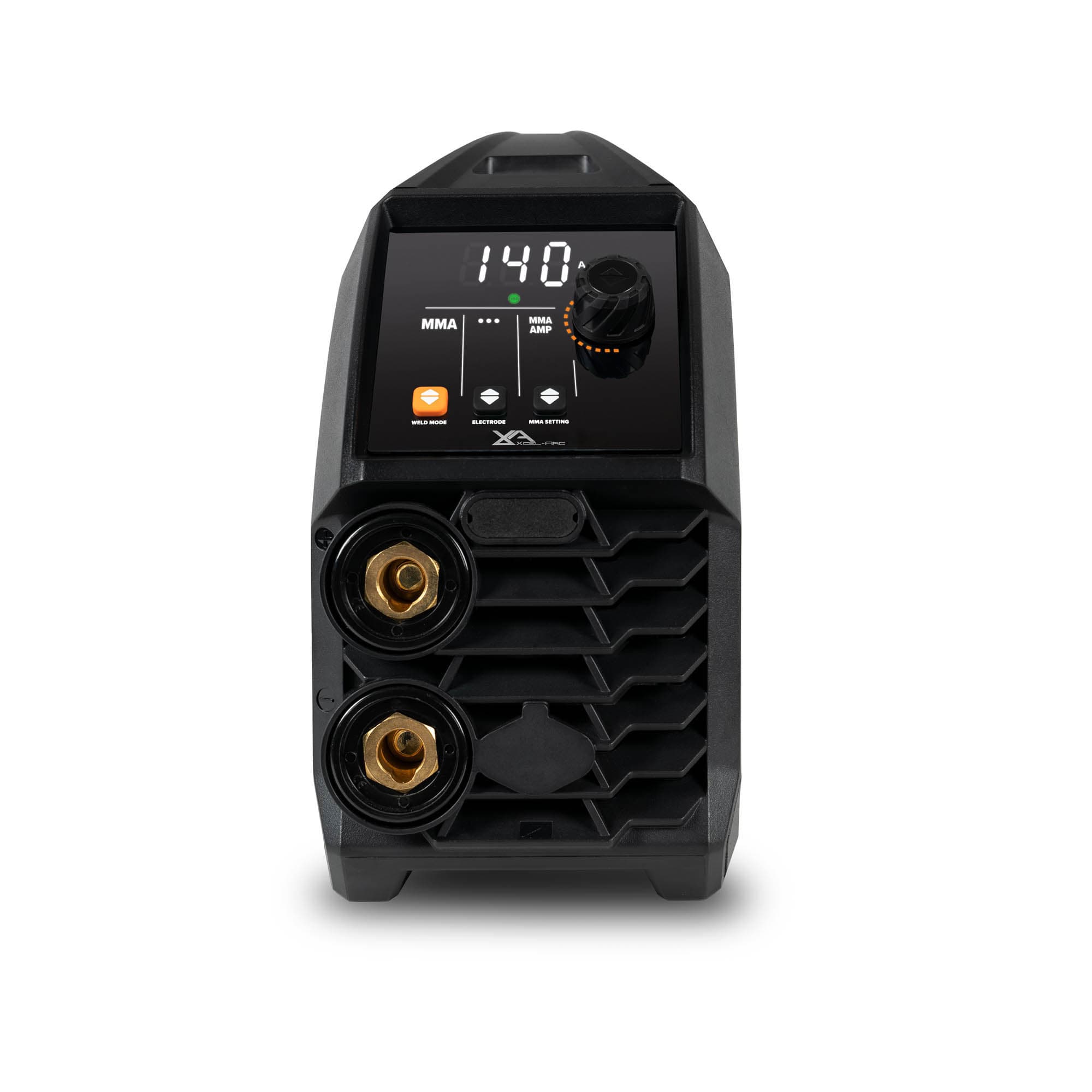

RAZORWELD™ ARC 140 MMA Welder
Find a storeRAZORWELD™ ARC 140 MMA Welder
10 AMP PLUG | Advanced MMA Features
This powerful, professional STICK (MMA) machine is designed to be taken on the worksite or the workshop.
- Packed full of advanced features including hot start, arc force and anti-stick
- Capable of DC Lift Arc TIG for more versatility
- A 5-year warranty to reflect our confidence in this machine
XA-RZARC140-K
10 AMP PLUG
Connect to a 10 AMP outlet.
DC LIFT ARC TIG
TIG welding functionality.
VRD
Prevents Voltage overloading, protecting yourself and the machine.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.
DC LIFT ARC TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Product No: XA-RZARC140-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- Ieff (A)
- 9.7
- RATED OUTPUT
- 20A/20.8V - 140A/25.6V
- NO LOAD VOLTAGE (V)
- 78
- PROTECTION CLASS
- IP23S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Silicon Bronze
- WARRANTY (Years)
- 5
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 10-140A
- TIG DUTY CYCLE @ 40°C
- 20% @ 140A, 60% @ 80.8A, 100% @ 62.6A
- TIG WELDING THICKNESS RANGE
- 1-5mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 15% @ 140A, 60% @ 70A, 100% @ 54A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 370x255x125mm
- WEIGHT (kg)
- 5.5kg
MACHINE FEATURES
- VRD
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-RZARC140-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- Ieff (A)
- 9.7
- RATED OUTPUT
- 20A/20.8V - 140A/25.6V
- NO LOAD VOLTAGE (V)
- 78
- PROTECTION CLASS
- IP23S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Silicon Bronze
- WARRANTY (Years)
- 5
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 10-140A
- TIG DUTY CYCLE @ 40°C
- 20% @ 140A, 60% @ 80.8A, 100% @ 62.6A
- TIG WELDING THICKNESS RANGE
- 1-5mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 15% @ 140A, 60% @ 70A, 100% @ 54A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 370x255x125mm
- WEIGHT (kg)
- 5.5kg
MACHINE FEATURES
- VRD
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
