RAZORWELD™ SWF 500 MIG/TIG/STICK Welder
Find a storeRAZORWELD™ SWF 500 MIG/TIG/STICK Welder
New
415V THREE-PHASE | SEPARATE WIRE FEEDER | SPOOL GUN READY
This heavy-duty workshop unit guarantees premium welds and unmatched performance, even in the most challenging conditions.
- A separate wire feeder gives extra manoeuvrability
- Push-Pull gun ready for heavy-duty welding
- 4 geared wire drive system for the smoothest wire feeding experience
Next-Generation Welding Performance
- DSP Arc Control - High-speed digital signal processing continuously regulates voltage and current for superior arc stability.
- Reduced Spatter - Optimised droplet transfer minimises post-weld cleanup and consumable waste.
- Enhanced Short-Arc Stability - Improved control during short-circuit MIG delivers smooth arc recovery for cleaner starts and finishes.
- Controlled Heat Input - Maintains stable penetration across different material thicknesses and joint configurations
- Consistent Penetration - DSP helps maintain stable heat input across varied materials and joint conditions.
XA-RZMIG500SWF-K
THREE-PHASE
415V Power
SPOOL GUN READY
For softer wires, such as Aluminium.
SEPARATE WIRE FEEDER
Adds up to 10m of extra manoeuvrability
4 GEARED WIRE DRIVE
For smoothest wire feeding.
ARM + DSP CONTROL
EXPERIENCE CLEANER, SMARTER WELDING
CLEAR VISION TECHNOLOGY
Next-generation HD backlit <br>digital display
ADVANCED MMA FEATURES
Improve weld quality and ease of use
MULTI PROCESS WELDING
MIG, TIG and STICK <br> Saving you time and setup
INTELLIGENT ARC CONTROL
The ARM+DSP dual microprocessor system instantly adapts to welding conditions, providing better control from start to finish.
Driven by an advanced ARM + DSP dual microprocessor platform, the system intelligently adjusts the arc in real time - ensuring smoother control, consistent performance, and confidence from start to finish.
• ARM - Advanced ARM microprocessor provides rapid data processing and intelligent voltage and current regulation for superior arc stability.
• DSP - Advanced DSP (Digital Signal Processing) Arc Control actively manages the welding arc in real-time for a smoother, more responsive weld.

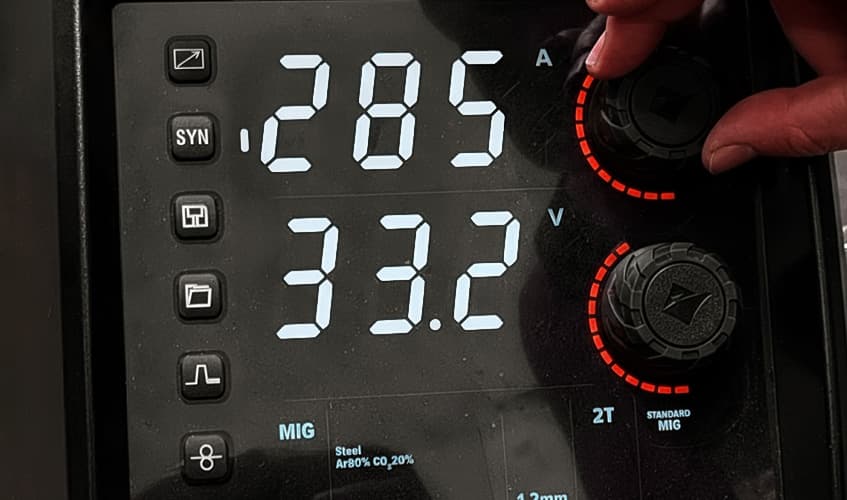

SMART-SET MIG
Faster weld setup with intelligent, synergistic preset parameters. Simply select your wire type, size, gas, and material thickness - the machine automatically sets the optimal parameters.

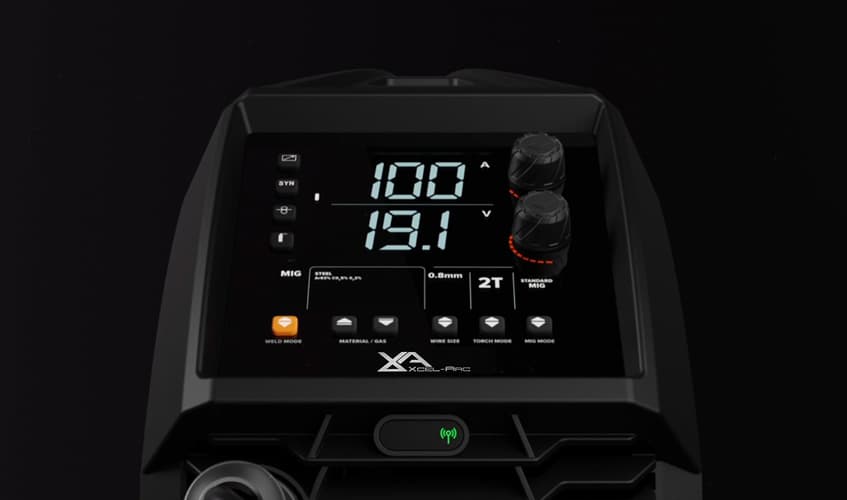

HD BACKLIT CONTROL PANEL
The high definition backlit screen presents your welding parameters in a clean, easy to follow layout. Clear numbers, simple icons and a structured interface make adjusting your settings fast, intuitive and effortless.

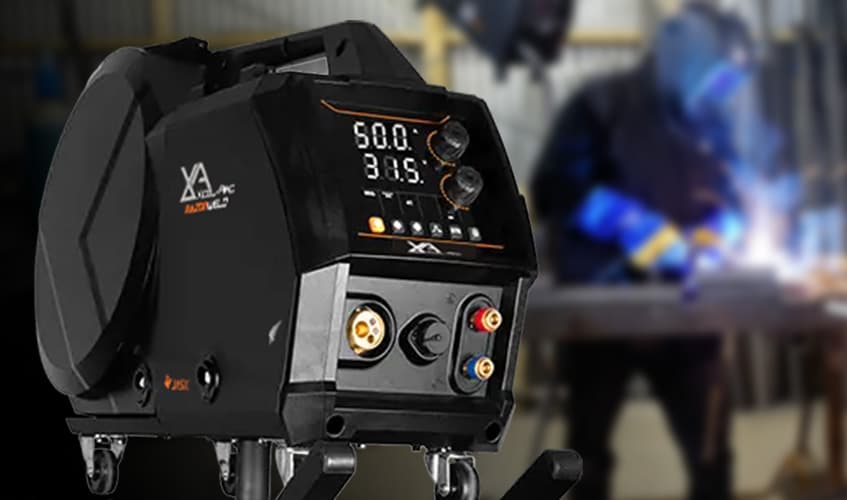

SEPARATE WIRE FEEDER
This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.
MULTI PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

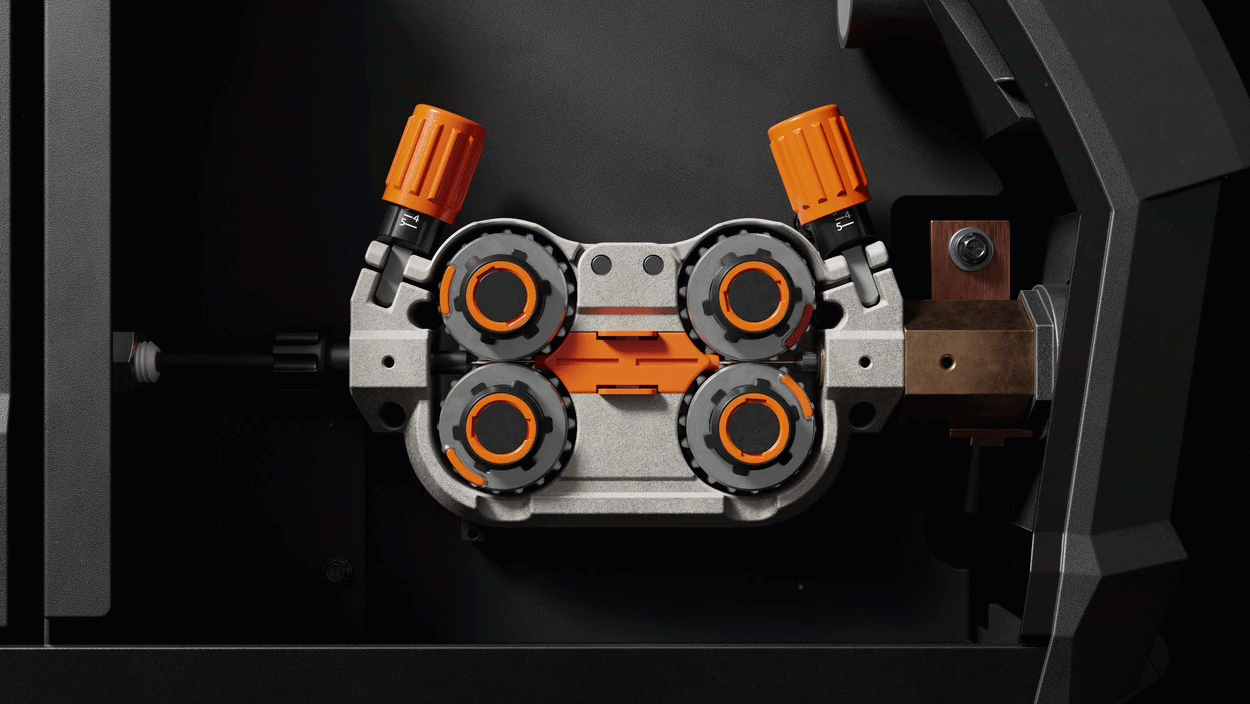

4 GEARED WIRE FEED SYSTEM
Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
PUSH-PULL READY
Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
ADVANCED MMA FEATURES
Advanced MMA features are designed for improving weld quality and ease of use.
Product No: XA-RZMIG500SWF-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 415V Three Phase
- SUPPLY PLUG
- 32 AMP
- Ieff (A)
- 22.0
- Imax (A)
- 42.8
- RATED OUTPUT
- 20-500A
- NO LOAD VOLTAGE (V)
- 82
- PROTECTION CLASS
- IP23S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 40.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
- WARRANTY (Years)
- 5
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-500A
- MIG DUTY CYCLE @ 40°C
- 40% @ 500A | 60% @ 408A | 100% @ 316A
- MIG WIRE SIZE RANGE
- 0.8-1.6mm
- MIG WIRE SPOOL SIZE
- 5kg / 15kg
- MIG WELDING THICKNESS RANGE
- 1-30mm
- DRIVE ROLLER SIZE
- 37/24
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 20-500A
- TIG DUTY CYCLE @ 40°C
- 40% @ 500A | 60% @ 408A | 100% @ 316A
- TIG WELDING THICKNESS RANGE
- 1-10mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-500A
- STICK DUTY CYCLE @ 40°C
- 40% @ 500A | 60% @ 408A | 100% @ 316A
- STICK ELECTRODE RANGE
- 2.5-6.0mm
- STICK WELDING THICKNESS RANGE
- 2-20mm
Size & Weight
- DIMENSIONS (mm)
- 1520 x 520 x 980mm
- WEIGHT (kg)
- 88.41
- SWF WEIGHT (kg)
- 17.8
- SWF INTERLOCKING CABLE LENGTH (m)
- 10m
MACHINE FEATURES
- WIRE DRIVE
- Seperate 4 Geared
- SPOOL GUN CONNECTION
- Yes
- PUSH / PULL GUN CONNECTION
- Yes
- BURNBACK ADJUSTMENT
- Automatic
- WIRE INCH
- Yes
- INDUCTANCE CONTROL
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-RZMIG500SWF-K
