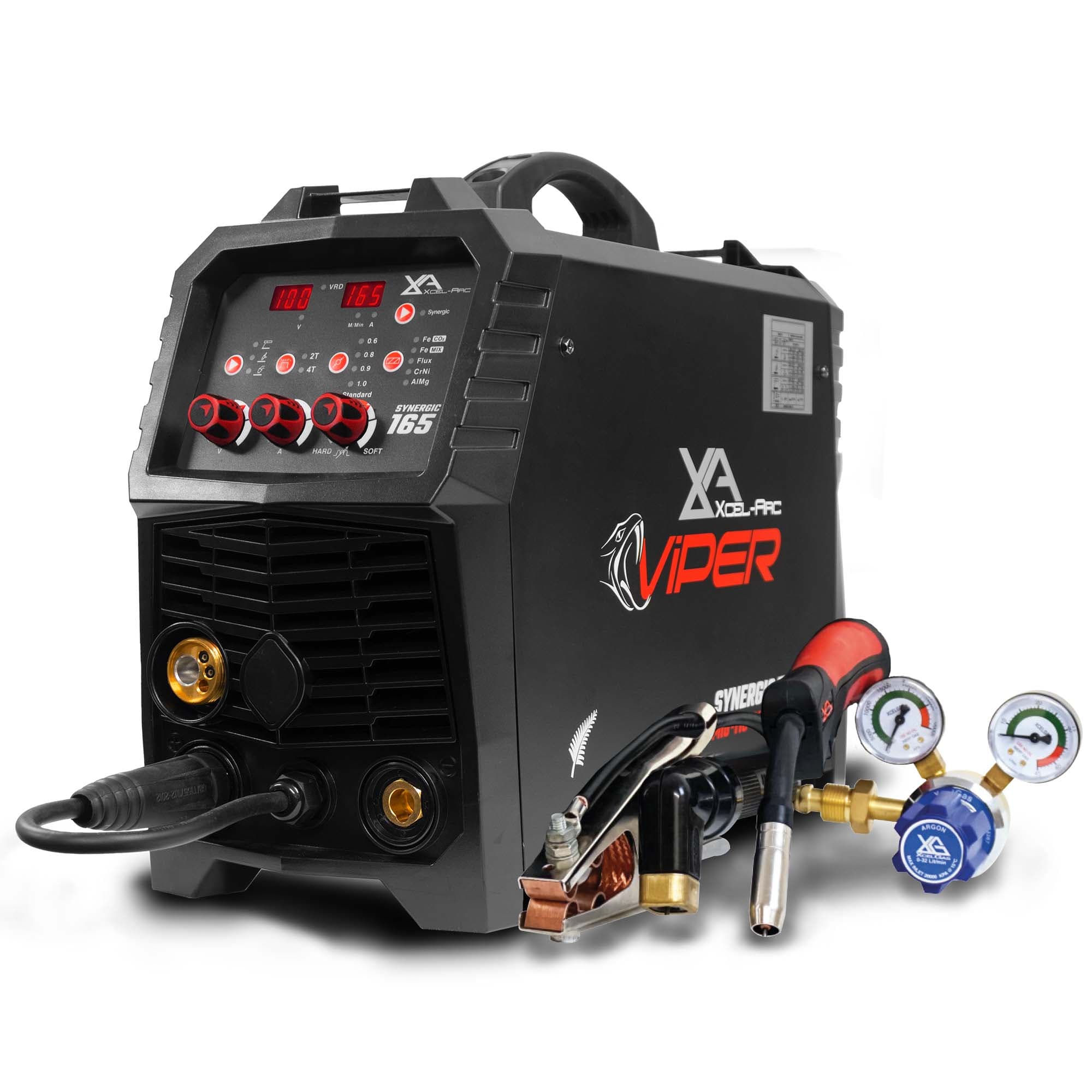

VIPER™ 165 MIG/TIG/STICK Welder
Find a storeVIPER™ 165 MIG/TIG/STICK Welder
10 AMP PLUG | SYNERGIC PROGRAMS
Get greater control over your welds with the VIPER™ 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.
XA-MIG165V-K
10 AMP PLUG
Connect to any standard outlet.
SYNERGIC PROGRAMS
TAKE THE GUESSWORK OUT OF SETUP
LIGHTWEIGHT & PORTABLE
Weighing just 9.8kg
GAS & GASLESS MIG
Easily run mild steel & flux-cored MIG wire.

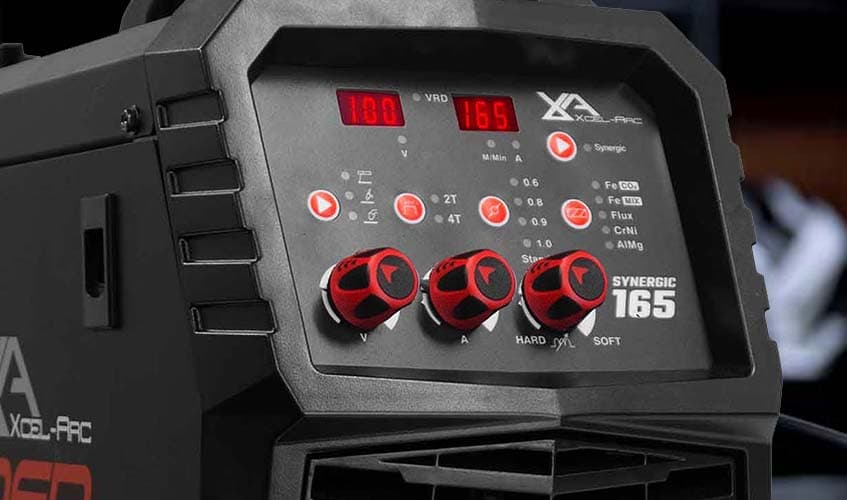

SYNERGIC MIG CONTROL
The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and type,
and adjust your amperage to suit your workpiece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
MULTI-PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

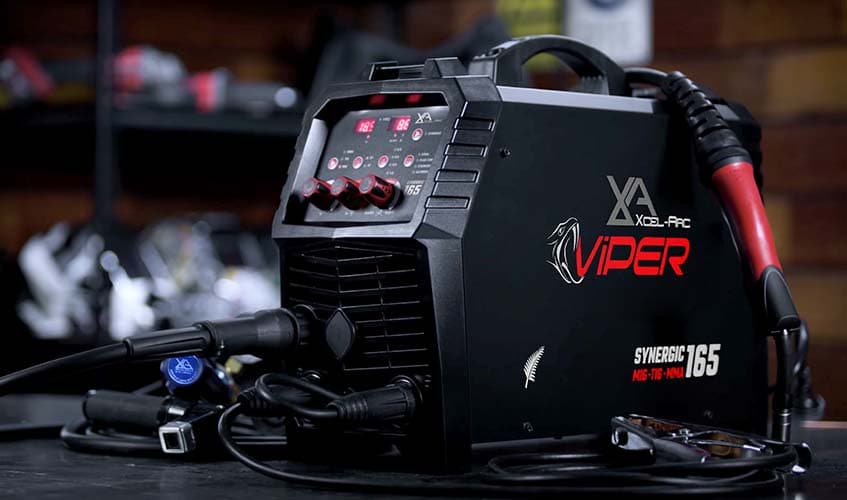

LIGHTWEIGHT & PORTABLE
Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.
Product No: XA-MIG165V-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 5.9
- Ieff (A)
- 9.8
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- H
- POWER FACTOR
- 0.72
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- WARRANTY (Years)
- 2
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-165A
- MIG DUTY CYCLE @ 40°C
- 10% @ 165A
- MIG WIRE SIZE RANGE
- 0.6-0.9mm
- MIG WIRE SPOOL SIZE
- 5kg
- MIG WELDING THICKNESS RANGE
- 1-6mm
- DRIVE ROLLER SIZE
- 30/10
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 20-160A
- TIG DUTY CYCLE @ 40°C
- 10% @ 160A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 10% @ 140A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 500x210x385mm
- WEIGHT (kg)
- 10kg
MACHINE FEATURES
- WIRE DRIVE
- Standard
Product No: XA-MIG165V-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 5.9
- Ieff (A)
- 9.8
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- H
- POWER FACTOR
- 0.72
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- WARRANTY (Years)
- 2
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-165A
- MIG DUTY CYCLE @ 40°C
- 10% @ 165A
- MIG WIRE SIZE RANGE
- 0.6-0.9mm
- MIG WIRE SPOOL SIZE
- 5kg
- MIG WELDING THICKNESS RANGE
- 1-6mm
- DRIVE ROLLER SIZE
- 30/10
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Lift Arc
- TIG WELDING CURRENT RANGE
- 20-160A
- TIG DUTY CYCLE @ 40°C
- 10% @ 160A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 10% @ 140A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 500x210x385mm
- WEIGHT (kg)
- 10kg
MACHINE FEATURES
- WIRE DRIVE
- Standard
