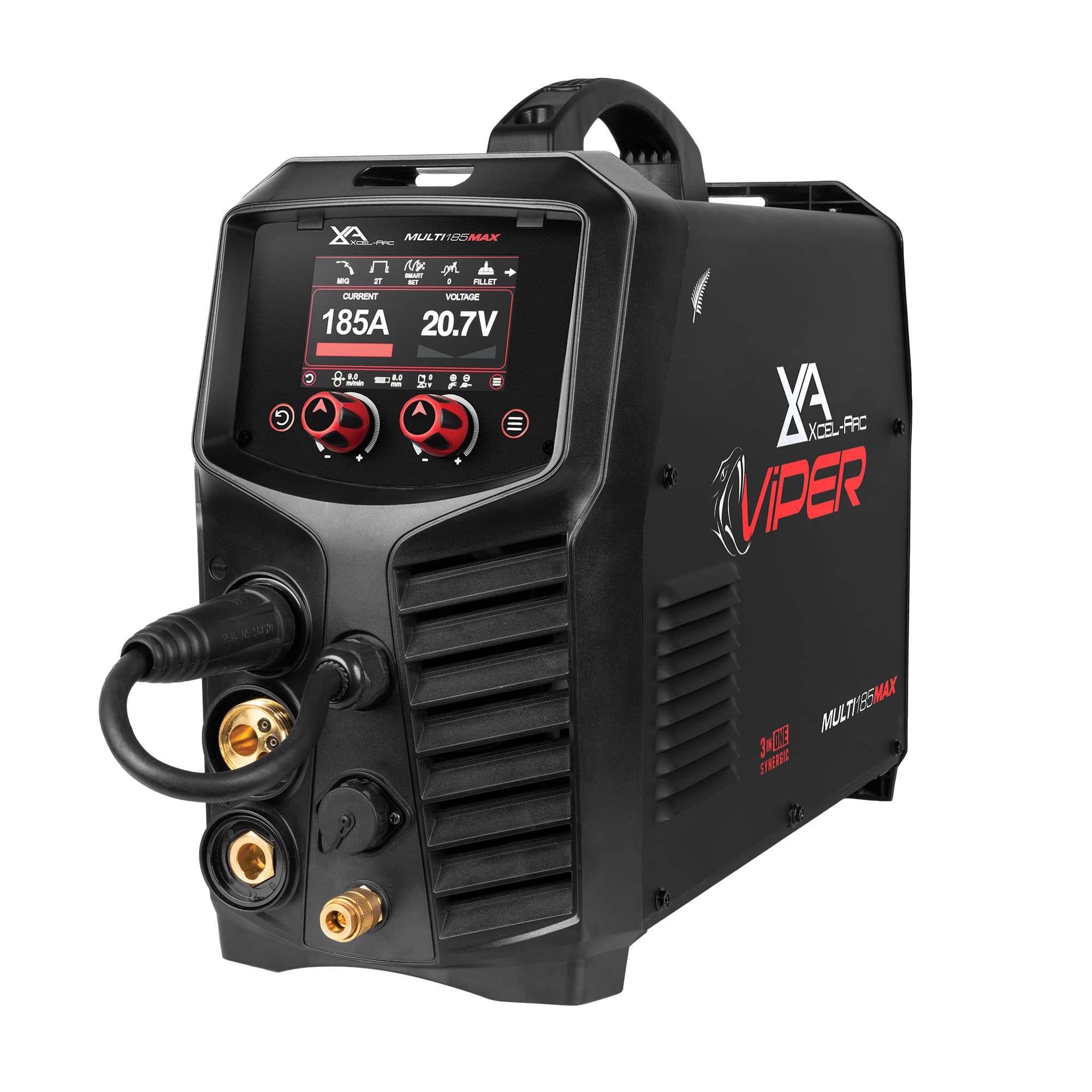

VIPER™ 185 Max Pulse MIG/TIG/STICK Welder
Find a storeVIPER™ 185 Max Pulse MIG/TIG/STICK Welder
New
10 AMP PLUG | SPOOL GUN READY | SINGLE PULSE MIG
Now with single pulse MIG, the VIPER MULTI 185MAX is the perfect multi-process machine for all those home repairs and hobby projects you've got planned.
- Single pulse MIG programs & high-frequency DC TIG
- MIG Smart-Set weld modes for complete synergic setups
- 10 amp plug, so you can use it with any domestic outlet
XA-MIG185VMAX-K
10 AMP PLUG
Connect to any standard outlet
Single pulse MIG
Tighter heat control and a steadier arc, easier to lay down clean, consistent welds
MIG Smart-Set
Ready to weld with the press of a few buttons
Digital Geared Wire Feed
For a consistent and smooth wire-feeding experience
10 AMP PLUG
Ready to run on any domestic outlet. Simple to power, easy to move and built for anyone who needs a portable welding setup.
MULTI-PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
Digital Geared Wire Feed System
For a consistent and smooth wire-feeding experience. The geared wire drive unit delivers more power to the wire, improving wire feeding, especially with longer torches.
Product No: XA-MIG185VMAX-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- Ieff (A)
- 10.0
- Imax (A)
- 31.0
- NO LOAD VOLTAGE (V)
- 67.0
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 10.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- WARRANTY (Years)
- 3
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-185A
- MIG DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- MIG WIRE SIZE RANGE
- 0.6-1.0mm
- MIG WIRE SPOOL SIZE
- 1kg / 5kg
- MIG WELDING THICKNESS RANGE
- 1-10mm
- DRIVE ROLLER SIZE
- 30/22
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC High-Frequency TIG, DC Lift Arc
- TIG WELDING CURRENT RANGE
- 20-185A
- TIG DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-180A
- STICK DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 75A | 100% @ 60A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-10mm
Size & Weight
- DIMENSIONS (mm)
- 553x214x388mm
- WEIGHT (kg)
- 13.5kg
MACHINE FEATURES
- WIRE DRIVE
- Digital Geared
- VRD
- Yes
- SPOOL GUN CONNECTION
- Yes
- FOOT CONTROL CONNECTION
- Yes
- BURNBACK ADJUSTMENT
- Yes
- INDUCTANCE CONTROL
- Yes
Product No: XA-MIG185VMAX-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- Ieff (A)
- 10.0
- Imax (A)
- 31.0
- NO LOAD VOLTAGE (V)
- 67.0
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- H
- MINIMUM GENERATOR (kVA)
- 10.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- WARRANTY (Years)
- 3
MIG Specifications
- MIG WELDING CURRENT RANGE
- 30-185A
- MIG DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- MIG WIRE SIZE RANGE
- 0.6-1.0mm
- MIG WIRE SPOOL SIZE
- 1kg / 5kg
- MIG WELDING THICKNESS RANGE
- 1-10mm
- DRIVE ROLLER SIZE
- 30/22
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC High-Frequency TIG, DC Lift Arc
- TIG WELDING CURRENT RANGE
- 20-185A
- TIG DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-180A
- STICK DUTY CYCLE @ 40°C
- 10% @ 185A | 60% @ 75A | 100% @ 60A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-10mm
Size & Weight
- DIMENSIONS (mm)
- 553x214x388mm
- WEIGHT (kg)
- 13.5kg
MACHINE FEATURES
- WIRE DRIVE
- Digital Geared
- VRD
- Yes
- SPOOL GUN CONNECTION
- Yes
- FOOT CONTROL CONNECTION
- Yes
- BURNBACK ADJUSTMENT
- Yes
- INDUCTANCE CONTROL
- Yes
