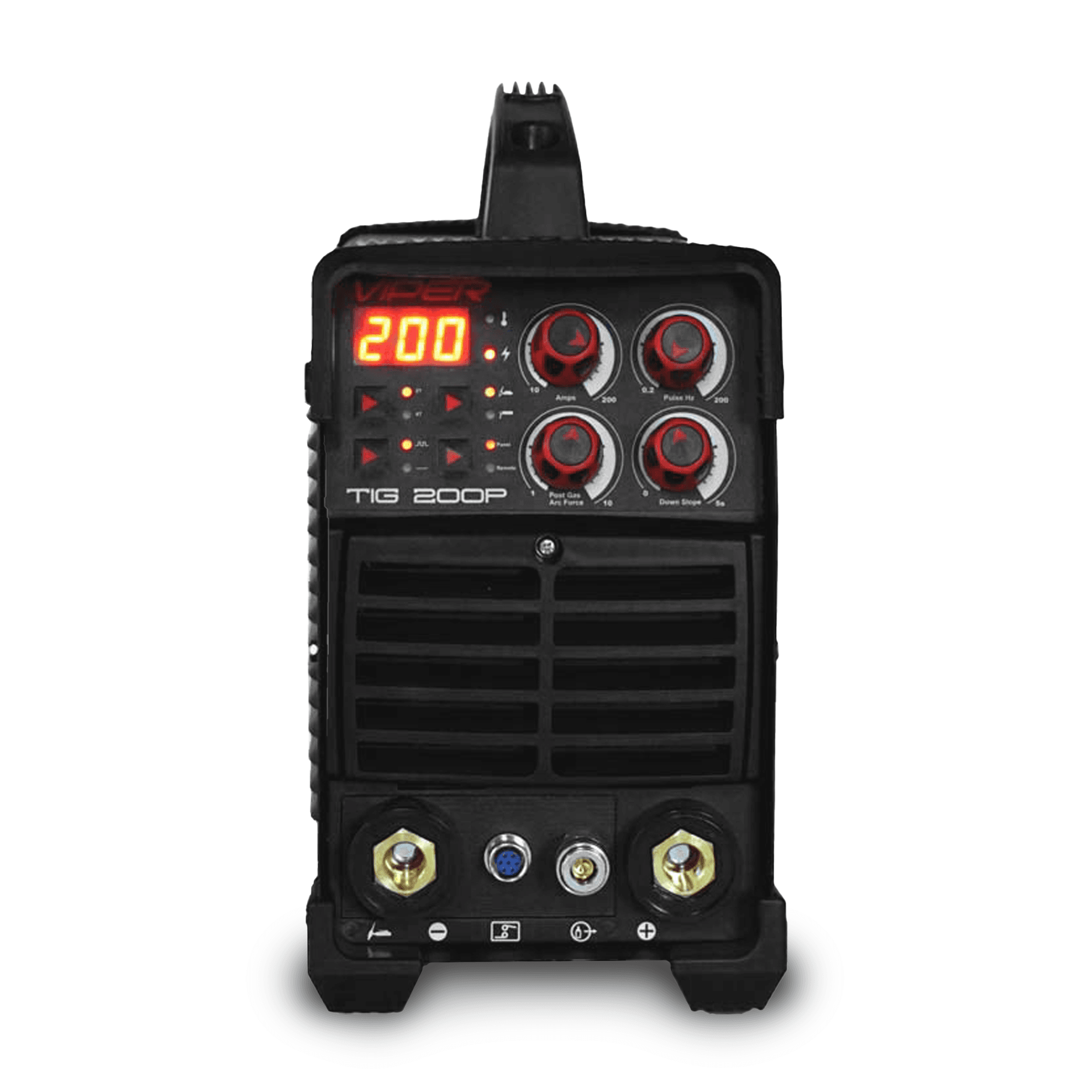

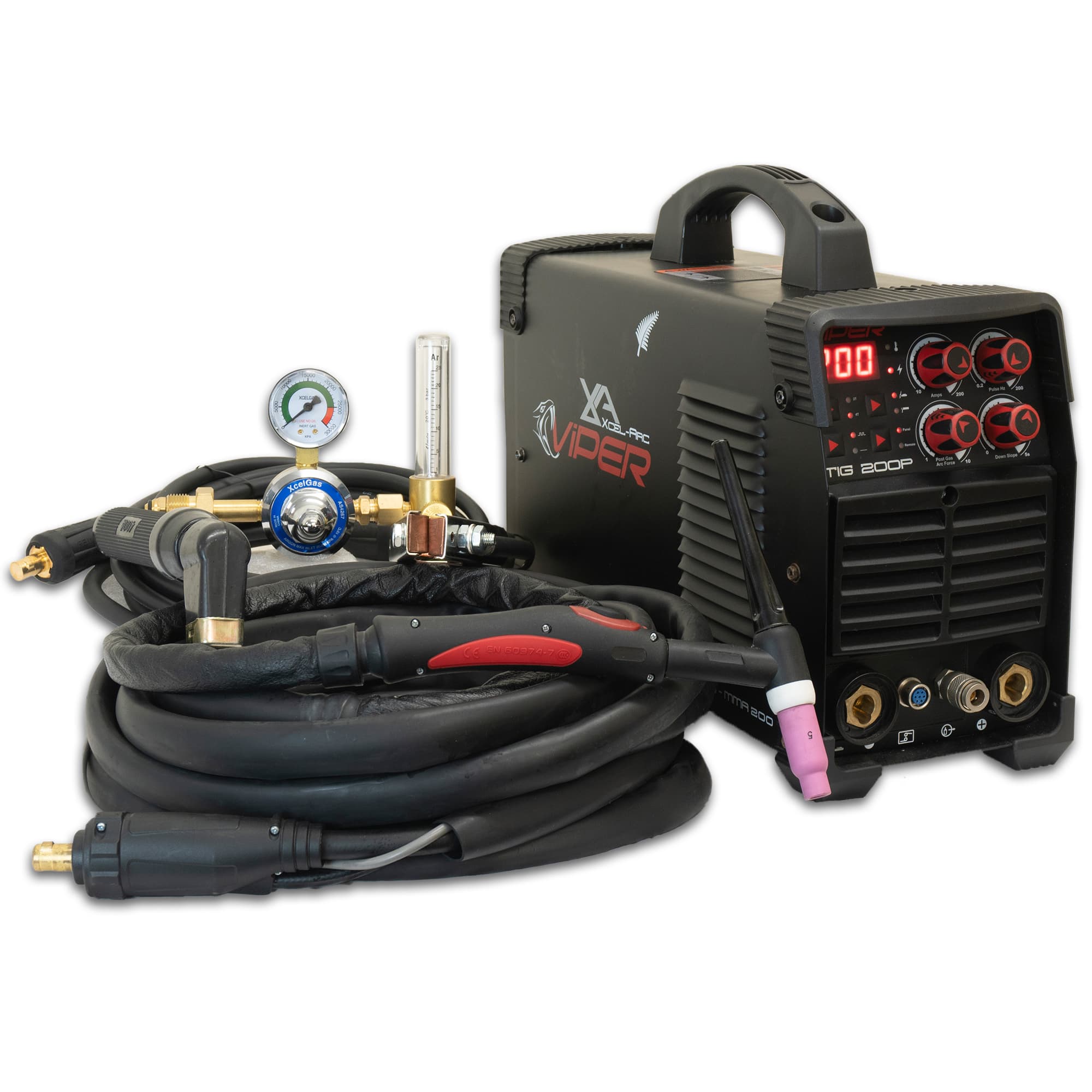

VIPER™ 200P DC TIG Welder
Find a storeVIPER™ 200P DC TIG Welder
15 AMP PLUG | H/F DC TIG
The VIPER™ TIG200P is an inverter-based DC-TIG welding machine with HF Arc Ignition and Pulse capability. Produced using the latest in IGBT technology, this low cost and portable machine is reliable, robust and stacked with functions you’d find in a professional DC TIG welder.
The HF Arc Ignition provides Pre-Gas and instant arc ignition with the press of the torch switch leaving no tungsten inclusion and no contamination of the tungsten electrode. The Down Slope & Post-Gas functions combined with the 2/4T trigger function allow you to control the start and finish of the weld process at a professional level.
XA-TIG200VP-K
15 AMP PLUG
Connect to a 15 AMP outlet.
DC HIGH FREQUENCY TIG
Contactless Arc Starting
PULSE FUNCTION
Minimise distortion on the welded material.
THERMAL OVERLOAD PROTECTION
PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.
HIGH-FREQUENCY TIG
PULSE FUNCTION
Product No: XA-TIG200VP-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 8.0
- Ieff (A)
- 15
- RATED OUTPUT
- 5-200A
- NO LOAD VOLTAGE (V)
- 75
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 10.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC HF TIG / DC Pulse
- TIG WELDING CURRENT RANGE
- 10-200A
- TIG DUTY CYCLE @ 40°C
- 30% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-8mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-160A
- STICK DUTY CYCLE @ 40°C
- 20% @ 160A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
- ARC FORCE
- 0-180
Size & Weight
- DIMENSIONS (mm)
- 420x116x330mm
- WEIGHT (kg)
- 7.5kg
MACHINE FEATURES
- VRD
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-TIG200VP-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 8.0
- Ieff (A)
- 15
- RATED OUTPUT
- 5-200A
- NO LOAD VOLTAGE (V)
- 75
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 10.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC HF TIG / DC Pulse
- TIG WELDING CURRENT RANGE
- 10-200A
- TIG DUTY CYCLE @ 40°C
- 30% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-8mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-160A
- STICK DUTY CYCLE @ 40°C
- 20% @ 160A
- STICK ELECTRODE RANGE
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE
- 2-12mm
- ARC FORCE
- 0-180
Size & Weight
- DIMENSIONS (mm)
- 420x116x330mm
- WEIGHT (kg)
- 7.5kg
MACHINE FEATURES
- VRD
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
