VIPER™ ARC 140 KIT
Find a storeVIPER™ ARC 140 KIT
10 AMP PLUG | MMA | DC-TIG
Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality Xcel-Arc is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG in case you needed another excuse to purchase.

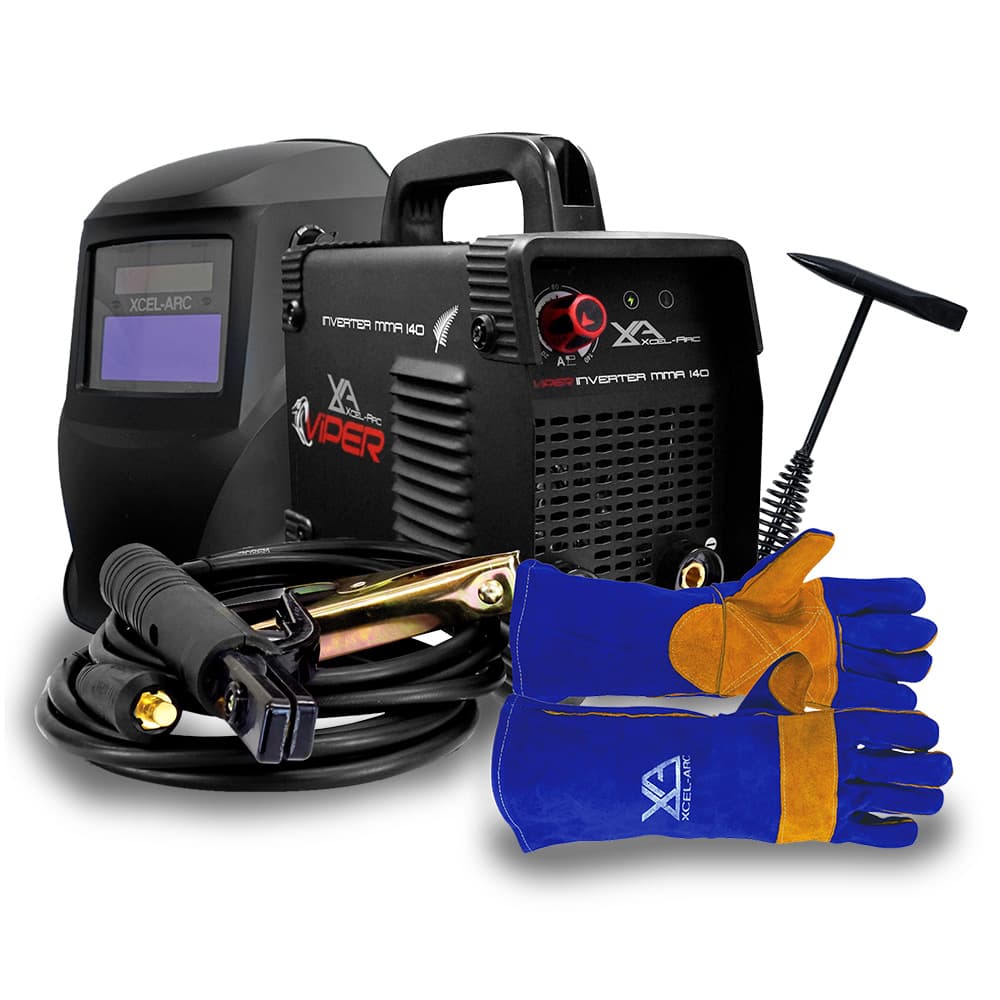

What’s inside

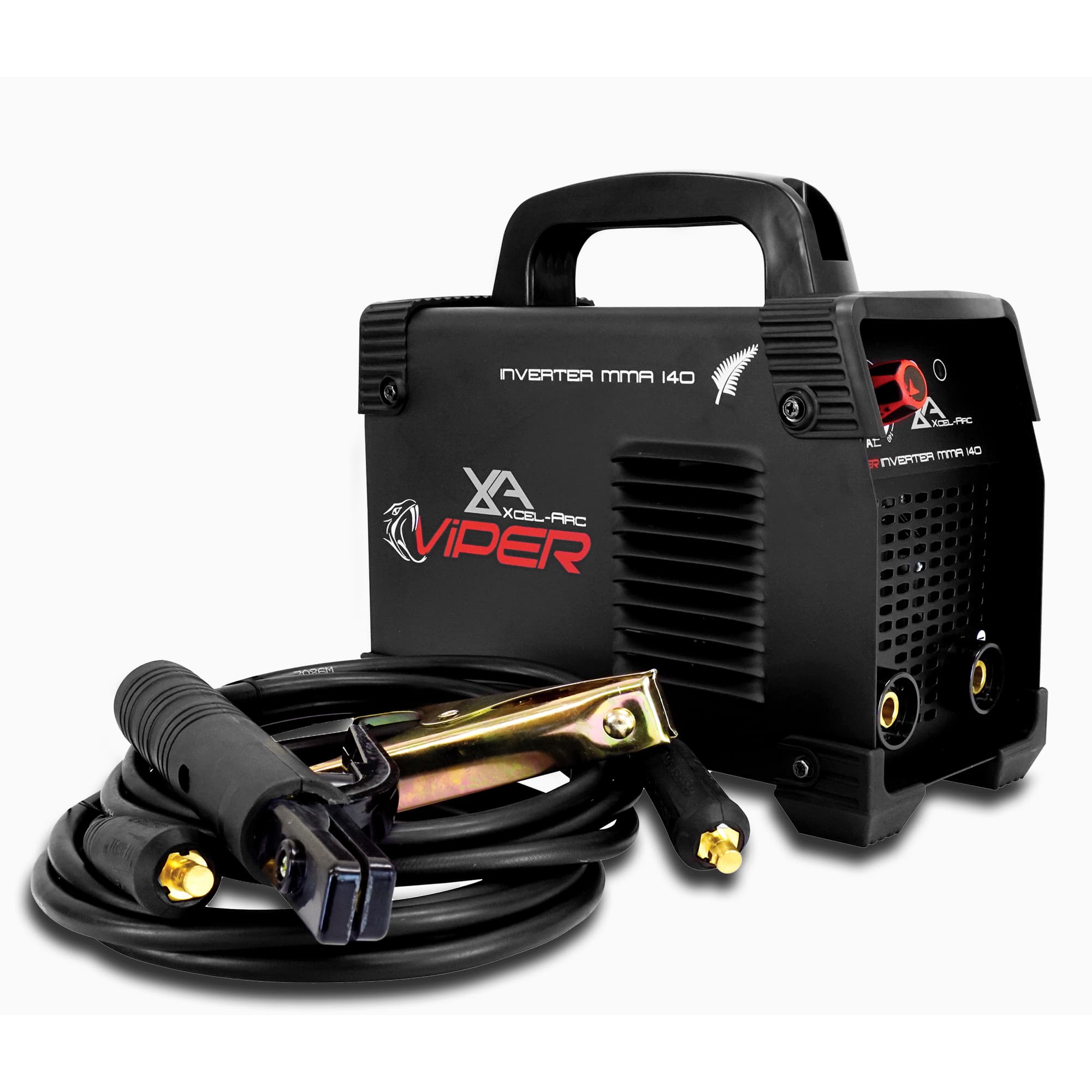

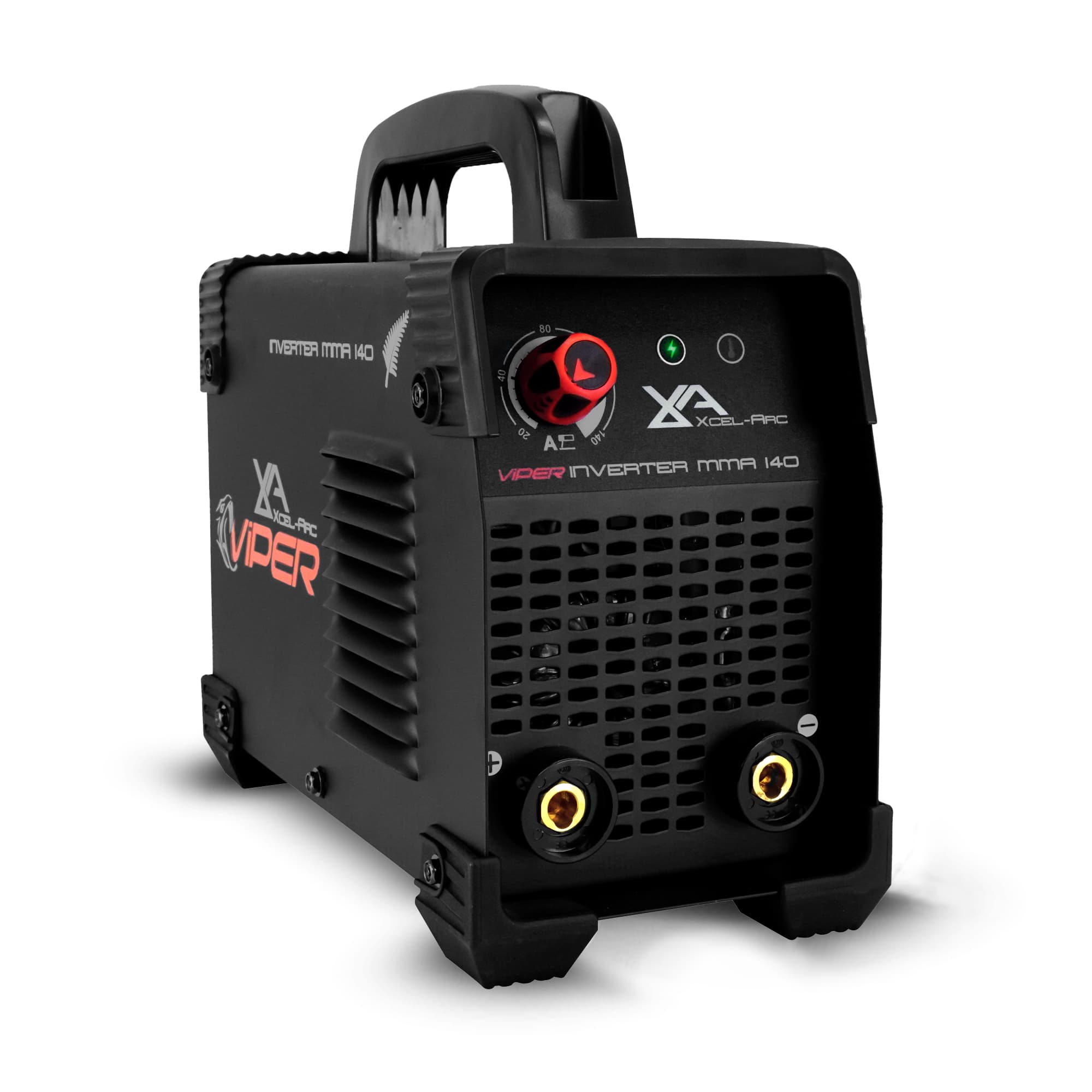

• VIPER ARC 140 STICK Welder
• 2.5m Electrode Holder & Lead
• 2.5m Earth Clamp & Lead
• Automatic Welding Helmet
• TRADESMAN Heavy Duty Welding Gloves
• Chipping Hammer
• Operating Manual
XA-VA140-BK
10 AMP PLUG
Connect to any standard outlet.
DC SCRATCH START TIG
Basic TIG functionality.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.
READY TO WELD
MMA | DC-TIG
10 AMP PLUG
Product No: XA-VA140-BK
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 6.5
- Ieff (A)
- 10.0
- RATED OUTPUT
- 10-140A
- NO LOAD VOLTAGE (V)
- 62.9
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.65
- MINIMUM GENERATOR (kVA)
- 6.5
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Cast Iron
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Scratch Start
- TIG WELDING THICKNESS RANGE
- 1-3mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 15% @ 140A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 295x135x270mm
- WEIGHT (kg)
- 3.8kg
Product No: XA-VA140-BK
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 6.5
- Ieff (A)
- 10.0
- RATED OUTPUT
- 10-140A
- NO LOAD VOLTAGE (V)
- 62.9
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.65
- MINIMUM GENERATOR (kVA)
- 6.5
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Cast Iron
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Scratch Start
- TIG WELDING THICKNESS RANGE
- 1-3mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-140A
- STICK DUTY CYCLE @ 40°C
- 15% @ 140A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 295x135x270mm
- WEIGHT (kg)
- 3.8kg
