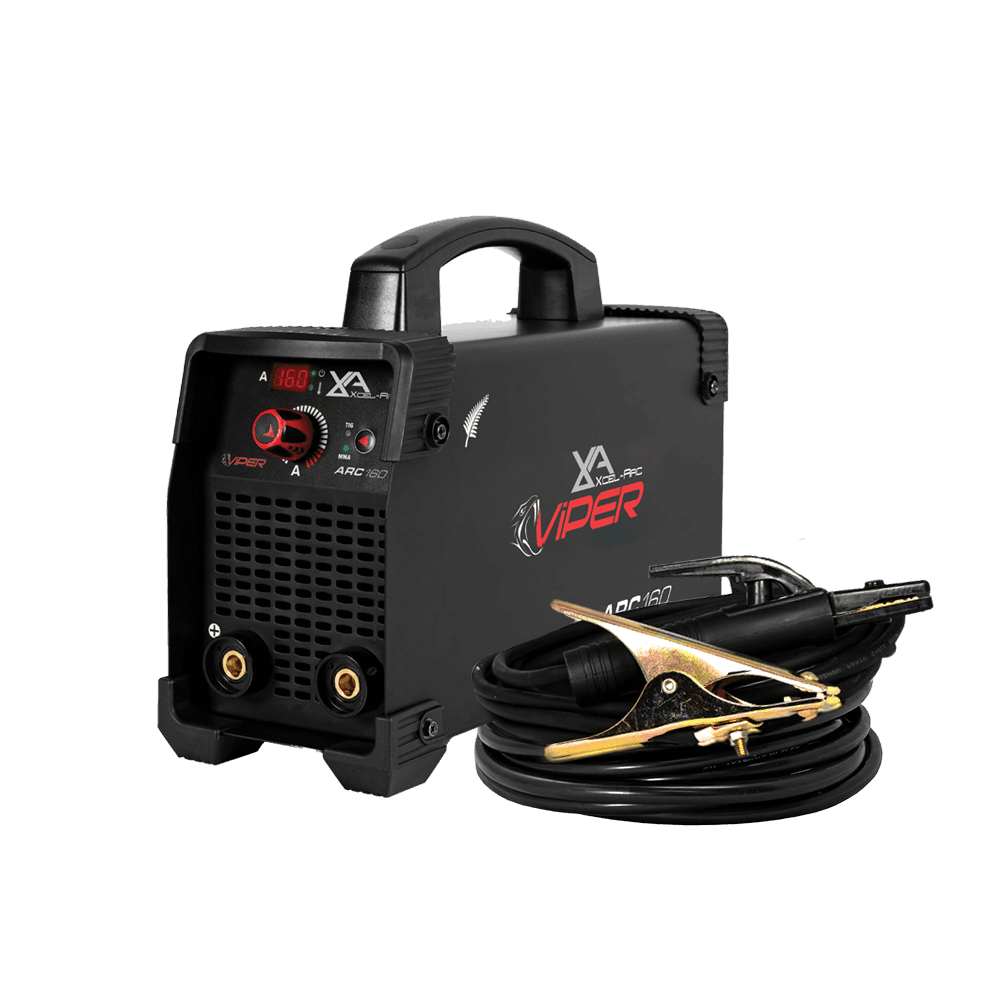

VIPER™ ARC 160 STICK Welder
Find a storeVIPER™ ARC 160 STICK Welder
15 AMP PLUG | MMA | DC-TIG
Don’t let the pros have all the fun. The VIPER™ ARC 160 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality Xcel-Arc is recognised for throughout the industry. The VIPER™ ARC 160 also features DC Scratch Start TIG in case you needed another excuse to purchase.
XA-VA160
15 AMP PLUG
CONNECT TO 15 AMP OUTLET.
DC SCRATCH START TIG
Basic TIG functionality.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.
READY TO WELD
MMA | DC-TIG
Product No: XA-VA160
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 8.0
- Ieff (A)
- 12.5
- RATED OUTPUT
- 10-160A
- NO LOAD VOLTAGE (V)
- 62.9
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.63
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Cast Iron
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Scratch Start
- TIG WELDING THICKNESS RANGE
- 1-3mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-160A
- STICK DUTY CYCLE @ 40°C
- 15% @ 160A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 295x135x270mm
- WEIGHT (kg)
- 4.0 kg
Product No: XA-VA160
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 AMP
- RATED INPUT POWER (kVA)
- 8.0
- Ieff (A)
- 12.5
- RATED OUTPUT
- 10-160A
- NO LOAD VOLTAGE (V)
- 62.9
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.63
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Copper, Cast Iron
- WARRANTY (Years)
- 1
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- DC Scratch Start
- TIG WELDING THICKNESS RANGE
- 1-3mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 20-160A
- STICK DUTY CYCLE @ 40°C
- 15% @ 160A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
Size & Weight
- DIMENSIONS (mm)
- 295x135x270mm
- WEIGHT (kg)
- 4.0 kg
