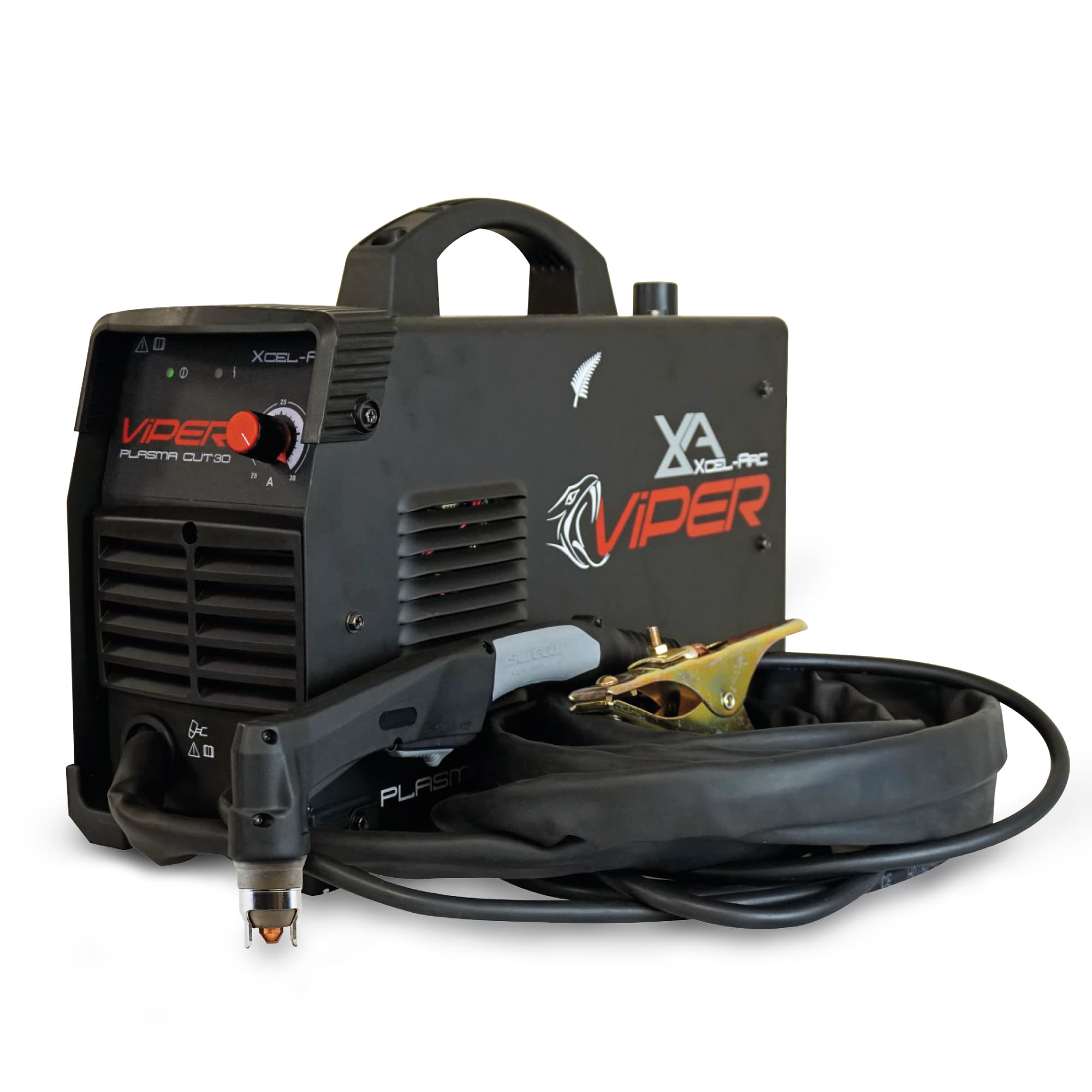

VIPER™ CUT 30 Plasma Cutter
Find a storeVIPER™ CUT 30 Plasma Cutter
This product has been discontinued
It’s no longer available to purchase. Enquire and we’ll help you find a current alternative.
XA-CUT30V
10 AMP PLUG
XA VIPER™ CUT 30 Plasma Cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.
XA-CUT30V-K
10 AMP PLUG
Connect to any standard outlet.
10mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
Product No: XA-CUT30V-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 7.5
- Ieff (A)
- 10
- RATED OUTPUT
- 92V
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 1
Size & Weight
- DIMENSIONS (mm)
- 534x166x343mm
- WEIGHT (kg)
- 8.5kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-30A
- PLASMA CUT DUTY CYCLE @ 40°C
- 15% @ 30A
- MILD STEEL CUT THICKNESS
- 10mm
- MILD STEEL SEVERANCE THICKNESS
- 12mm
- ALUMINIUM CUT THICKNESS
- 6mm
- ALUMINIUM SEVERANCE THICKNESS
- 8mm
- STAINLESS STEEL CUT THICKNESS
- 6mm
- STAINLESS STEEL SEVERANCE THICKNESS
- 8mm
- AIR FLOW DRAW OFF (L/min)
- 170
- AIR FLOW PRESSURE (Bar)
- 5-6 (70-87 psi)
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-CUT30V-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 7.5
- Ieff (A)
- 10
- RATED OUTPUT
- 92V
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- MINIMUM GENERATOR (kVA)
- 8.0
- DINSE CONNECTOR
- 10/25
- STANDARD
- AS/NZ60974-1
- WARRANTY (Years)
- 1
Size & Weight
- DIMENSIONS (mm)
- 534x166x343mm
- WEIGHT (kg)
- 8.5kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE
- 20-30A
- PLASMA CUT DUTY CYCLE @ 40°C
- 15% @ 30A
- MILD STEEL CUT THICKNESS
- 10mm
- MILD STEEL SEVERANCE THICKNESS
- 12mm
- ALUMINIUM CUT THICKNESS
- 6mm
- ALUMINIUM SEVERANCE THICKNESS
- 8mm
- STAINLESS STEEL CUT THICKNESS
- 6mm
- STAINLESS STEEL SEVERANCE THICKNESS
- 8mm
- AIR FLOW DRAW OFF (L/min)
- 170
- AIR FLOW PRESSURE (Bar)
- 5-6 (70-87 psi)
- PLASMA ARC START
- Pilot Arc
MACHINE FEATURES
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
