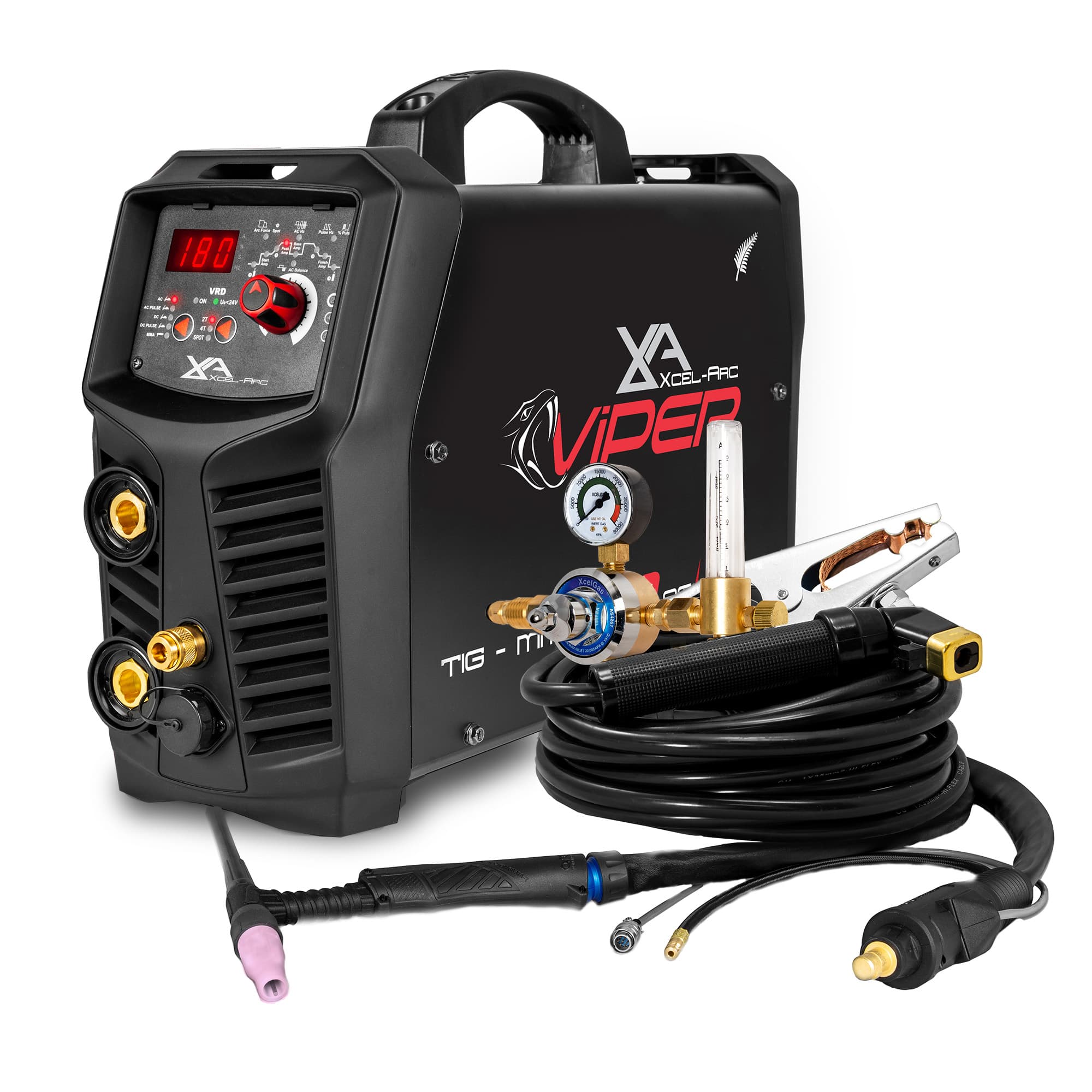

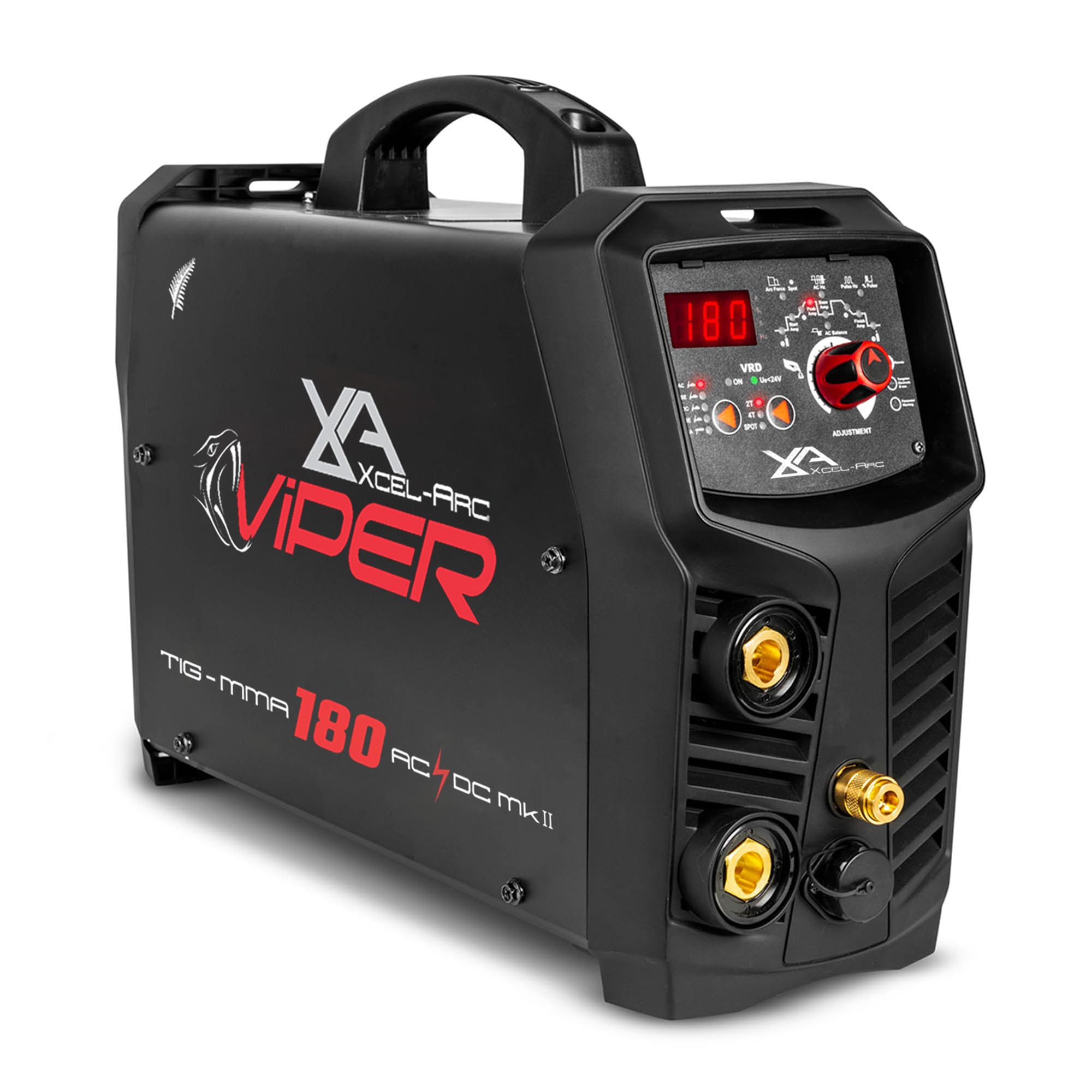

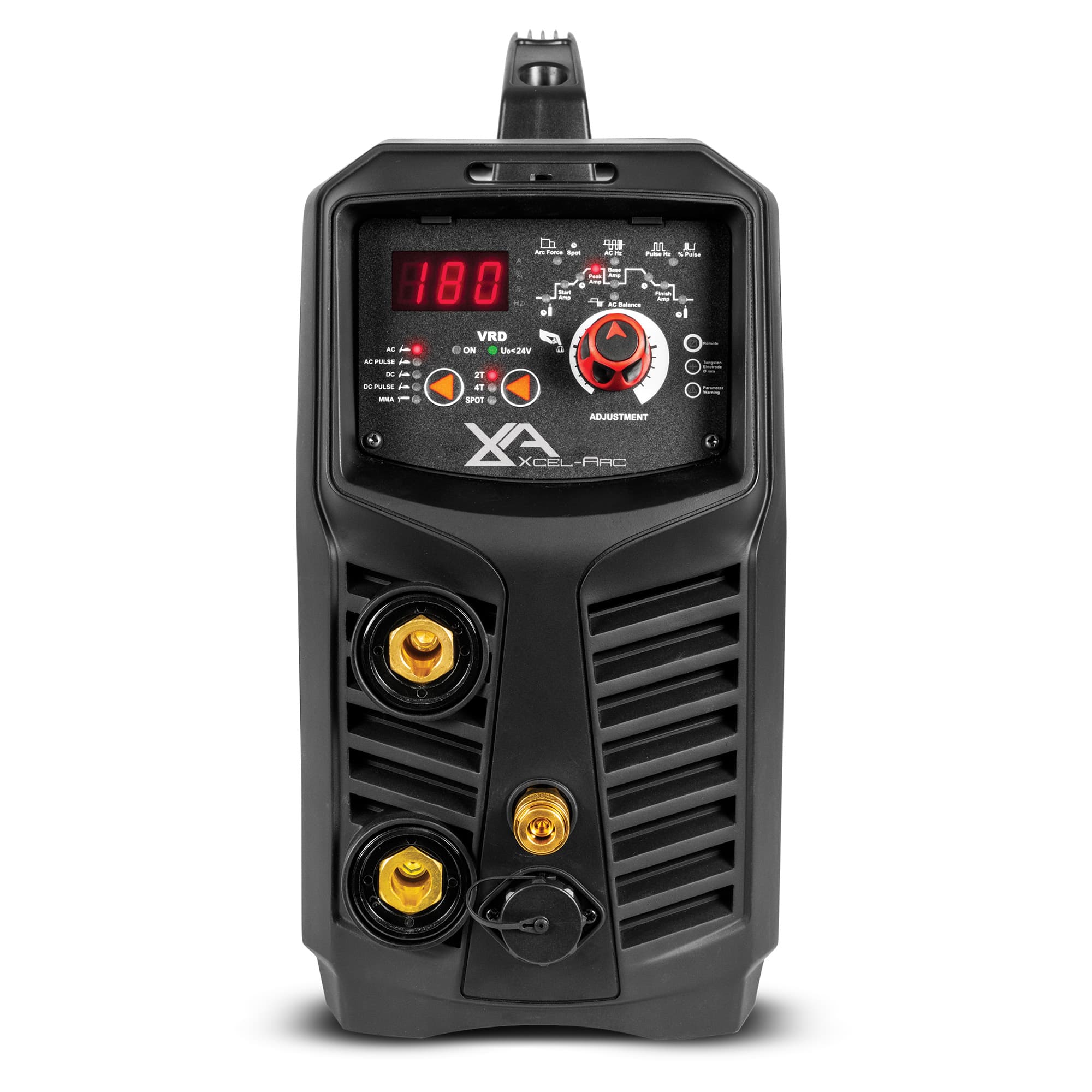

VIPER™ TIG180 AC/DC MKII TIG Welder
Find a storeVIPER™ TIG180 AC/DC MKII TIG Welder
10 AMP PLUG | H/F AC/DC TIG | REMOTE AMPERAGE CAPABLE
The VIPER™ 180 AC/DC MK II TIG & STICK Welder was made for the handyman who wants both AC and DC TIG welding at a good price. Fitted with your standard 10 AMP plug, it makes itself at home in any workshop. This updated MK II Version is both smaller and lighter over its predecessor.
The VIPER™ 180 AC/DC allows for full control over the High-Frequency TIG welding process to ensure you can maximise your results from start to finish. Controllable parameters include Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time, among many others.
The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the VIPER™ 180 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.
With all of these features packed into an affordable package, the VIPER™ 180 AC/DC is a must-have for any DIY TIG enthusiast.
XA-TIG180VACDCMK2-T2
10 AMP PLUG
Connect to any standard outlet.
AC/DC HIGH FREQUENCY TIG
Perfect for Aluminium.
PULSE FUNCTION
Minimise distortion on the welded material.
FOOT CONTROL READY
Extra versatility and convenience.
AC/DC HIGH-FREQUENCY TIG
PULSE TIG FUNCTION
10 AMP PLUG
FOOT CONTROL READY
Product No: XA-TIG180VACDCMK2-T2
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 5.20
- Ieff (A)
- 8.9
- RATED OUTPUT
- 5-180A
- NO LOAD VOLTAGE (V)
- 7-55
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 9.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
- WARRANTY (Years)
- 2
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG / AC/DC Pulse
- TIG WELDING CURRENT RANGE
- 5-180A
- TIG DUTY CYCLE @ 40°C
- 15% @ 180A
- TIG WELDING THICKNESS RANGE
- 1-8mm
AC/DC TIG SETTINGS
- PRE GAS
- 0.1-3.0s
- START AMP
- 5-180A
- UP SLOPE
- 0-10s
- PEAK AMP
- 5-180A
- AC SQUARE WAVE
- 20-250Hz
- AC BALANCE CONTROL
- ±10
- DOWN SLOPE
- 0-15s
- FINISH AMP
- 5-180A
- POST GAS
- 0.5-15.0s
- PULSE FREQUENCY
- 0.2-200Hz
- PULSE WIDTH
- 10-90%
- SPOT
- 0.5-10s
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-130A
- STICK DUTY CYCLE @ 40°C
- 15% @ 130A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
- ARC FORCE
- 0-40
Size & Weight
- DIMENSIONS (mm)
- 480*166*344mm
- WEIGHT (kg)
- 11kg
MACHINE FEATURES
- VRD
- Yes
- FOOT CONTROL CONNECTION
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
Product No: XA-TIG180VACDCMK2-T2
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 10 AMP
- RATED INPUT POWER (kVA)
- 5.20
- Ieff (A)
- 8.9
- RATED OUTPUT
- 5-180A
- NO LOAD VOLTAGE (V)
- 7-55
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- F
- POWER FACTOR
- 0.7
- MINIMUM GENERATOR (kVA)
- 9.0
- DINSE CONNECTOR
- 35/50
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
- WARRANTY (Years)
- 2
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG / AC/DC Pulse
- TIG WELDING CURRENT RANGE
- 5-180A
- TIG DUTY CYCLE @ 40°C
- 15% @ 180A
- TIG WELDING THICKNESS RANGE
- 1-8mm
AC/DC TIG SETTINGS
- PRE GAS
- 0.1-3.0s
- START AMP
- 5-180A
- UP SLOPE
- 0-10s
- PEAK AMP
- 5-180A
- AC SQUARE WAVE
- 20-250Hz
- AC BALANCE CONTROL
- ±10
- DOWN SLOPE
- 0-15s
- FINISH AMP
- 5-180A
- POST GAS
- 0.5-15.0s
- PULSE FREQUENCY
- 0.2-200Hz
- PULSE WIDTH
- 10-90%
- SPOT
- 0.5-10s
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10-130A
- STICK DUTY CYCLE @ 40°C
- 15% @ 130A
- STICK ELECTRODE RANGE
- 2.5-3.2mm
- STICK WELDING THICKNESS RANGE
- 2-8mm
- ARC FORCE
- 0-40
Size & Weight
- DIMENSIONS (mm)
- 480*166*344mm
- WEIGHT (kg)
- 11kg
MACHINE FEATURES
- VRD
- Yes
- FOOT CONTROL CONNECTION
- Yes
- THERMAL OVERLOAD PROTECTION
- Over Temperature Warning
