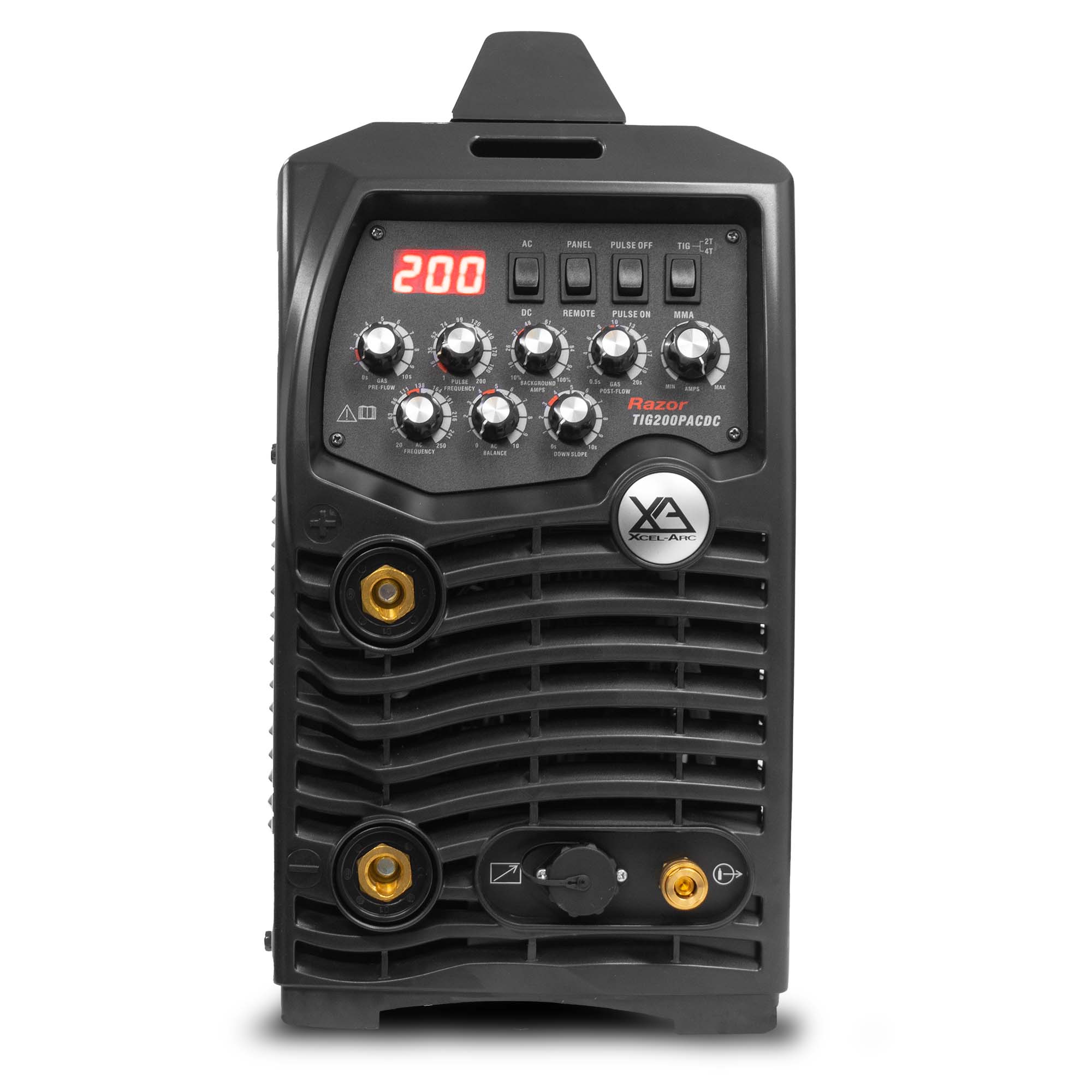

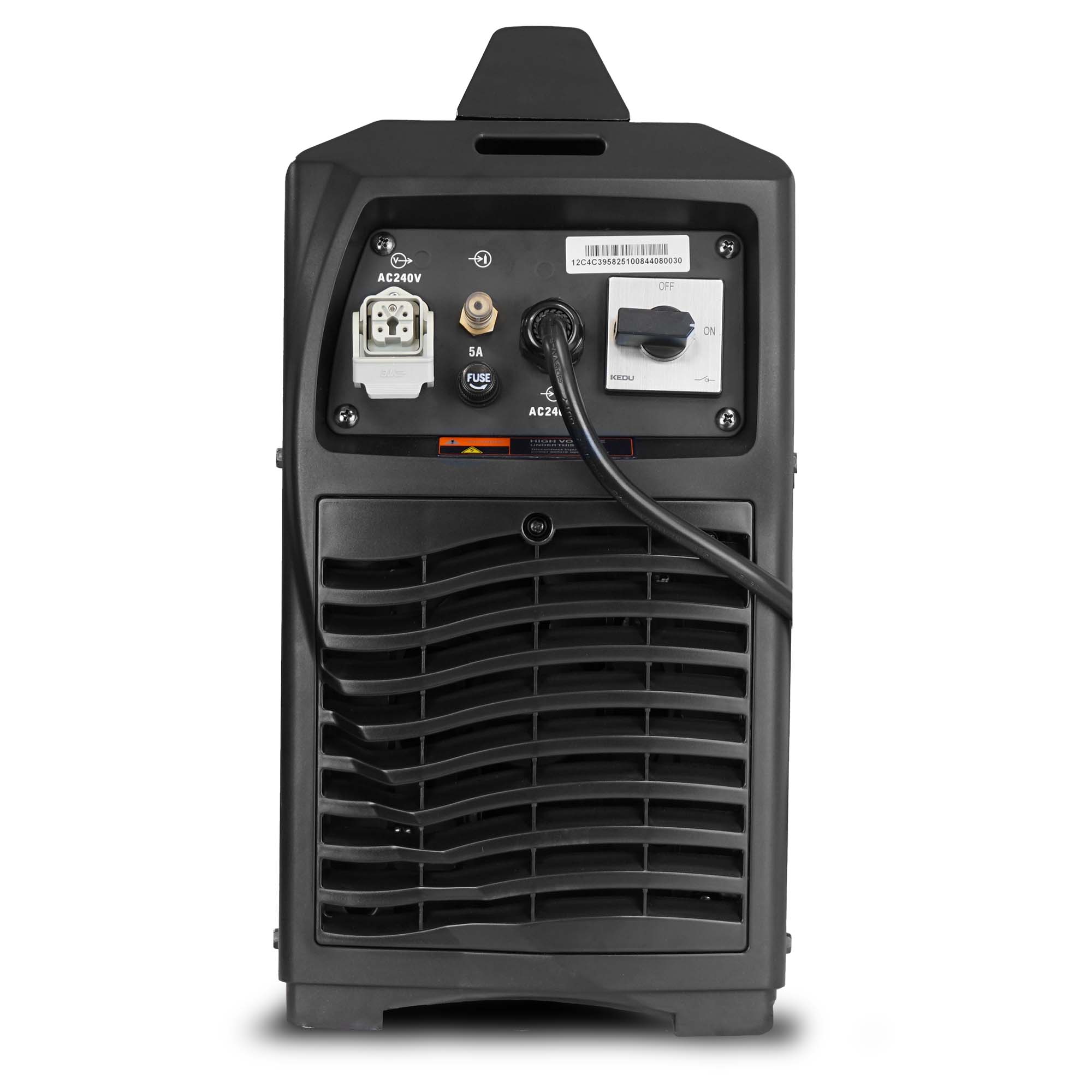

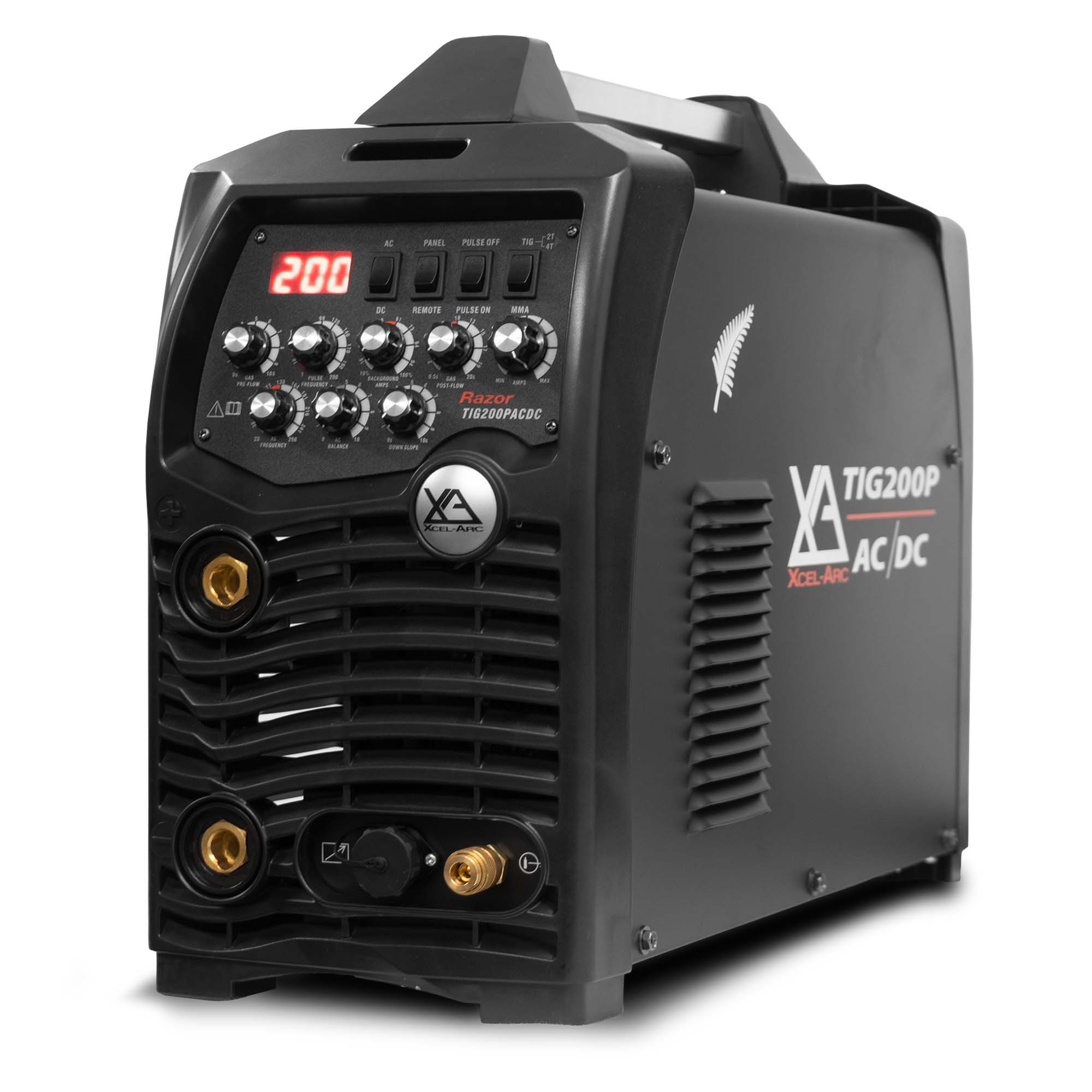

XCEL-ARC™ TIG200RZ AC/DC TIG WELDER
Find a storeXCEL-ARC™ TIG200RZ AC/DC TIG WELDER
PERFECT FOR ALUMINIUM | WATER COOLER READY
The Xcel-Arc TIG200RZ is a high-quality inverter AC/DC TIG welding machine with added MMA (stick electrode) function. Produced using tried and tested IGBT inverter technology, this machine is highly reliable, robust and stacked with all the features that you would expect from an industrial welding machine. The TIG function incorporates Square Wave AC with adjustable AC Balance, making this an ideal choice for anyone wanting to TIG weld aluminium alloys with professional results. The HF Arc Ignition provides easy starting leaving no tungsten inclusion or contamination of the tungsten electrode. The adjustable Down Slope and Post-Gas combined with the 2/4T trigger function give you the flexibility to control the start and finish of the welding process at a professional level.
Designed and built to our specification and manufactured in compliance to AS/NZ60974-1.
XA-TIG200RZ ACDC-K
15 AMP PLUG
CONNECT TO A 15 AMP OUTLET

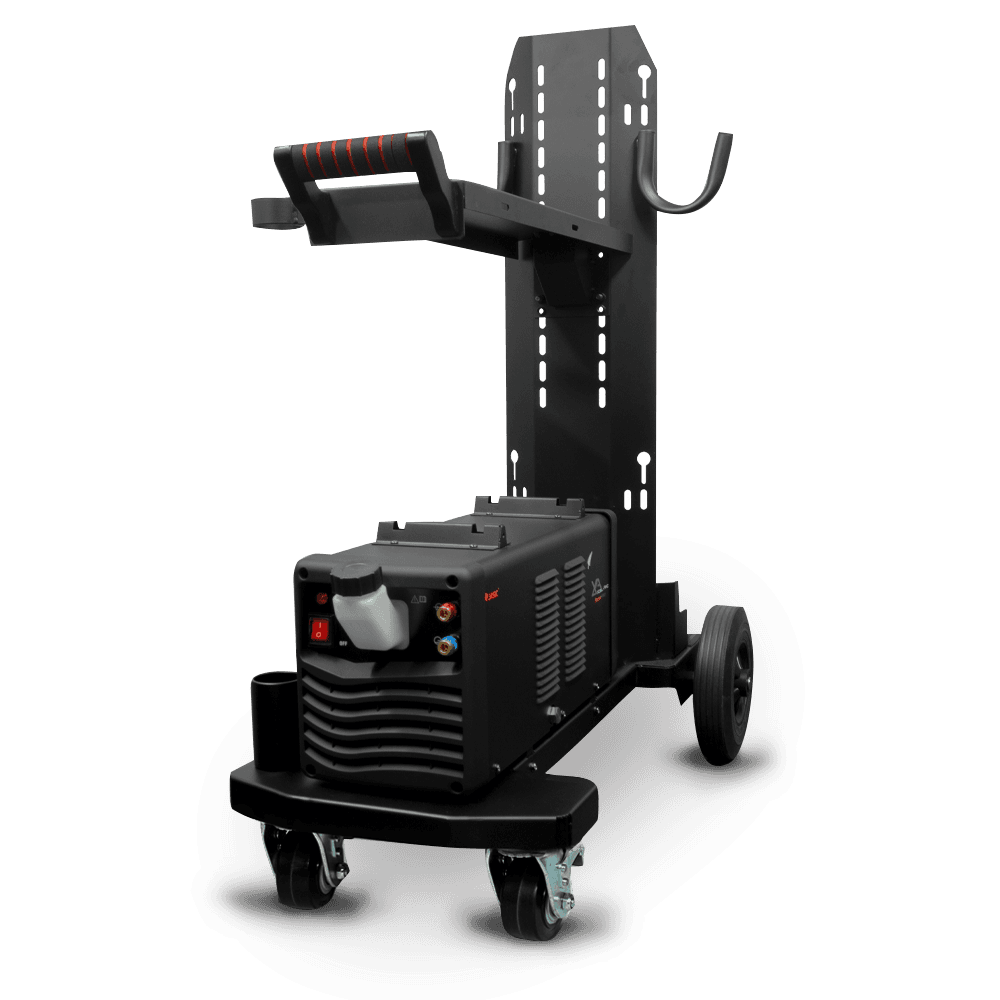

WATER COOLER READY
EXTRA POWER AND PERFORMANCE
AC/DC HF TIG
PERFECT FOR ALUMINIUM
FOOT CONTROL READY
EXTRA VERSATILITY AND CONVENIENCE
Product No: XA-TIG200RZ ACDC-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 Amps
- RATED INPUT POWER (kVA)
- 6.9
- Ieff (A)
- 15
- RATED OUTPUT
- 10~160A/26.8V | 10~200A/17.4A
- NO LOAD VOLTAGE (V)
- 65
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- B
- POWER FACTOR
- 0.7
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Aluminium, Magnesium, Steel, Stainless Steel, Cast Iron, Bronze, Copper, Zinc Alloys
- WARRANTY (Years)
- 3
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG
- TIG WELDING CURRENT RANGE
- 10~200A
- TIG DUTY CYCLE @ 40°C
- 25% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10~160A
- STICK DUTY CYCLE @ 40°C
- 30% @ 160A
- STICK WELDING THICKNESS RANGE
- 2-7mm
Size & Weight
- DIMENSIONS (mm)
- 566x224x405
- WEIGHT (kg)
- 15
Product No: XA-TIG200RZ ACDC-K
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE
- 240V Single Phase
- SUPPLY PLUG
- 15 Amps
- RATED INPUT POWER (kVA)
- 6.9
- Ieff (A)
- 15
- RATED OUTPUT
- 10~160A/26.8V | 10~200A/17.4A
- NO LOAD VOLTAGE (V)
- 65
- PROTECTION CLASS
- IP21S
- INSULATION CLASS
- B
- POWER FACTOR
- 0.7
- STANDARD
- AS/NZ60974-1
- SUITABLE MATERIAL
- Aluminium, Magnesium, Steel, Stainless Steel, Cast Iron, Bronze, Copper, Zinc Alloys
- WARRANTY (Years)
- 3
TIG SPECIFICATIONS
- TIG FUNCTION TYPE
- AC/DC HF TIG
- TIG WELDING CURRENT RANGE
- 10~200A
- TIG DUTY CYCLE @ 40°C
- 25% @ 200A
- TIG WELDING THICKNESS RANGE
- 1-6mm
STICK SPECIFICATIONS
- STICK WELDING CURRENT RANGE
- 10~160A
- STICK DUTY CYCLE @ 40°C
- 30% @ 160A
- STICK WELDING THICKNESS RANGE
- 2-7mm
Size & Weight
- DIMENSIONS (mm)
- 566x224x405
- WEIGHT (kg)
- 15
