XA-ARC630RZ-K

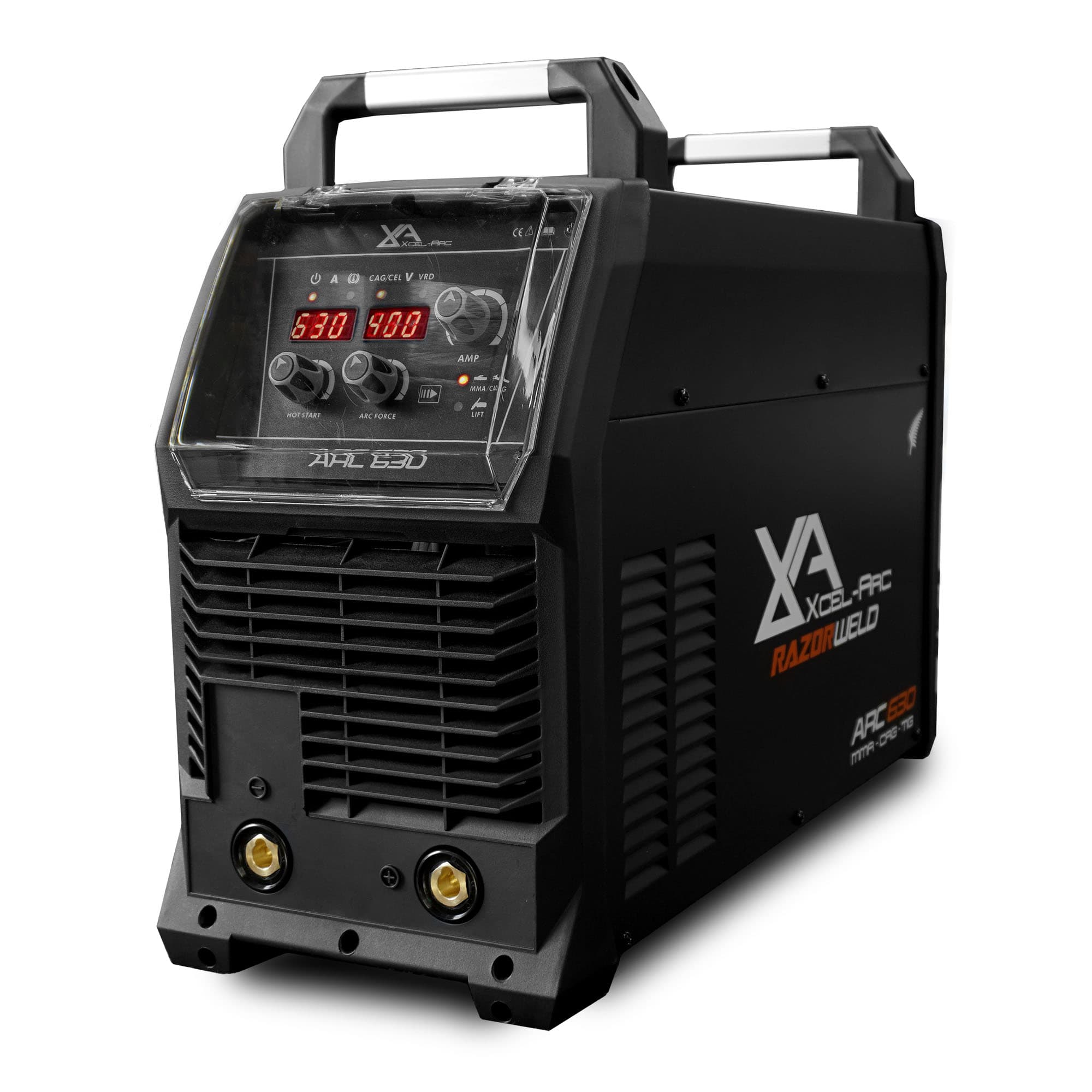

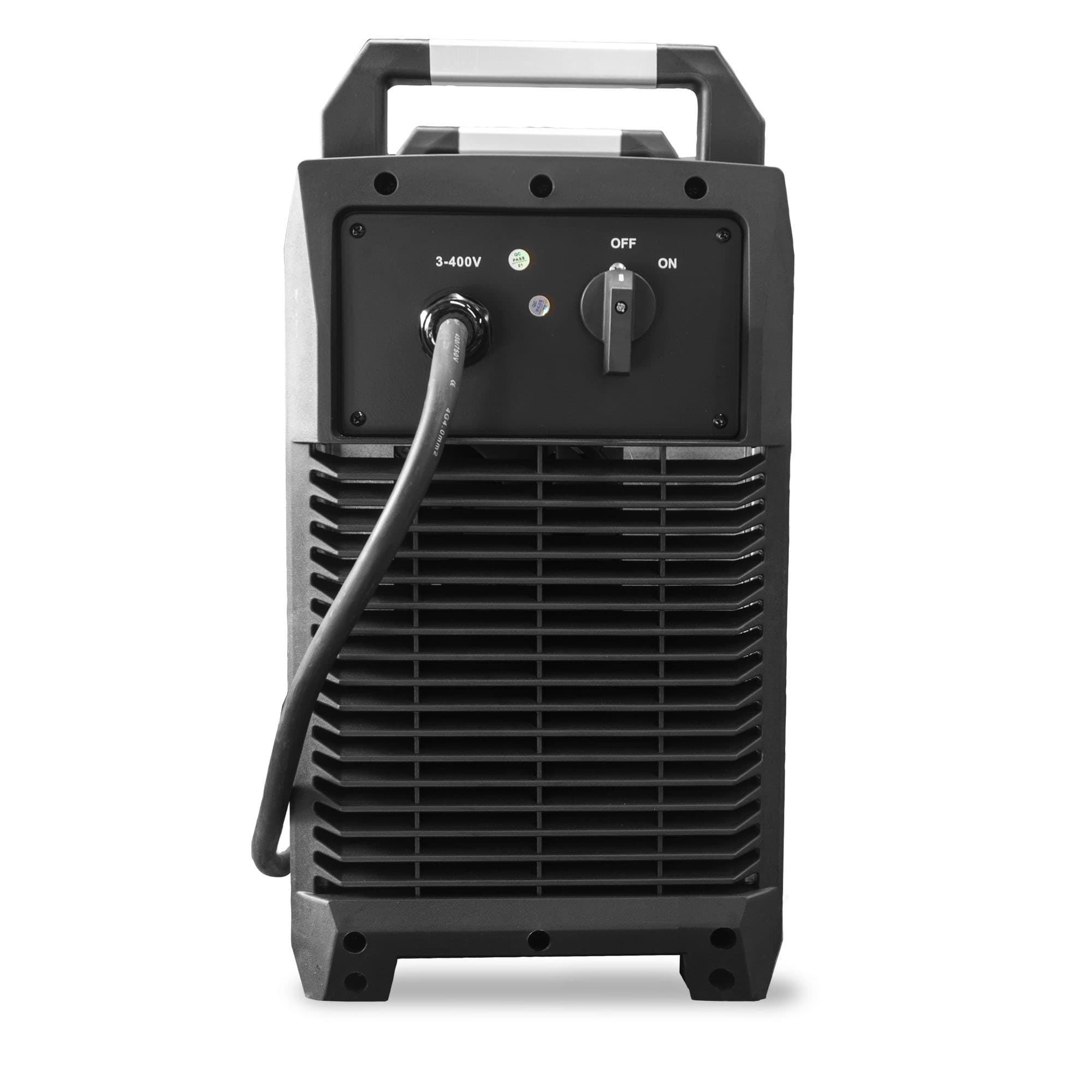

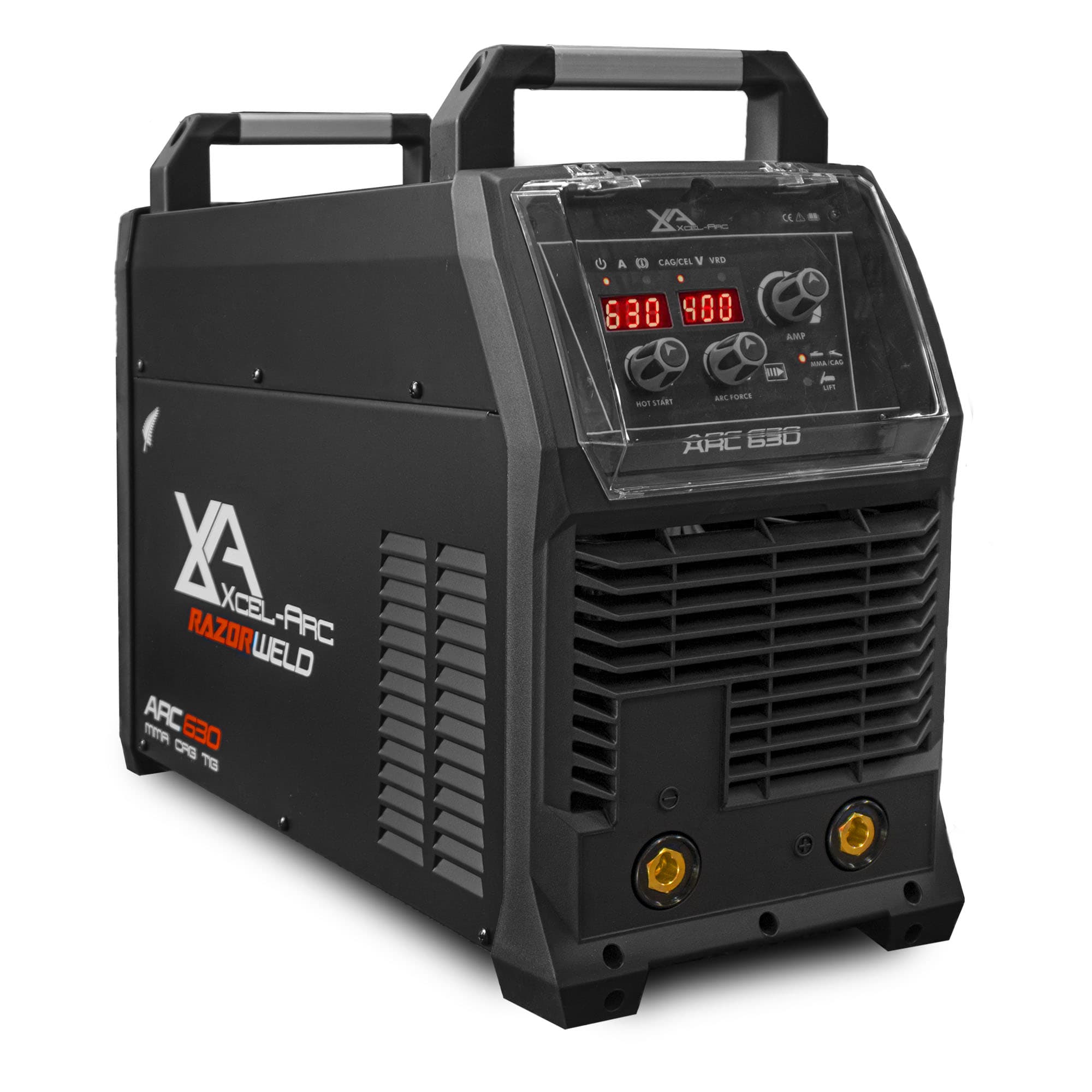

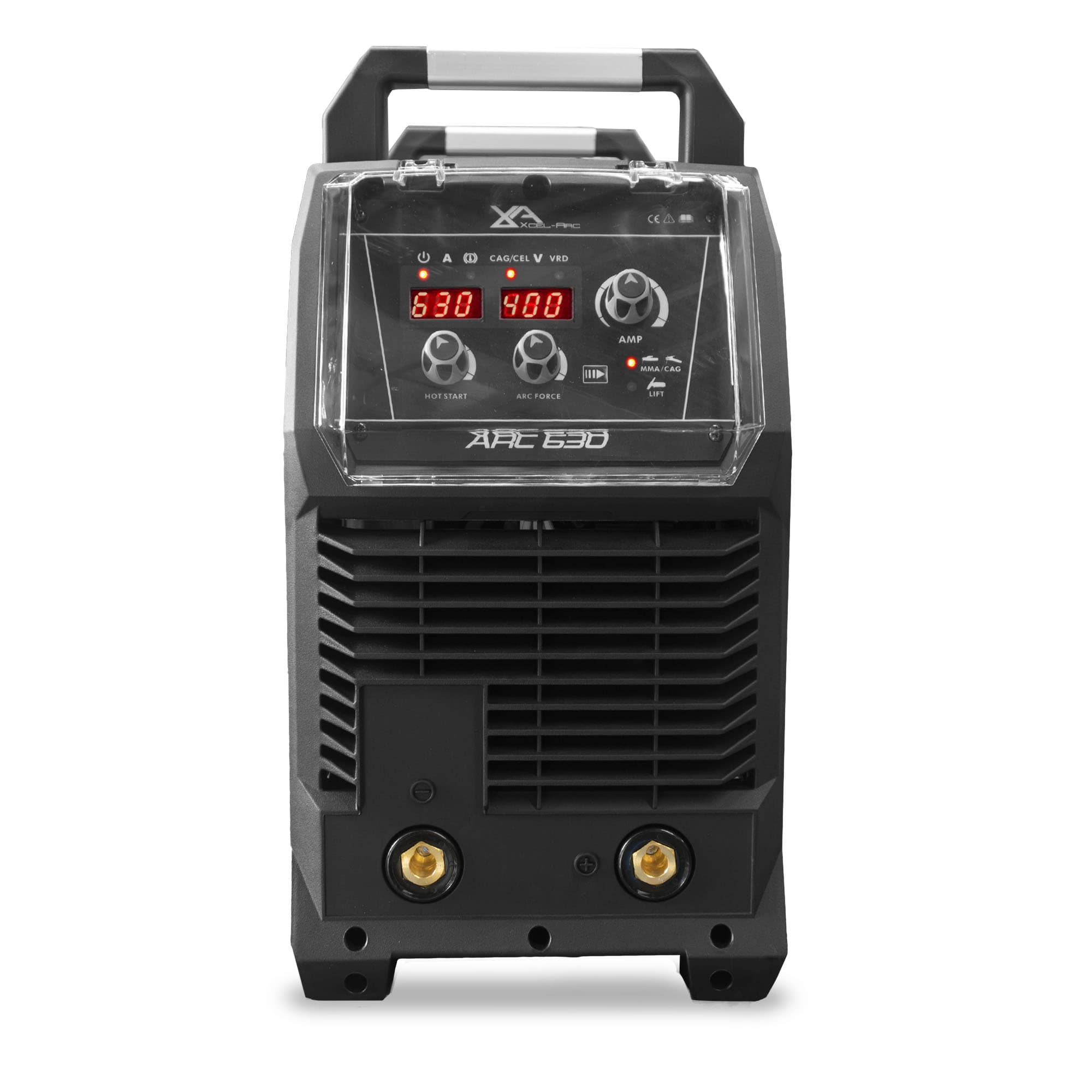

RAZORWELD™ ARC 630 MMA/CAG/TIG Welder

Introducing the RazorWeld ARC630RZ inverter welding machine, a high-quality and reliable option for professionals and contractors alike. With its primary function of DC-MMA (Stick) welding and optional DC-TIG capabilities with Lift-Arc Ignition, this advanced welding machine utilizes the latest generation MCU control system for exceptional arc characteristics and high reliability. It is sturdy and portable, making it perfect for on-site work, and the Carbon Arc Gouging feature is a new addition, ideal for weld removal, crack removal, back gouging, and weld defect repairs for various materials.

The ARC630RZ is suitable for a wide range of applications, including medium to heavy industrial use, site welding, farming, and general repair and maintenance work, and complies with AS/NZ60974-1 manufacturing standards. Choose the RazorWeld ARC630RZ for superior performance, reliability, and portability for all your welding needs.

XA-ARC630RZ-K

FIND A STORE

ADD TO WISHLIST

Selectable On/Off VRD

Voltage Reduction Device

DC LIFT ARC TIG

TIG welding functionality.

Arc Air Gouging Mode

with High OCV

THERMAL OVERLOAD PROTECTION

Prevents machine from exceeding a safe operating temperature.

Product No: XA-ARC630RZ-K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Single Phase

SUPPLY PLUG

32 AMP

Ieff (A)

MMA-31 / TIG-31.6

RATED OUTPUT

20-630A

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP21S

INSULATION CLASS

POWER FACTOR

0.7

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-630A

TIG DUTY CYCLE @ 40°C

40% @ 630A

TIG WELDING THICKNESS RANGE

1-3.2mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-630A

STICK DUTY CYCLE @ 40°C

25% @ 630A

STICK ELECTRODE RANGE

2.5-5.0mm

STICK WELDING THICKNESS RANGE

1-8mm

Size & Weight

DIMENSIONS (mm)

550x240x445mm

WEIGHT (kg)

33.5kg

MACHINE FEATURES

VRD

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

AIR ARC GOUGING

Yes

RAZORWELD™ ARC 630RZ Welder
Operating Manual

Here you’ll find the latest manuals, guides & product/parts information.

RAZORWELD ARC 630 Info Sheet

RAZORWELD ARC 630 Manual

Xcel-Arc is pleased to offer a 3-year warranty on all RAZORWELD™ Machines*.

Xcel-Arc offers warranty across New Zealand with our main Xcel-Arc service centre centrally based in Palmerston North. We also have authorised service centres across New Zealand as well. Xcel-Arc’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

Xcel-Arc also offers an additional 6 months warranty free of charge when you register your product online via the Xcel-Arc website.

*Please note warranty only applies to the power source only
